1A-111 Engine General Information and Diagnosis:
4) Click each button (2). At this time, if an operating sound is heard from the PAIR control solenoid valve, the function
is normal.

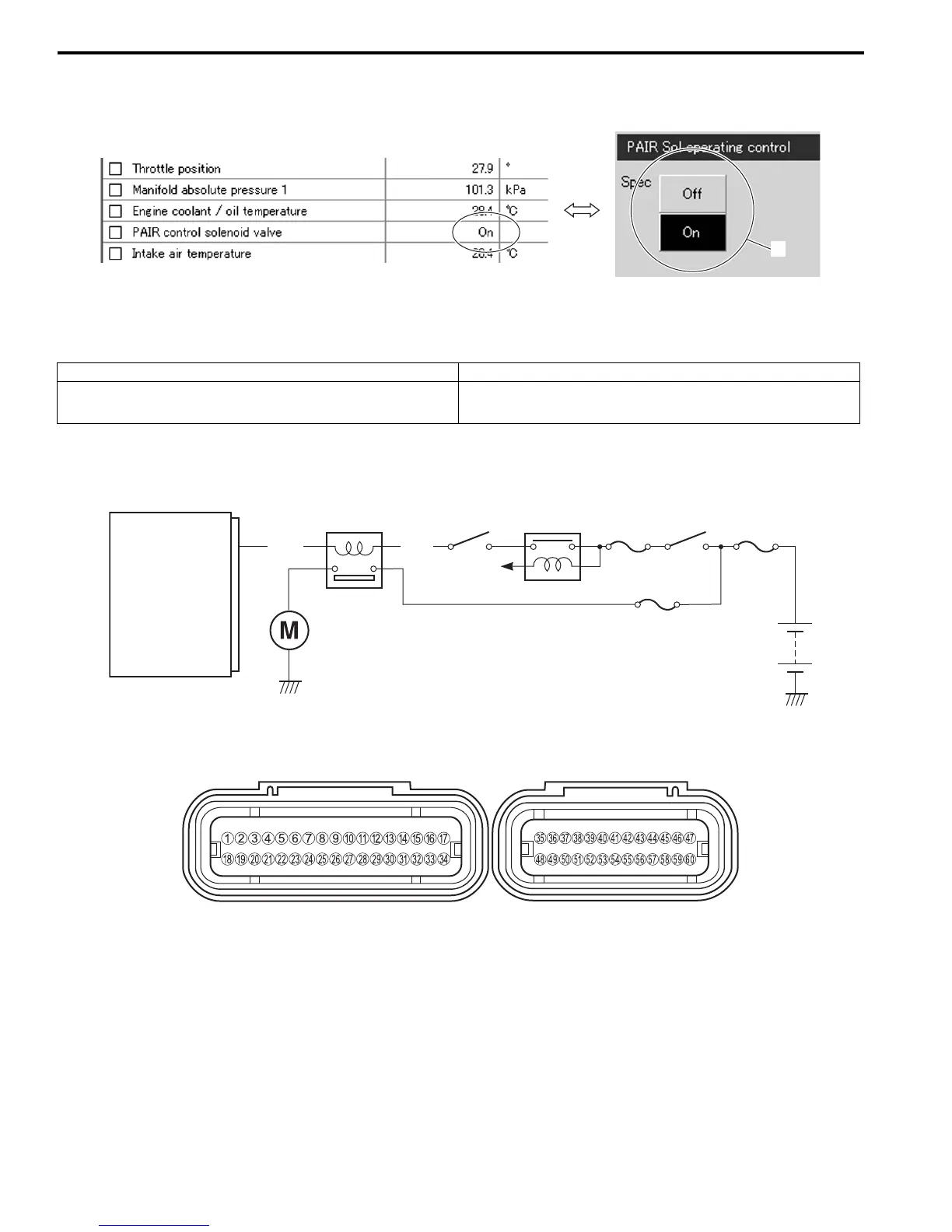

DTC “C60” (P0480): Cooling Fan Relay Circuit Malfunction
B718H11104029
Detected Condition and Possible Cause
Wiring Diagram
ECM coupler (Harness side)
2
I718H1110236-01
Detected Condition Possible Cause
Cooling fan relay signal is not input to ECM. • Cooling fan relay circuit open or short.
• ECM malfunction.
ECM
FAR
O/R
Cooling fan
relay
Cooling fan motor
O/W
Engine
stop
switch
Side-stand
relay
Ignition
switch
To side-stand
switch
15
I718H1110125-03
I718H1110240-01

Suzuki GSF1250 Specifications

General

Displacement	1255 cc
Bore x Stroke	79.0 mm x 64.0 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Transmission	6-speed, constant mesh
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	180/55ZR17M/C (73W), tubeless
Overall Length	2130 mm
Overall Width	790 mm
Seat Height	805 mm
Wheelbase	1485 mm
Fuel Tank Capacity	19.0 L
Starter	Electric
Final Drive	Chain
Ignition	Electronic ignition (transistorized)
Engine Type	4-stroke, liquid-cooled, DOHC
Ground Clearance	135 mm
