Suzuki GSF1250 Service Manual

Emission Control Devices: 1B-9

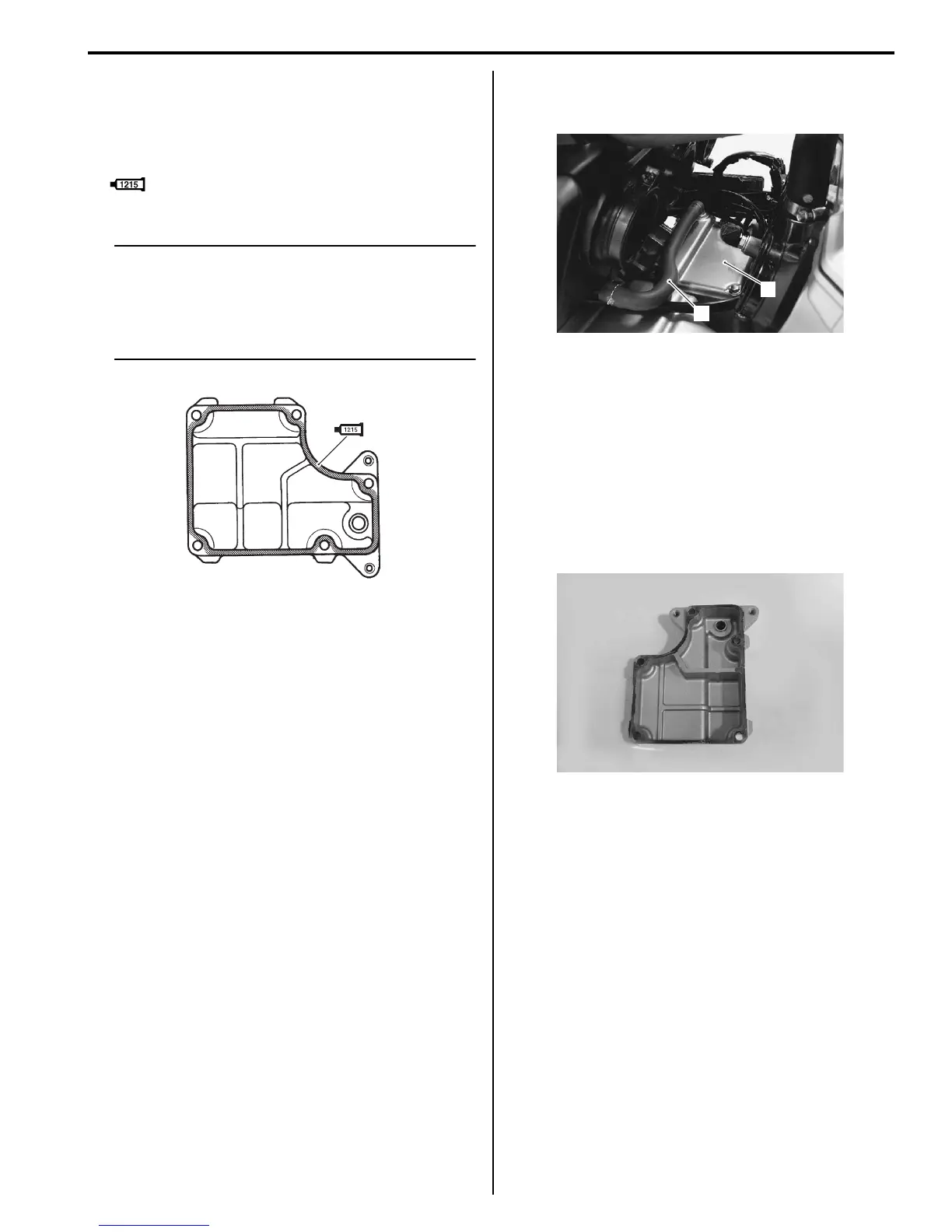

Installation
Installation is in the reverse order of removal.
Pay attention to the following points:
• Apply bond to the mating surface of the breather
cover.
: Sealant 99000–31110 (SUZUKI BOND
No.1215 or equivalent)
NOTE
• Make surfaces free from moisture, oil, dust
and other foreign materials.
• Spread the sealant on surfaced thinly to
form an even layer, and assembly the
crankcases within a few minutes.
• Fit the breather cover (1) and tighten the bolts.
• Connect the PCV hose (2) securely.
Crankcase Breather (PCV) Cover Inspection
B718H11206010
Inspect the crankcase breather (PCV) cover in the
following procedures.
1) Remove the crankcase breather cover. Refer to
“Crankcase Breather (PCV) Hose / Cover /
Separator Removal and Installation (Page 1B-8)”.
2) Inspect the crankcase breather cover in the carbon
deposit. If the carbon deposit is found in the
crankcase breather cover, remove it.
3) Reinstall the crankcase breather cover. Refer to
“Crankcase Breather (PCV) Hose / Cover /
Separator Removal and Installation (Page 1B-8)”.
I718H1120040-03
1
2
I718H1120014-02
I718H1120015-02

Suzuki GSF1250 Specifications

General

Displacement	1255 cc
Bore x Stroke	79.0 mm x 64.0 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Transmission	6-speed, constant mesh
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	180/55ZR17M/C (73W), tubeless
Overall Length	2130 mm
Overall Width	790 mm
Seat Height	805 mm
Wheelbase	1485 mm
Fuel Tank Capacity	19.0 L
Starter	Electric
Final Drive	Chain
Ignition	Electronic ignition (transistorized)
Engine Type	4-stroke, liquid-cooled, DOHC
Ground Clearance	135 mm
