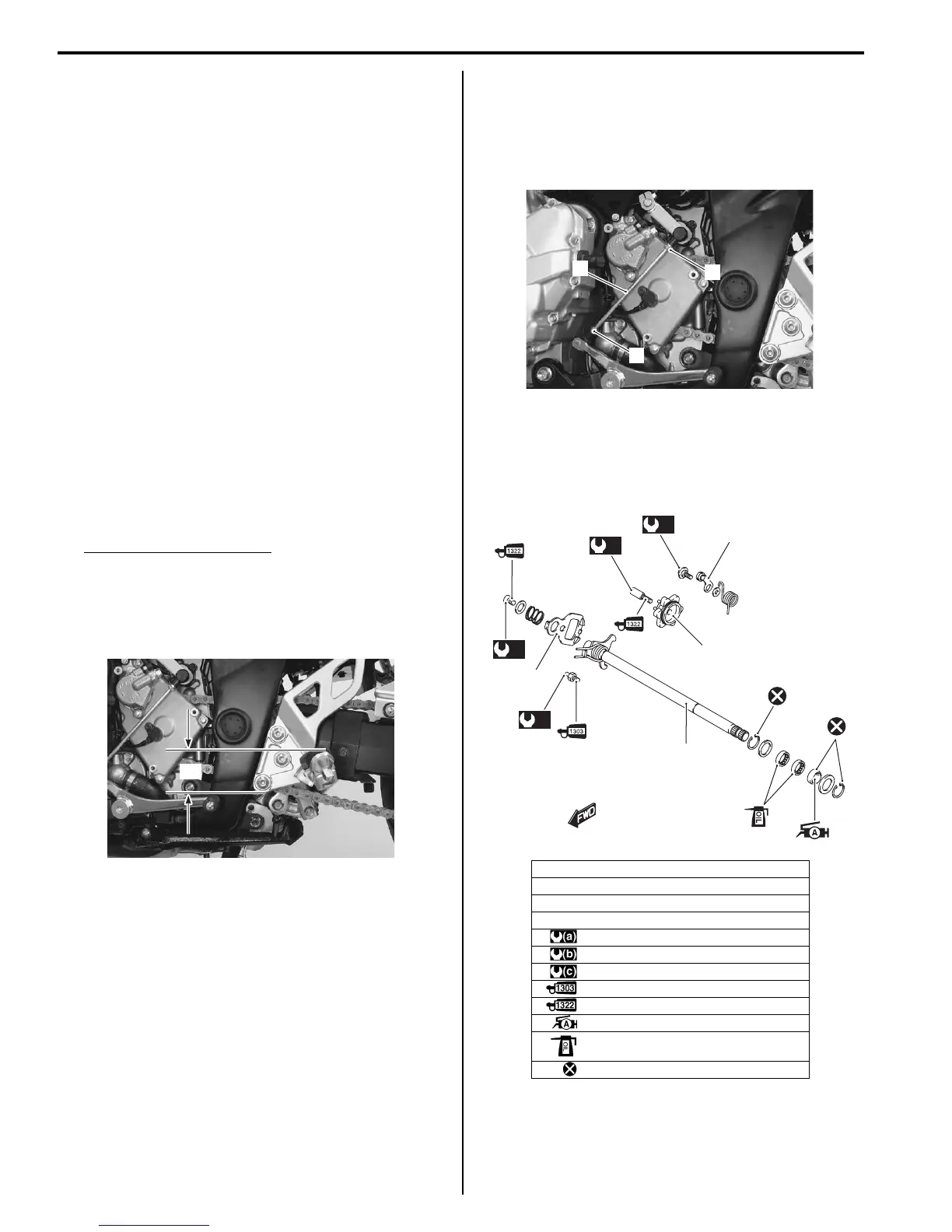

5B-14 Manual Transmission:
Gearshift Lever Removal and Installation
B718H15206017
Removal
1) Place the motorcycle on the center stand.
2) Remove the gearshift lever as shown in the gearshift
lever construction. Refer to “Gearshift Lever
Construction (Page 5B-13)”.
Installation
1) Install the gearshift lever as shown in the gearshift
lever construction. Refer to “Gearshift Lever
Construction (Page 5B-13)”.
2) After installing the gearshift lever, check the gearshift
lever height. Refer to “Gearshift Lever Height
Inspection and Adjustment (Page 5B-14)”.
Gearshift Lever Height Inspection and
Adjustment
B718H15206014
Inspect and adjust the gearshift lever height in the
following procedures:
1) Inspect the gearshift lever height “a” between the
pedal top face and footrest.
Adjust the gearshift lever height if necessary.
Gearshift lever height “a”
Standard: 45 – 55 mm (1.8 – 2.2 in.)
2) Remove the engine sprocket outer cover. Refer to
“Engine Sprocket Removal and Installation in
Section 3A (Page 3A-2)”.
3) Loosen the lock-nuts (1).
4) Turn the gearshift link rod (2) until the gearshift lever
is 45 – 55 mm (1.8 – 2.2 in.) below the top of the
footrest.
5) Tighten the lock-nuts securely.
6) Reinstall the engine sprocket outer cover.
Gearshift Shaft / Gearshift Cam Plate
Components
B718H15206010
“a”
I718H1520068-01
1. Gearshift shaft
2. Gearshift cam drive plate
3. Gearshift cam plate
4. Gearshift cam stopper
:10 N⋅m (1.0 kgf-m, 7.0 lb-ft)
:13 N⋅m (1.3 kgf-m, 9.5 lb-ft)
:19 N⋅m (1.9 kgf-m, 13.5 lb-ft)
: Apply thread lock to thread part.
: Apply thread lock to thread part.
: Apply grease to oil seal lip.
: Apply engine oil.
: Do not reuse.
1
1
2
I718H1520069-01
1
(c)
2
(a)
(b)
(a)
4
3
I718H1520075-03
