Suzuki GSF1250 Service Manual

Clutch: 5C-6

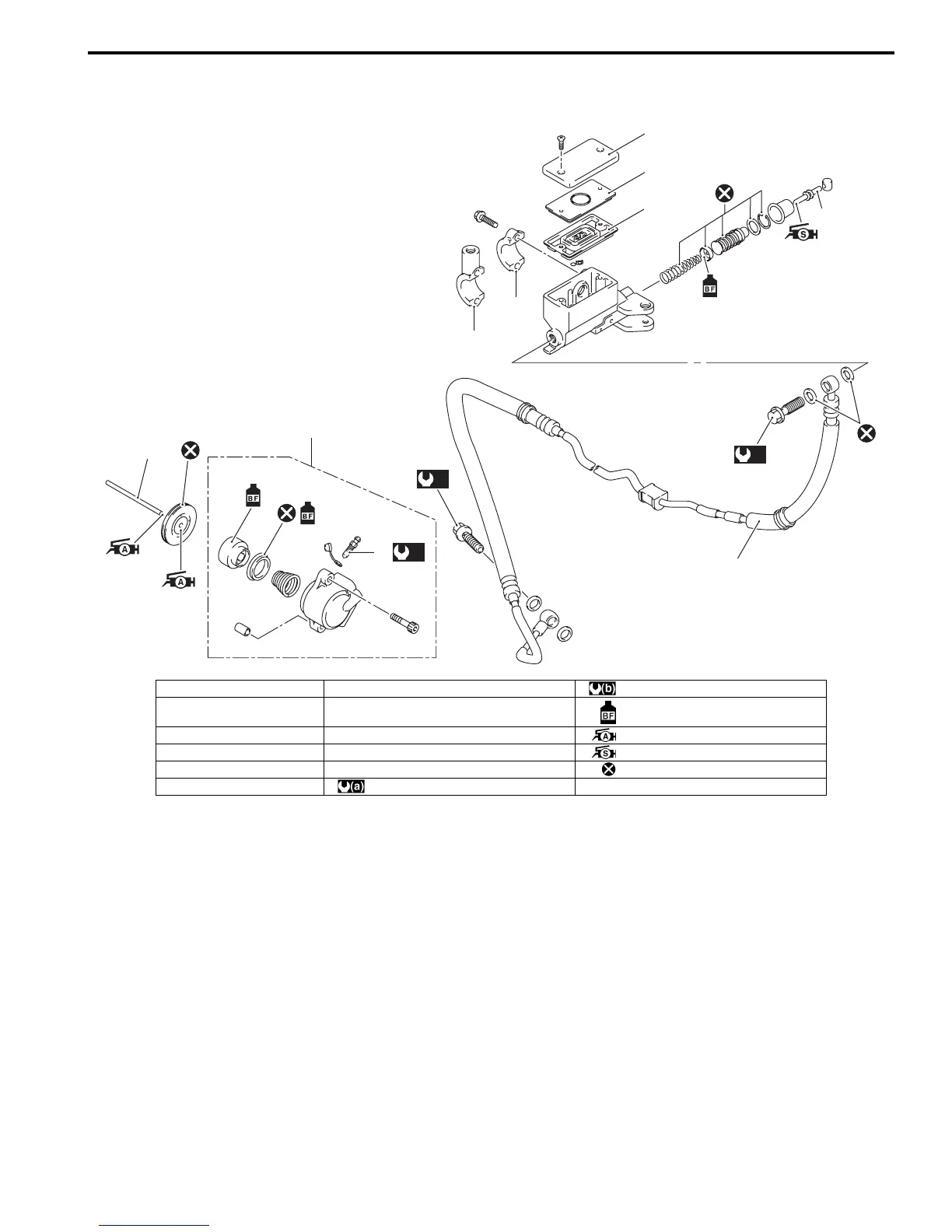

Clutch Control System Components
B718H15306007
5
6
4
2
1
[A]
[B]
(a)
3
(a)
(b)
9
7
8
I718H1530065-02
1. Push rod 7. Push rod : 6 N⋅m (0.6 kgf-m, 4.5 lb-ft)
2. Piston/Cup set 8. Clutch release cylinder set : Apply brake fluid.
3. Clutch hose 9. Air bleeder : Apply grease.
4. Reservoir cap [A]: For GSF1250/A : Apply silicone grease.
5. Plate [B]: For GSF1250S/SA : Do not reuse.
6. Diaphragm : 23 N⋅m (2.3 kgf-m, 16.5 lb-ft)

Suzuki GSF1250 Specifications

General

Displacement	1255 cc
Bore x Stroke	79.0 mm x 64.0 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Transmission	6-speed, constant mesh
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	180/55ZR17M/C (73W), tubeless
Overall Length	2130 mm
Overall Width	790 mm
Seat Height	805 mm
Wheelbase	1485 mm
Fuel Tank Capacity	19.0 L
Starter	Electric
Final Drive	Chain
Ignition	Electronic ignition (transistorized)
Engine Type	4-stroke, liquid-cooled, DOHC
Ground Clearance	135 mm
