Suzuki GSF1250 Service Manual

4E-29 ABS:
SDS Check
B718H14504023
Using SDS, take the sample of data from the new motorcycle and at the time of periodic maintenance at your dealer.
Save the data in the computer or by printing and filing the hard copies. The saved or filed data are useful for
troubleshooting as they can be compared periodically with changes over time or failure conditions of the motorcycle.
For example, when a motorcycle is brought in for service but the troubleshooting is difficult, comparison with the
normal data that have been saved or filed can allow the specific ABS failure to be determined.
1) Remove the left frame cover. Refer to “Exterior Parts Removal and Installation in Section 9D (Page 9D-6)”.
2) Set up the SDS tool. (Refer to “SDS operation manual for further details.)
NOTE
• Before taking the sample of data, check and clear the Past DTC. Refer to “DTC (Diagnostic Trouble
Code) Deleting (Page 4E-25)”.
• A number of different data under a fixed condition as shown should be saved or filed as sample.
Special tool
: 09904–41010 (SDS set)
: 99565–01010–010 (CD-ROM Ver.10)

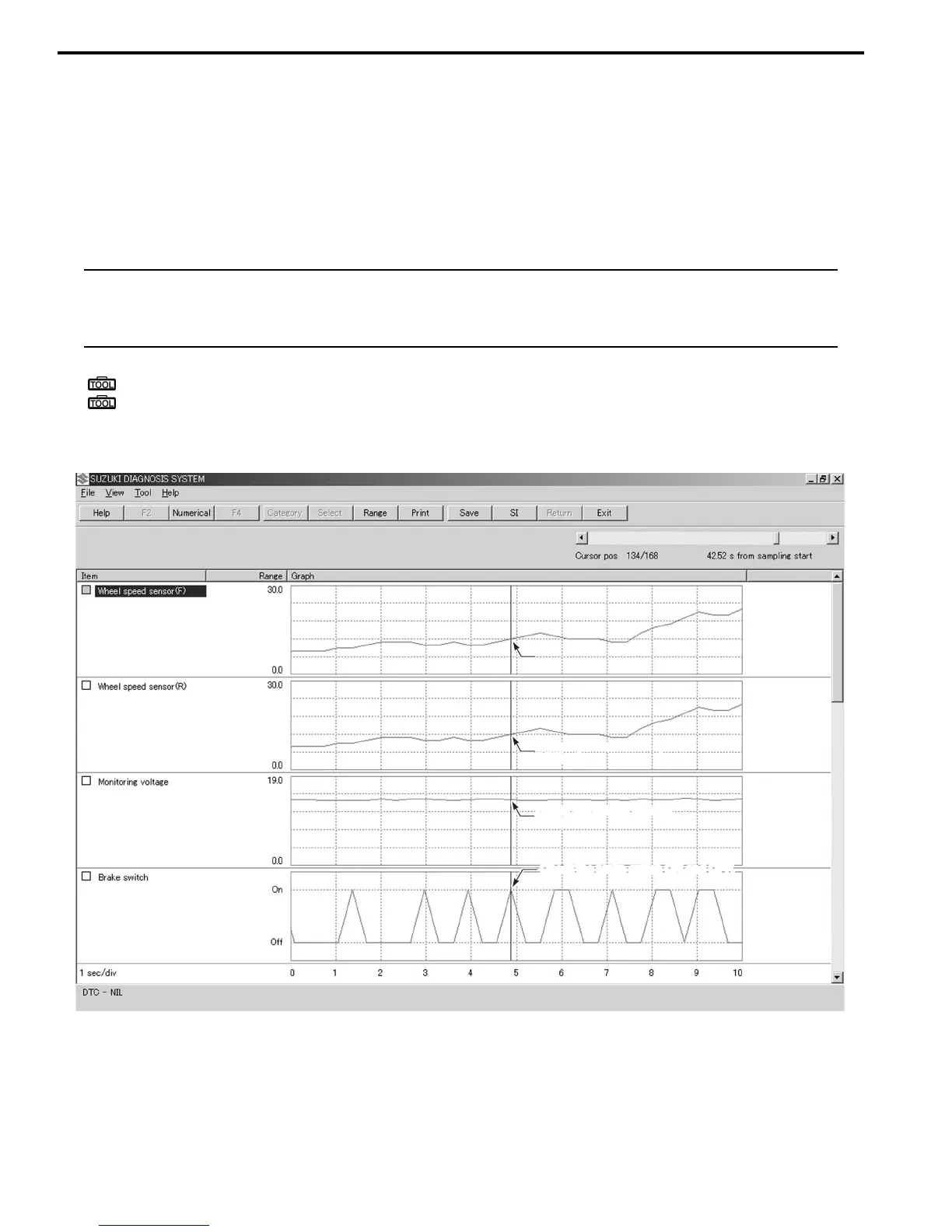

DATA sampled from ABS HU system
Check the front wheel speed.
Check the front wheel speed.
XX
XX
km/h
km/h
Check the front wheel speed.
XX km/h
Check the rear wheel speed.
XX km/h
Check the battery voltage.
XX V
Check the brake switch ON and OFF.
I718H1450048-03
