Suzuki GSF1250 Service Manual

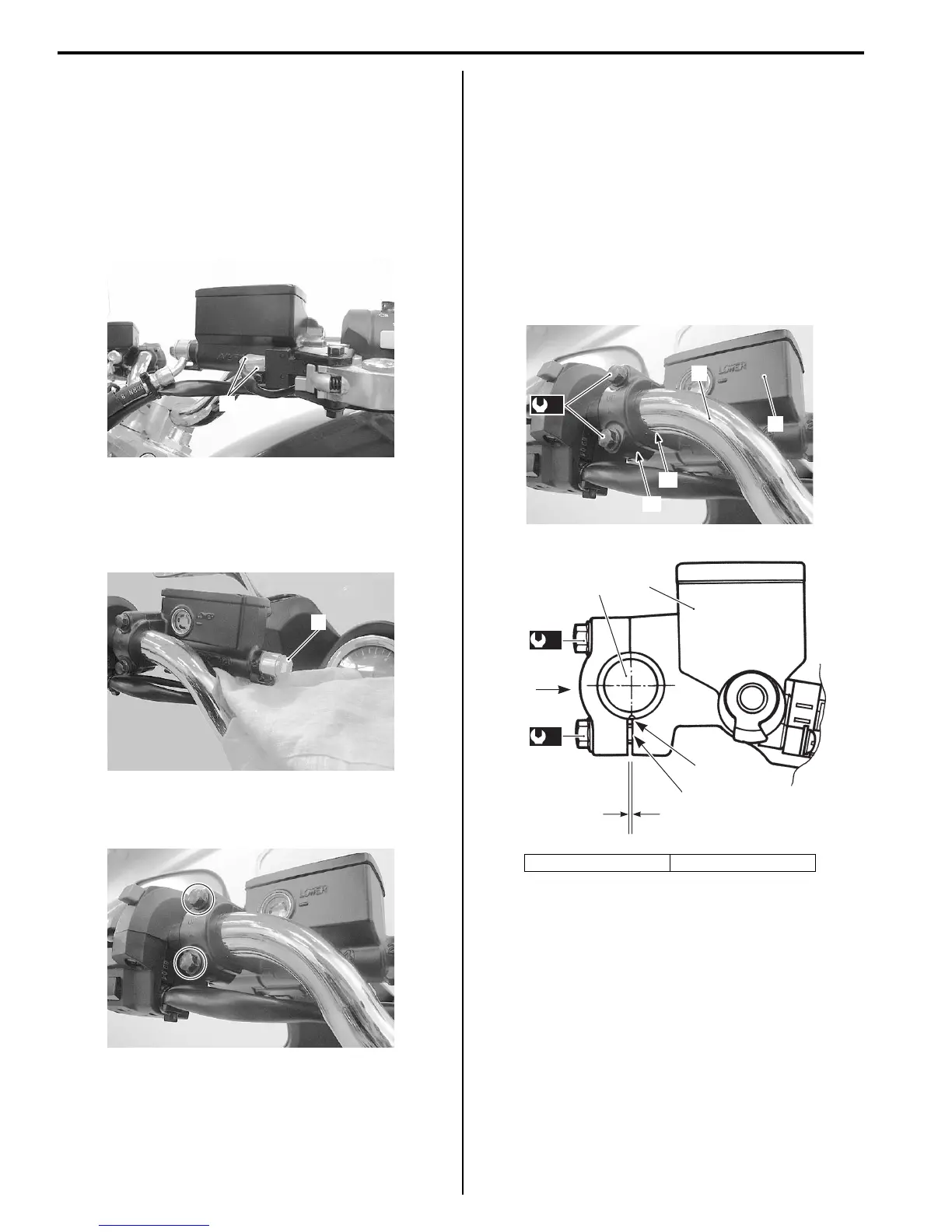

5C-7 Clutch:
Clutch Master Cylinder Assembly Removal and
Installation
B718H15306008
Removal
1) Drain clutch fluid. Refer to “Clutch Fluid
Replacement (Page 5C-4)”.
2) Disconnect the clutch lever position switch lead
wires (1).
3) Place a rag under the clutch hose union bolt (2) on
the master cylinder to catch any spilt brake fluid.
4) Remove the clutch hose union bolt (2) and
disconnect the clutch hose.
5) Remove the left rear view mirror. (GSF1250/A)
6) Remove the master cylinder assembly.
Installation
Install the clutch master cylinder in the reverse order of
removal. Pay attention to the following points:
• When installing the master cylinder (1) onto the
handlebars (2), align the master cylinder holder’s
mating surface “A” with the punch mark “B” on the
handlebars (2) and tighten the upper holder bolt first.
Refer to “Handlebar Construction in Section 6B
(Page 6B-2)”.
Tightening torque
Clutch master cylinder holder bolt (a): 10 N·m (
1.0 kgf-m, 7.0 lb-ft)
1
I718H1530017-01
2
I718H1530018-01
I718H1530019-01
“C”: “UP” mark “a”: Clearance
(a)
1
2
“A”
“B”
I718H1530020-01
(a)
(a)
“C”
1
2
“A”
“B”
“a”
I718H1530073-01
