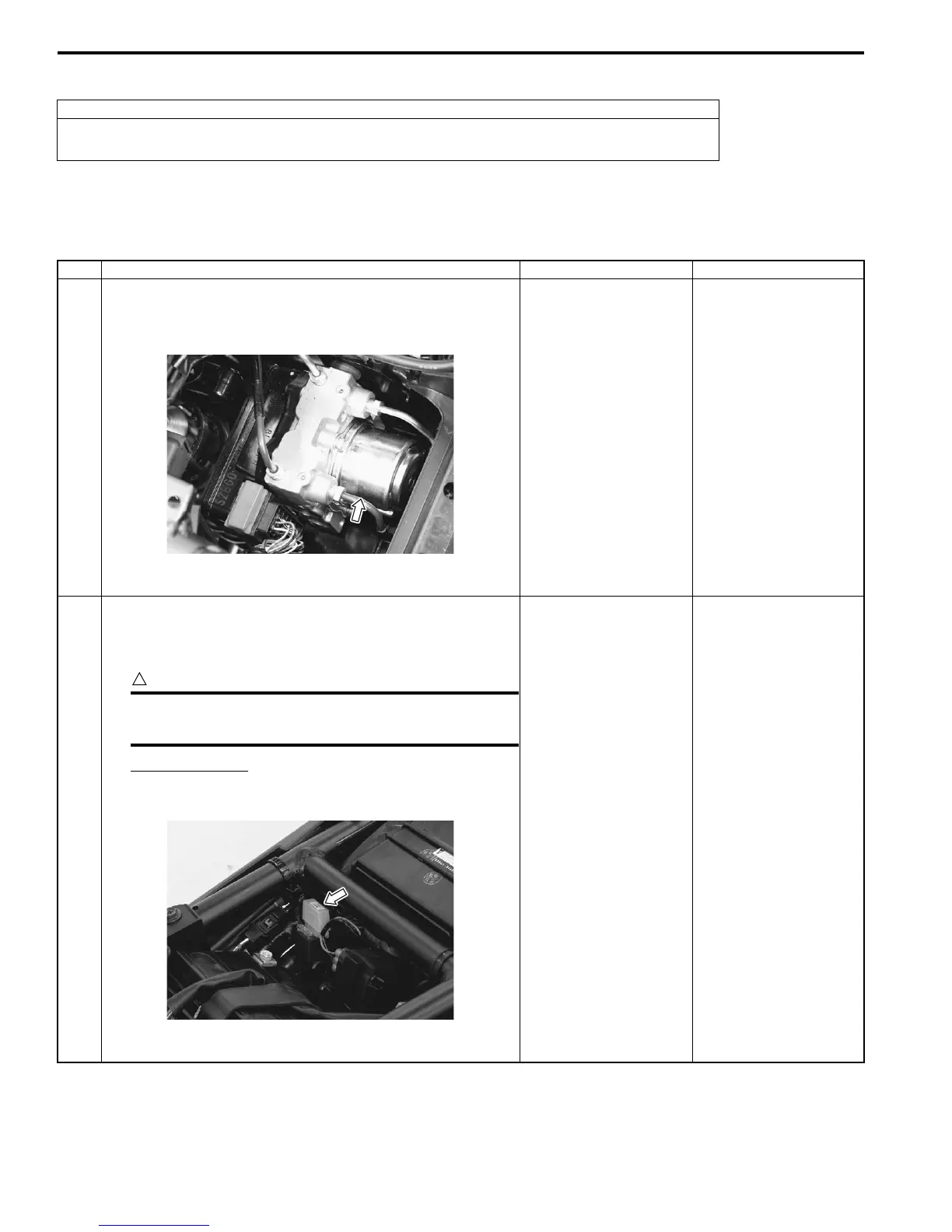

Suzuki GSF1250 Service Manual

4E-45 ABS:
DTC “35” (C1635): ABS Motor Malfunction
B718H14504008
Wiring Diagram
Refer to “ABS Unit Diagram (Page 4E-8)”.
Troubleshooting
Possible Cause
• Faulty HU motor
• Faulty wiring, etc.
Step Action Yes No
1 1) Inspect if the pump motor makes turning noise by setting
the ignition switch to ON from OFF when the vehicle
stands still.
Does the pump motor make any turning noise?
• Faulty HU motor
• Replace the ABS
control unit/HU.
Go to Step 2.
2 1) Remove the seat. Refer to “Exterior Parts Removal and
Installation in Section 9D (Page 9D-6)”.
2) Inspect the ABS motor fuse.
CAUTION
!
If a fuse is blown, find the cause of the problem
and correct it before replacing the fuse.
ABS motor fuse
20 A
Is the ABS motor fuse OK?
Go to Step 3. Replace the ABS motor
fuse.
I718H1450074-01
I718H1450126-02
