Suzuki GSF1250 Service Manual

1J-8 Charging System:
Regulator / Rectifier Construction
B718H11A06013
Regulator / Rectifier Inspection
B718H11A06012
Inspect the regulator/rectifier in the following procedures:
1) Turn the ignition switch OFF.
2) Remove the clamp.
3) Disconnect the regulator/rectifier couplers (1).
1
2
3
4
5
(a)
(a)
(a)
(a)

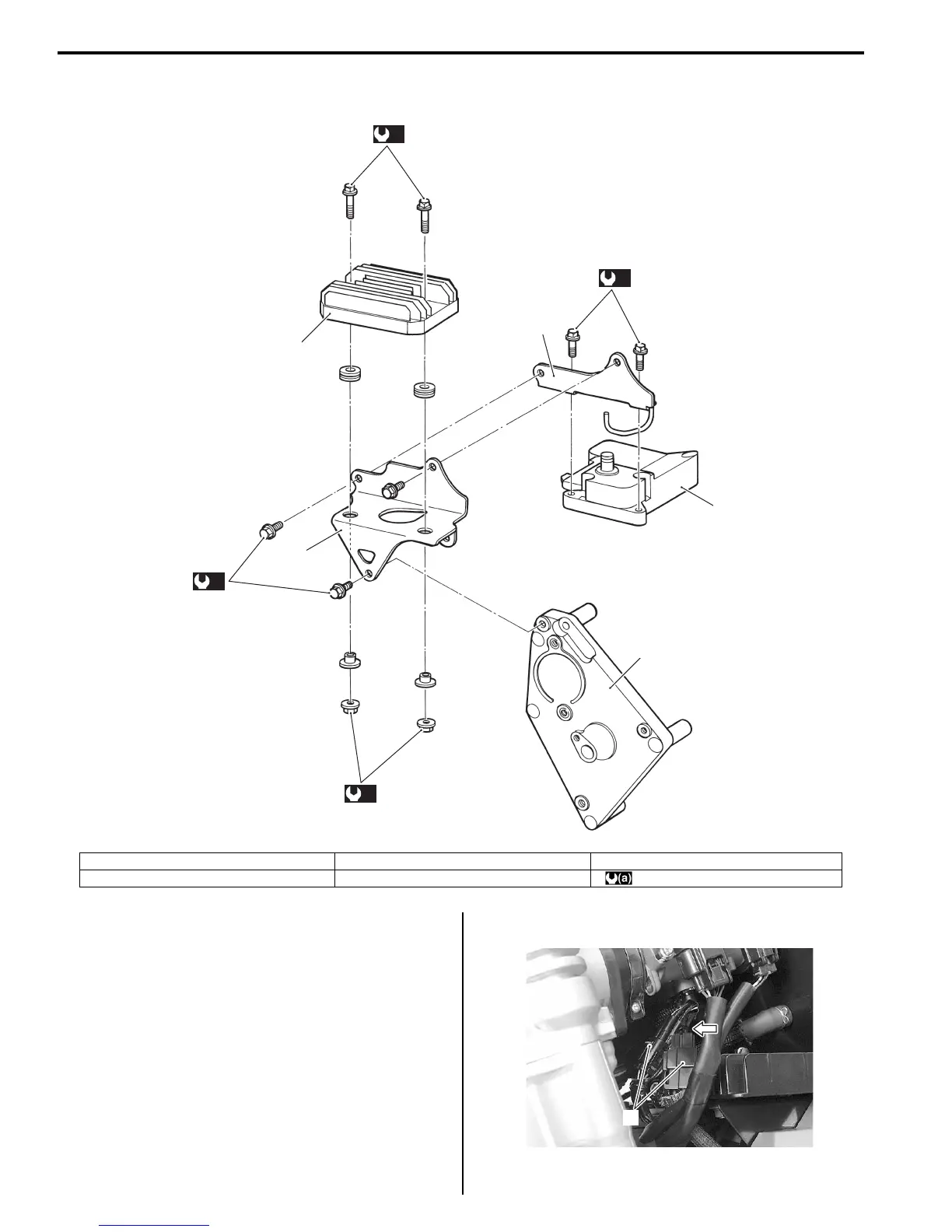

I718H11A0002-01
1. Regulator/rectifier 3. Regulator/rectifier bracket No.2 5. Engine sprocket inner cover
2. Regulator/rectifier bracket No.1 4. Breather cover : 10 N⋅m (1.0 kgf-m, 7.0 lb-ft)
1
I718H11A0032-02

Suzuki GSF1250 Specifications

General

Displacement	1255 cc
Bore x Stroke	79.0 mm x 64.0 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Transmission	6-speed, constant mesh
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	180/55ZR17M/C (73W), tubeless
Overall Length	2130 mm
Overall Width	790 mm
Seat Height	805 mm
Wheelbase	1485 mm
Fuel Tank Capacity	19.0 L
Starter	Electric
Final Drive	Chain
Ignition	Electronic ignition (transistorized)
Engine Type	4-stroke, liquid-cooled, DOHC
Ground Clearance	135 mm
