Suzuki GSF1250 Service Manual

Brake Control System and Diagnosis: 4A-14

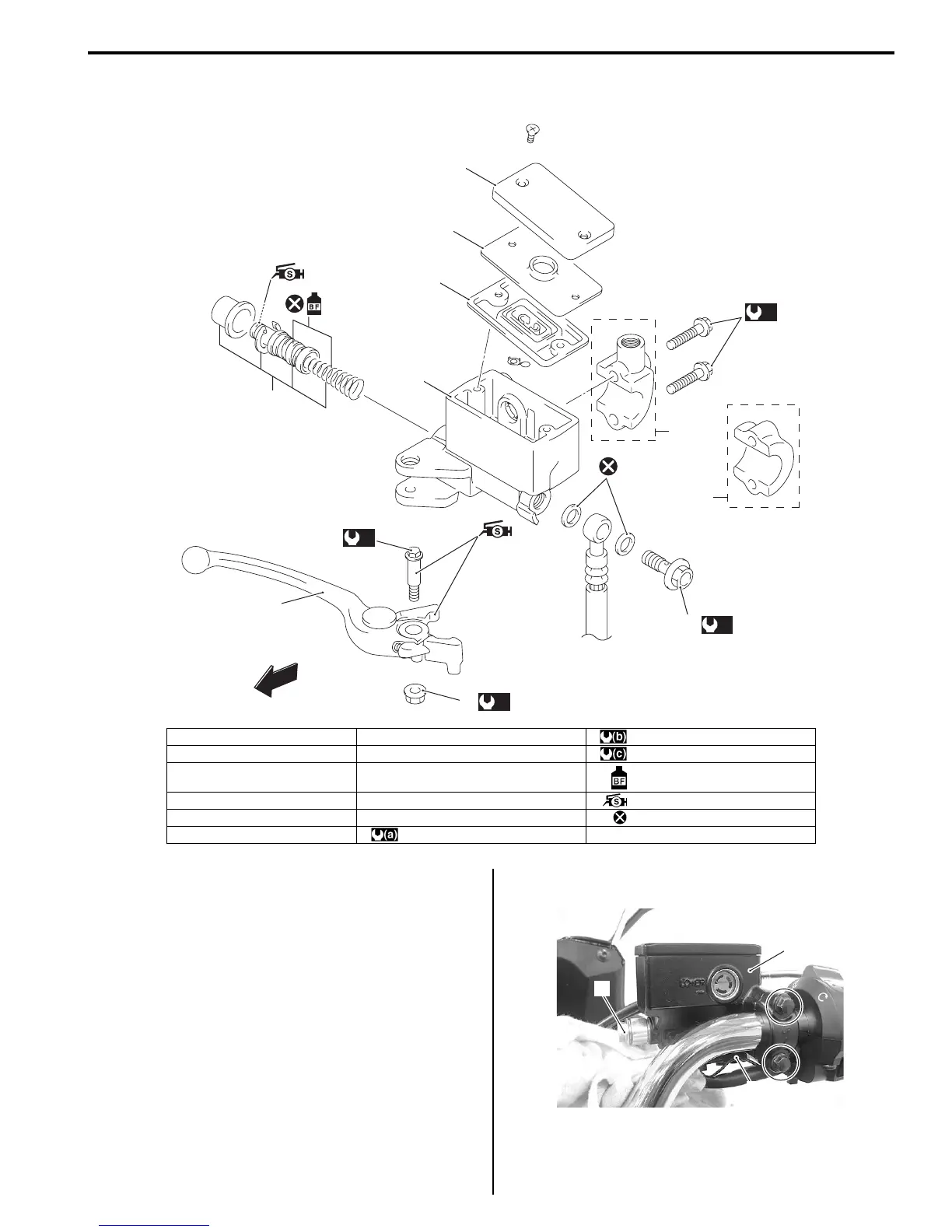

Front Brake Master Cylinder Components
B718H14106011
Front Brake Master Cylinder Assembly Removal
and Installation
B718H14106012
Removal
1) Drain brake fluid. Refer to “Brake Fluid Replacement
(Page 4A-10)”.
2) Disconnect the front brake light switch lead coupler
(1).
3) Place a rag underneath the brake hose union bolt (2)
on the master cylinder to catch any spilt brake fluid.
4) Remove the brake hose union bolt (2) and
disconnect the brake hose.
5) Remove the right rear view mirror. (GSF1250/A)
6) Remove the master cylinder assembly (3).
1
2
3
(a)
6
[B]
[A]
5
(b)
FWD
FWD
7
(c)
8
(c)
9
4
I718H1410070-01
1. Reservoir cap 7. Brake lever : 10 N⋅m (1.0 kgf-m, 7.0 lb-ft)
2. Plate 8. Brake lever pivot bolt : 6.0 N⋅m (0.6 kgf-m, 4.5 lb-ft)
3. Diaphragm 9. Brake lever pivot bolt lock-nut : Apply brake fluid.
4. Master cylinder [A]: For GSF1250/A : Apply silicone grease.
5. Piston/Cup set [B]: For GSF1250S/SA : Do not reuse.
6. Brake hose union bolt : 23 N⋅m (2.3 kgf-m, 16.5 lb-ft)
2
1
3
I718H1410048-04
