Suzuki GSF1250 Service Manual

9B-8 Lighting Systems:

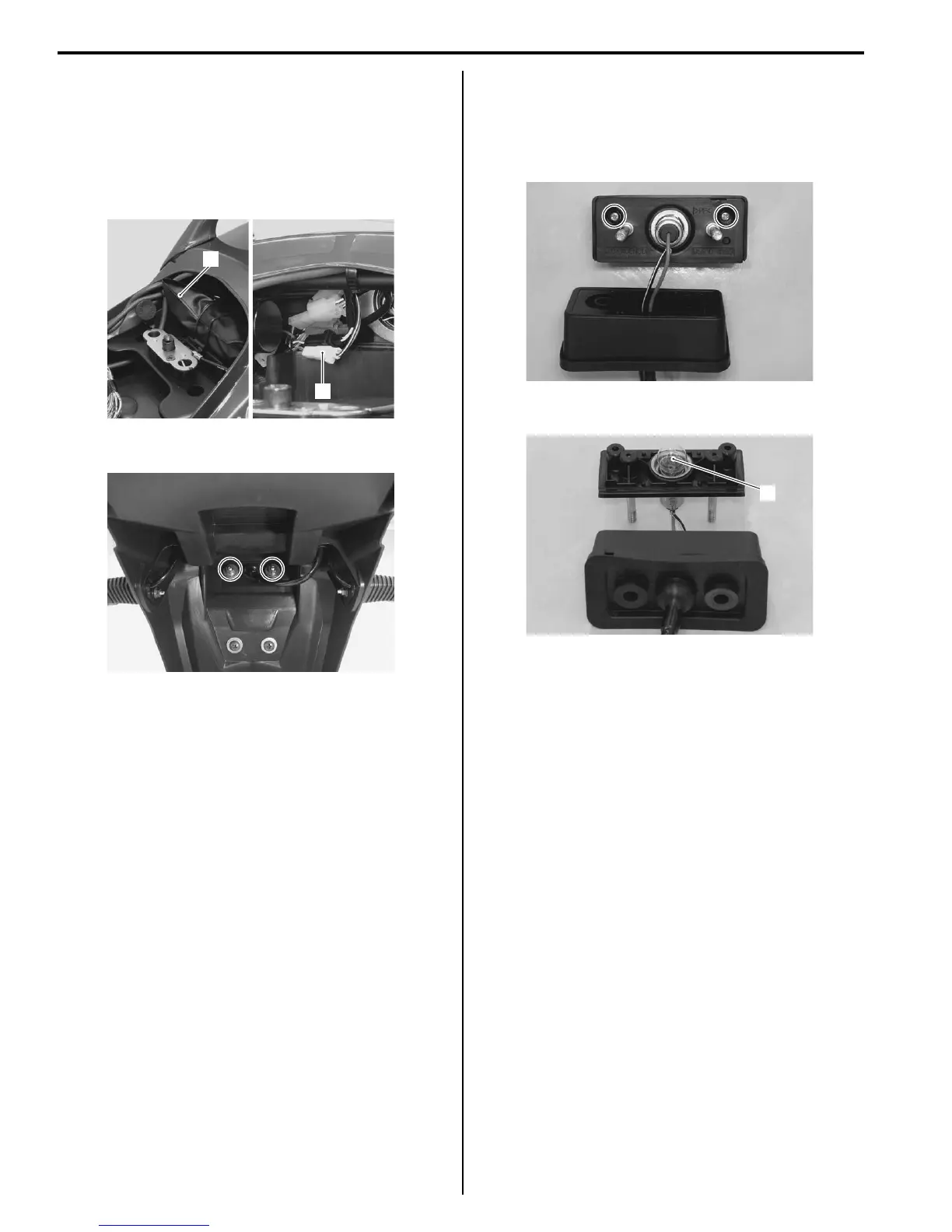

License Plate Light Removal and Installation
B718H19206010
Removal
1) Remove the seat. Refer to “Exterior Parts Removal
and Installation in Section 9D (Page 9D-6)”.
2) Remove the tool set (1) and disconnect the license
plate light coupler (2).
3) Remove the license plate light by removing the nuts.
Installation
Install the license plate light in the reverse order of
removal.
License Plate Light Bulb Replacement
B718H19206011
1) Remove the license plate light. Refer to “License
Plate Light Removal and Installation (Page 9B-8)”.
2) Remove the lens by removing the screws.
3) Replace the bulb (1).
4) Reinstall the removed parts.
1
2
I718H1920022-01
I718H1920023-01
I718H1920024-01
1
I718H1920026-01

Suzuki GSF1250 Specifications

General

Displacement	1255 cc
Bore x Stroke	79.0 mm x 64.0 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Transmission	6-speed, constant mesh
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	180/55ZR17M/C (73W), tubeless
Overall Length	2130 mm
Overall Width	790 mm
Seat Height	805 mm
Wheelbase	1485 mm
Fuel Tank Capacity	19.0 L
Starter	Electric
Final Drive	Chain
Ignition	Electronic ignition (transistorized)
Engine Type	4-stroke, liquid-cooled, DOHC
Ground Clearance	135 mm
