Suzuki GSF1250 Service Manual

4B-1 Front Brakes:
Brake
Front Brakes
Repair Instructions

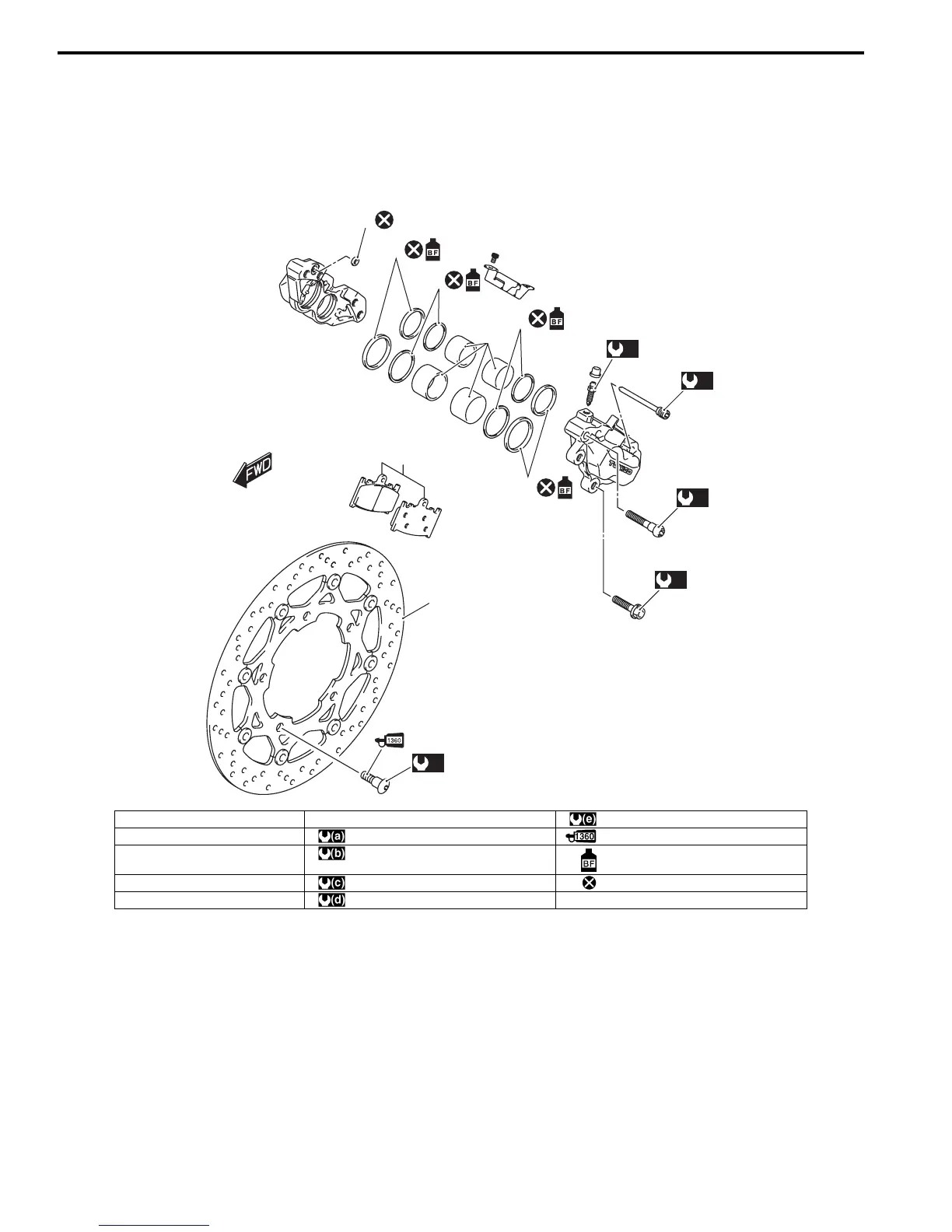

Front Brake Components
B718H14206001
1,
2,
3,
3,
2,
(a)
(b)
(c)
(d)
5
6
(e)
4
I649G1420001-05
1. O-ring 6. Front brake disc : 23 N⋅m (2.3 kgf-m, 16.5 lb-ft)
2. Piston seal : 7.5 N⋅m (0.75 kgf-m, 5.5 lb-ft) : Apply thread lock to thread part.
3. Dust seal : 16 N⋅m (1.6 kgf-m, 11.5 lb-ft) : Apply brake fluid.
4. Piston : 22 N⋅m (2.2 kgf-m, 16.0 lb-ft) : Do not reuse.
5. Front brake pad set : 26 N⋅m (2.6 kgf-m, 19.0 lb-ft)

Suzuki GSF1250 Specifications

General

Displacement	1255 cc
Bore x Stroke	79.0 mm x 64.0 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Transmission	6-speed, constant mesh
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	180/55ZR17M/C (73W), tubeless
Overall Length	2130 mm
Overall Width	790 mm
Seat Height	805 mm
Wheelbase	1485 mm
Fuel Tank Capacity	19.0 L
Starter	Electric
Final Drive	Chain
Ignition	Electronic ignition (transistorized)
Engine Type	4-stroke, liquid-cooled, DOHC
Ground Clearance	135 mm
