1D-22 Engine Mechanical:

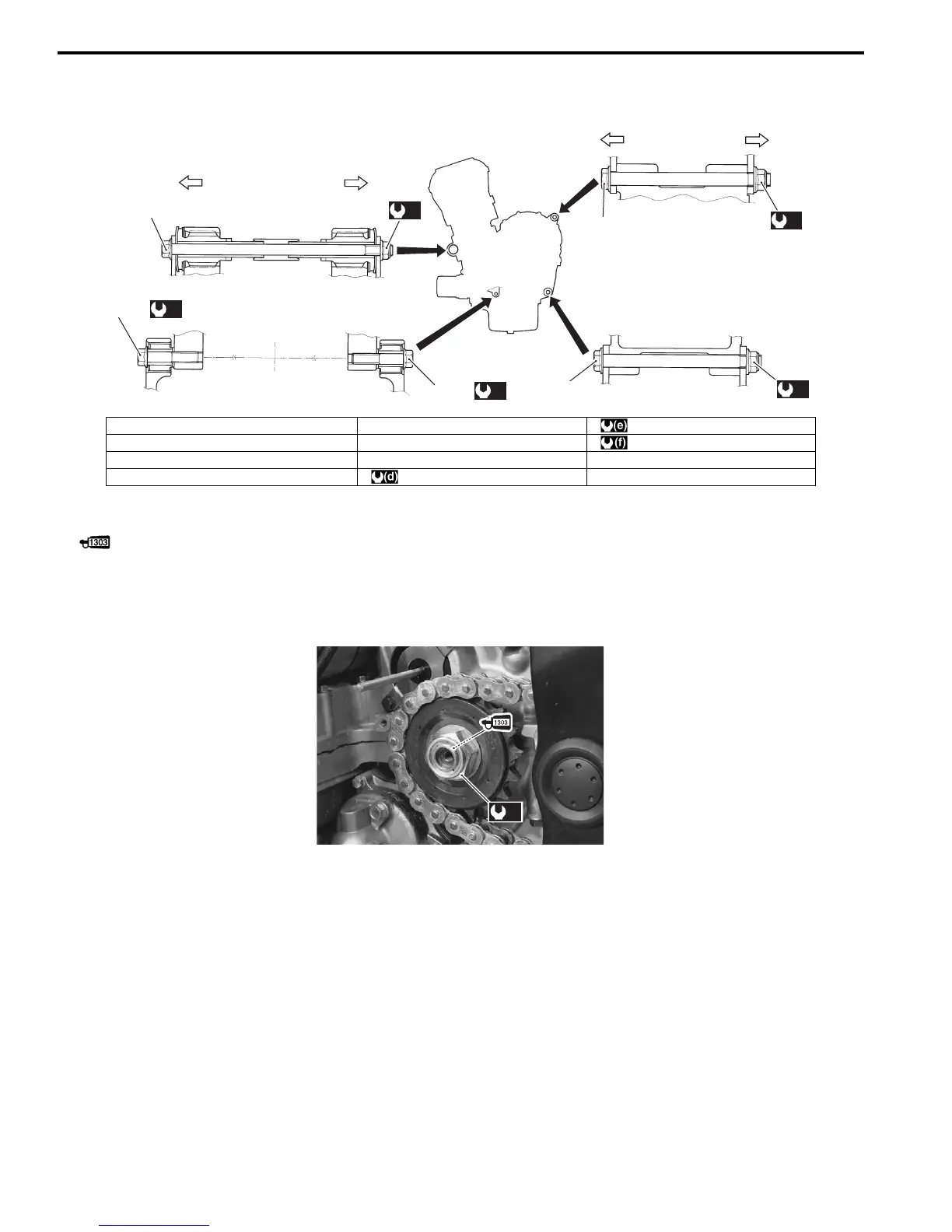

• Tighten all engine mounting bolts and nuts to the specified torque, as shown in the following illustration.
• Apply THREAD LOCK SUPER to the driveshaft.
: Thread lock cement 99000–32030 (THREAD LOCK CEMENT SUPER 1303 or equivalent)
• Tighten the engine sprocket nut to the specified torque.
Tightening torque
Engine sprocket nut (g): 115 N·m (11.5 kgf-m, 83.0 lb-ft)
(e)
1
2
3
“a”
“b”
(e)
2
“b”
“c”
4
(d)
(f)
(f)
Left Right
Left Right
“c”
I718H1140375-02
1. Engine mounting bolt (Front upper) “a”: 215 mm (8.5 in) : 47 N⋅m (4.7 kgf-m, 34.0 lb-ft)
2. Engine mounting bolt (Center lower) “b”: 50 mm (2.0 in) : 88 N⋅m (8.8 kgf-m, 63.5 lb-ft)
3. Engine mounting bolt (Rear lower) “c”: 155 mm (6.1 in)
4. Engine mounting bolt (Rear upper) : 55 N⋅m (5.5 kgf-m, 40.0 lb-ft)
(g)
I718H1140376-01
