Suzuki GSF1250 Service Manual

Emission Control Devices: 1B-1
Engine
Emission Control Devices
Precautions
Precautions for Emission Control Devices
B718H11200001
Refer to “General Precautions in Section 00 (Page 00-1)”.
General Description
Fuel Injection System Description
B718H11201001
GSF1250 motorcycles are equipped with a fuel injection system for emission level control. This fuel injection system is
precision designed, manufactured and adjusted to comply with the applicable emission limits. With varying engine
conditions, all of the fuel injection volumes are precisely controlled by the programmed injection maps in the ECM to
reduce CO, NOX and HC. Adjusting, interfering with, improper replacement, or resetting of any of the fuel injection
components may adversely affect injection performance and cause the motorcycle to exceed the exhaust emission
level limits.
1
2
3
5
6
4
7
“A”
“B”
“C”
8

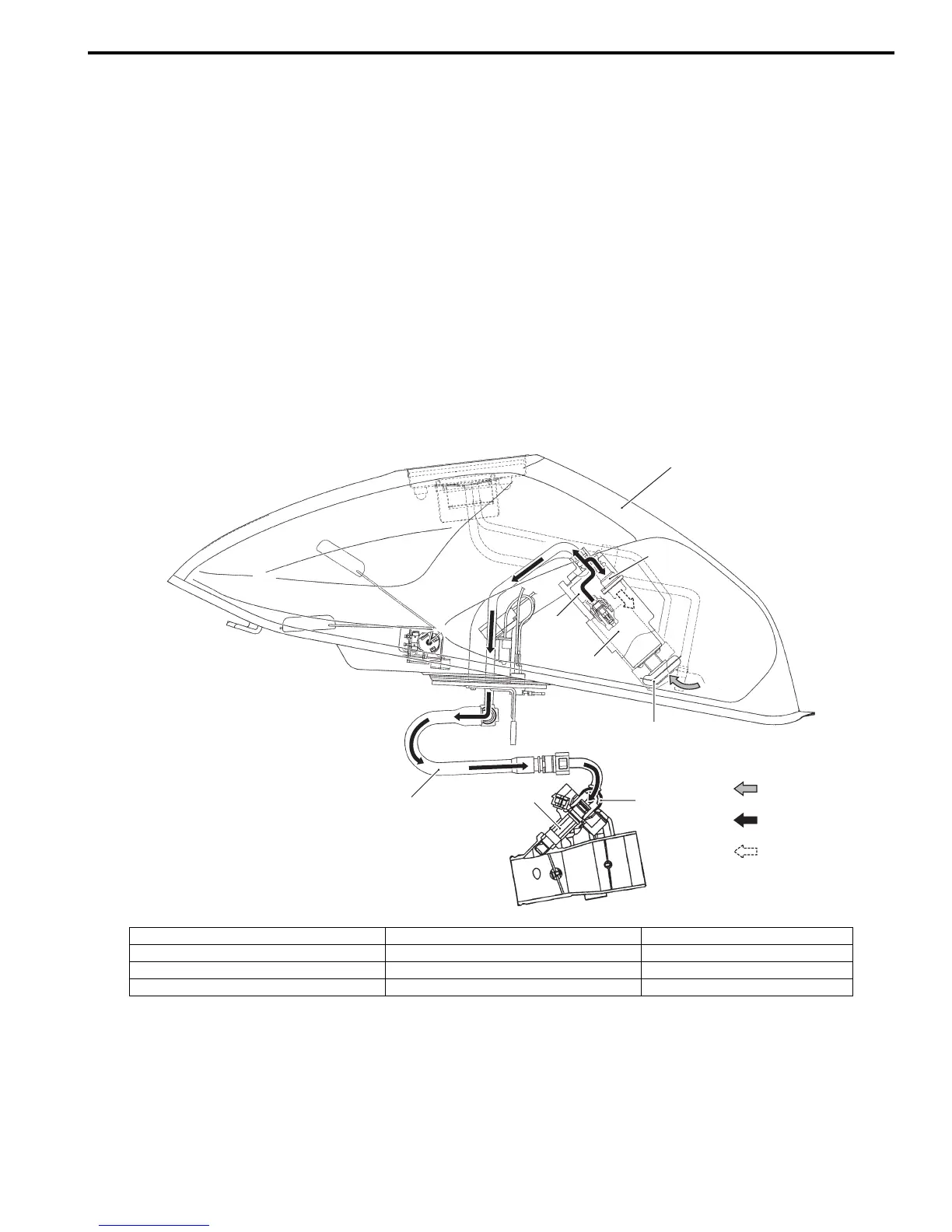

I718H1170001-02
1. Fuel tank 5. Fuel delivery pipe “A”: Before-pressurized fuel
2. Fuel pump 6. Fuel pressure regulator “B”: Pressurized fuel
3. Fuel mesh filter (For low pressure) 7. Fuel filter (For high pressure) “C”: Relieved fuel
4. Fuel feed hose 8. Fuel injector
