Suzuki GSF1250 Service Manual

Combination Meter / Fuel Meter / Horn: 9C-4

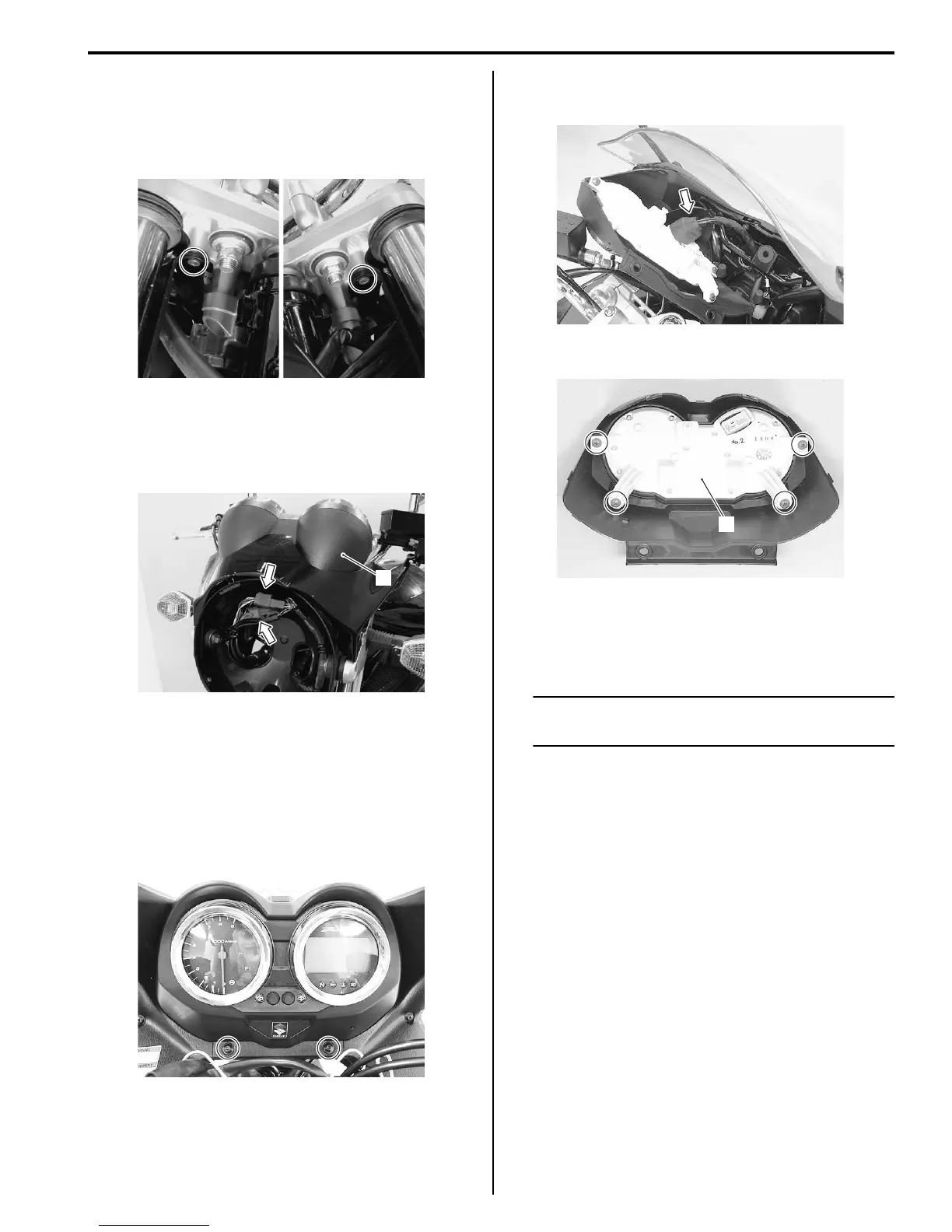

Combination Meter Removal and Installation
B718H19306002
GSF1250/A
Removal
1) Remove the combination meter mounting bolts.
2) Remove the headlight. Refer to “Headlight Removal
and Installation in Section 9B (Page 9B-2)”.
3) Disconnect the combination meter couplers and
remove the combination meter assembly (1).
Installation
Install the combination meter in the reverse order of
removal.
GSF1250S/SA
Removal
1) Remove the meter panel screws.
2) Disconnect the combination meter coupler and
remove the combination meter assembly.
3) Remove the combination meter (1).
Installation
Install the combination meter in the reverse order of
removal.
NOTE
Fix the boot of the combination meter
coupler properly.
Combination Meter Disassembly and Assembly
B718H19306003
Refer to “Combination Meter Removal and Installation
(Page 9C-4)”.
Disassembly
Disassemble the combination meter as shown in the
combination meter components. Refer to “Combination
Meter Components (Page 9C-2)”.
Assembly
Assemble the combination meter as shown in the
combination meter components. Refer to “Combination
Meter Components (Page 9C-2)”.
I718H1930057-01
1
I718H1930058-01
I718H1930017-02
I718H1930018-01
1
I718H1930019-01

Suzuki GSF1250 Specifications

General

Displacement	1255 cc
Bore x Stroke	79.0 mm x 64.0 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Transmission	6-speed, constant mesh
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	180/55ZR17M/C (73W), tubeless
Overall Length	2130 mm
Overall Width	790 mm
Seat Height	805 mm
Wheelbase	1485 mm
Fuel Tank Capacity	19.0 L
Starter	Electric
Final Drive	Chain
Ignition	Electronic ignition (transistorized)
Engine Type	4-stroke, liquid-cooled, DOHC
Ground Clearance	135 mm
