Suzuki GSF1250 Service Manual

Engine Mechanical: 1D-7
Installation
Install the throttle cables in the reverse order of removal.
Pay attention to the following points:
• Install the throttle cables as shown in the cable routing
diagram. Refer to “Throttle Cable Routing Diagram
(Page 1D-2)”.
• Check the throttle cable play and proper operation.
Throttle Cable Inspection
B718H11406038
Check that the throttle grip moves smoothly from full
open to full close. If it does not move smoothly, lubricate
the throttle cables.
Throttle Cable Play Inspection and Adjustment
B718H11406039
Refer to “Throttle Cable Play Inspection and Adjustment
in Section 0B (Page 0B-12)”.

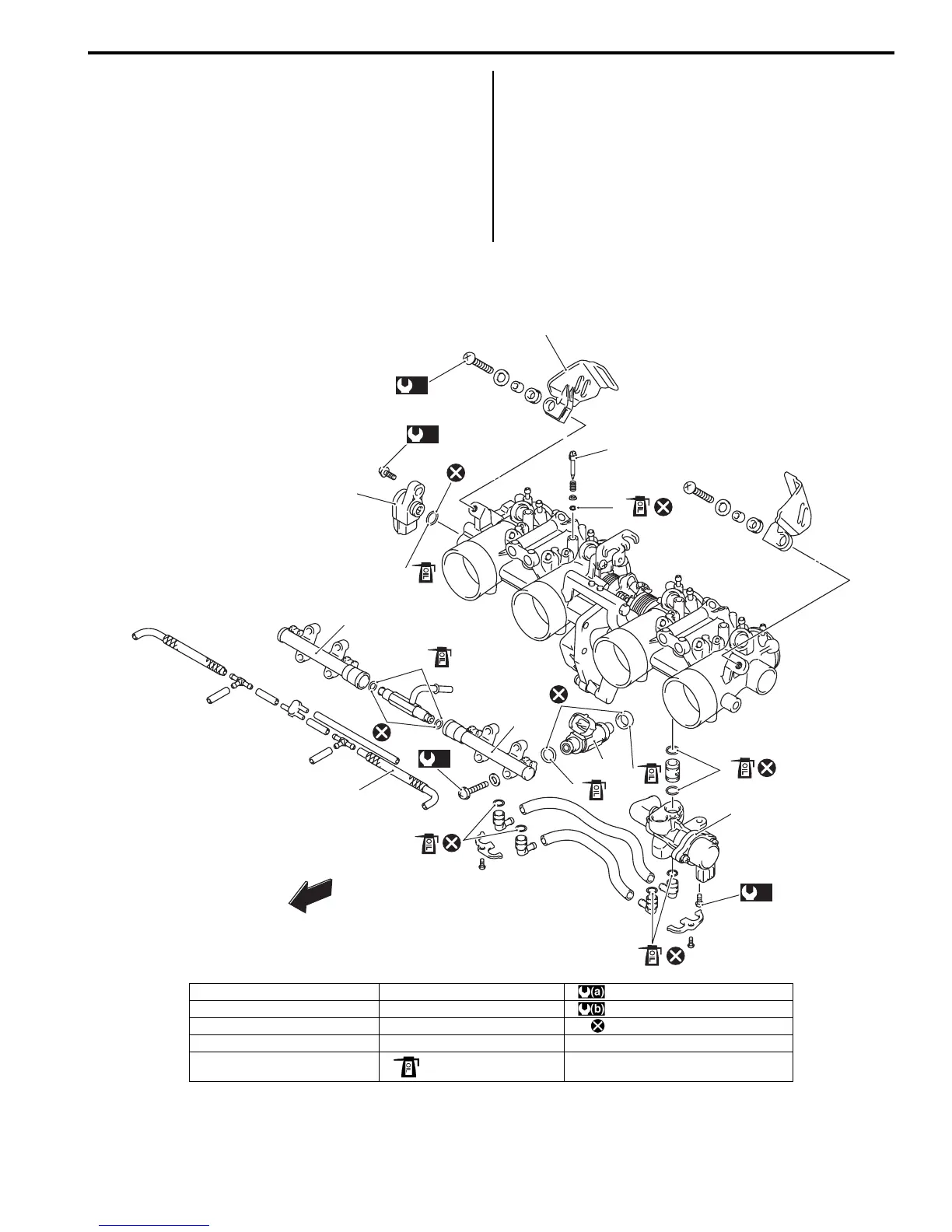

Throttle Body Components
B718H11406040
1
2
3
3
5
6
7
8
4
9
9
9
9
9
9
9
(b)
(a)
(a)
(a)
FWD
FWD
I718H1140309-01
1. Fuel injector cover 6. Air screw : 3.5 N⋅m (0.35 kgf-m, 2.5 Ib-ft)
2. STP sensor 7. ISC valve : 5 N⋅m (0.5 kgf-m, 3.5 Ib-ft)
3. Fuel delivery pipe 8. Vacuum hose : Do not reuse.
4. Fuel injector 9. O-ring
5. Cushion seal : Apply engine oil
