Suzuki GSF1250 Service Manual

Engine Lubrication System: 1E-11
Oil Pump Removal and Installation
B718H11506016
NOTE
Do not drop the each parts into the
crankcase.
Removal
1) Drain engine oil. Refer to “Engine Oil and Filter
Replacement in Section 0B (Page 0B-10)”.
2) Remove the clutch. Refer to “Clutch Removal in
Section 5C (Page 5C-13)”.

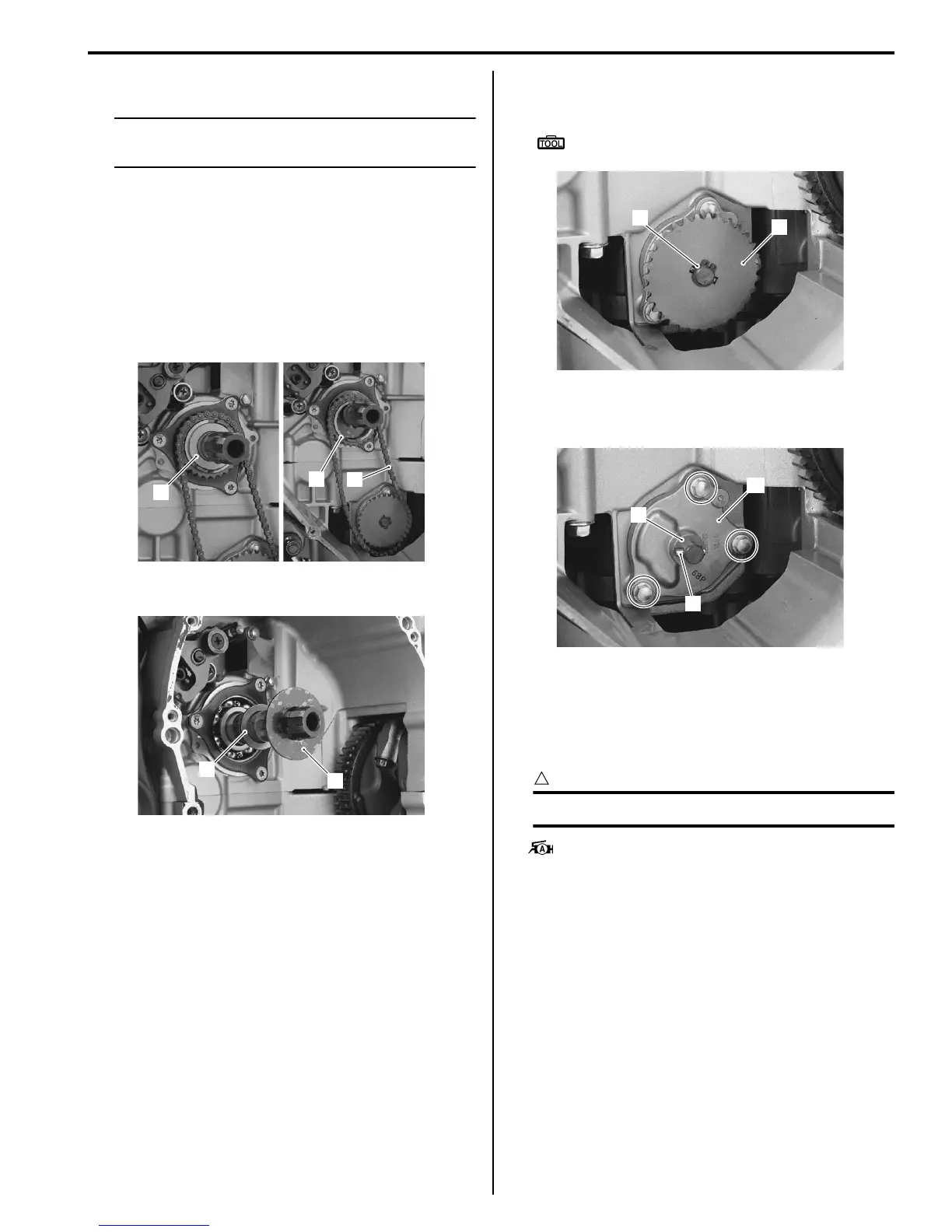

3) Remove the spacer (1).
4) Remove the oil pump drive sprocket (2) and chain
(3).
5) Remove the thrust washer (4) and washer (5).
6) Remove the snap ring (6) and oil pump driven gear
(7).
Special tool
: 09900–06107 (Snap ring pliers)
7) Remove the pin (8) and washer (9).
8) Remove the oil pump (10).
Installation
Installation is in reverse order of removal.
Pay attention to the following points:
• Apply SUZUKI SUPER GREASE to the O-ring.
CAUTION
!
Use a new O-ring to prevent oil leakage.
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
1
2
3
I718H1150054-01
5
4
I718H1150056-01
6
7
I718H1150055-01
8
9
10
I718H1150057-01
