Suzuki GSF1250 Service Manual

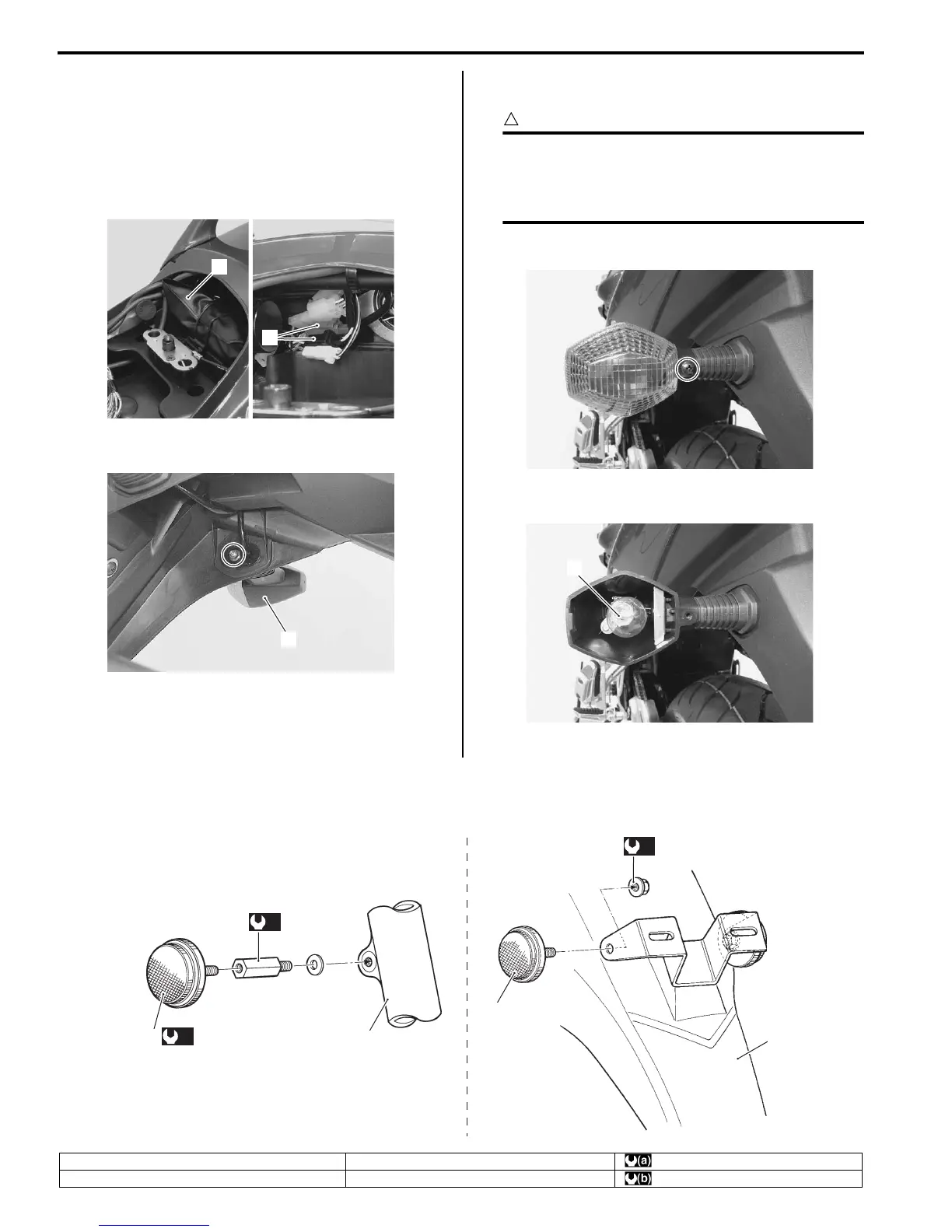

9B-10 Lighting Systems:
Rear Turn Signal Light Removal and Installation
B718H19206014
Removal
1) Remove the seat. Refer to “Exterior Parts Removal
and Installation in Section 9D (Page 9D-6)”.
2) Remove the tool set (1) and disconnect the turn
signal light coupler (RH: Black, LH: Gray) (2).
3) Remove the turn signal light (3) by removing the nut.
Installation
Install the rear turn signal light in the reverse order of
removal.
Turn Signal Light Bulb Replacement
B718H19206015
CAUTION
!
When you touch the bulb with your bare
hands, clean the bulb with a cloth moistened
with alcohol or soap water to prevent
premature bulb failure.
1) Remove the lens by removing the screw.
2) Replace the bulb (1).
3) Reinstall the lens.
Reflex Refractor Construction
B718H19206016
1
2
I718H1920028-01
3
I718H1920029-02
I718H1920030-01
1
I718H1920031-01
(a)
1
(a)
(b)
2
3
4
I718H1920044-05
1. Front reflex refractor (For E-03, 24, 28, 33) 3. Rear reflex refractor (For E-03, 28, 33) : 1.8 N⋅m (0.18 kgf-m, 1.3 lb-ft)
2. Front fork 4. Rear fender : 4.5 N⋅m (0.45 kgf-m, 3.25 lb-ft)

Suzuki GSF1250 Specifications

General

Displacement	1255 cc
Bore x Stroke	79.0 mm x 64.0 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Transmission	6-speed, constant mesh
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	180/55ZR17M/C (73W), tubeless
Overall Length	2130 mm
Overall Width	790 mm
Seat Height	805 mm
Wheelbase	1485 mm
Fuel Tank Capacity	19.0 L
Starter	Electric
Final Drive	Chain
Ignition	Electronic ignition (transistorized)
Engine Type	4-stroke, liquid-cooled, DOHC
Ground Clearance	135 mm
