Suzuki GSF1250 Service Manual

4E-17 ABS:

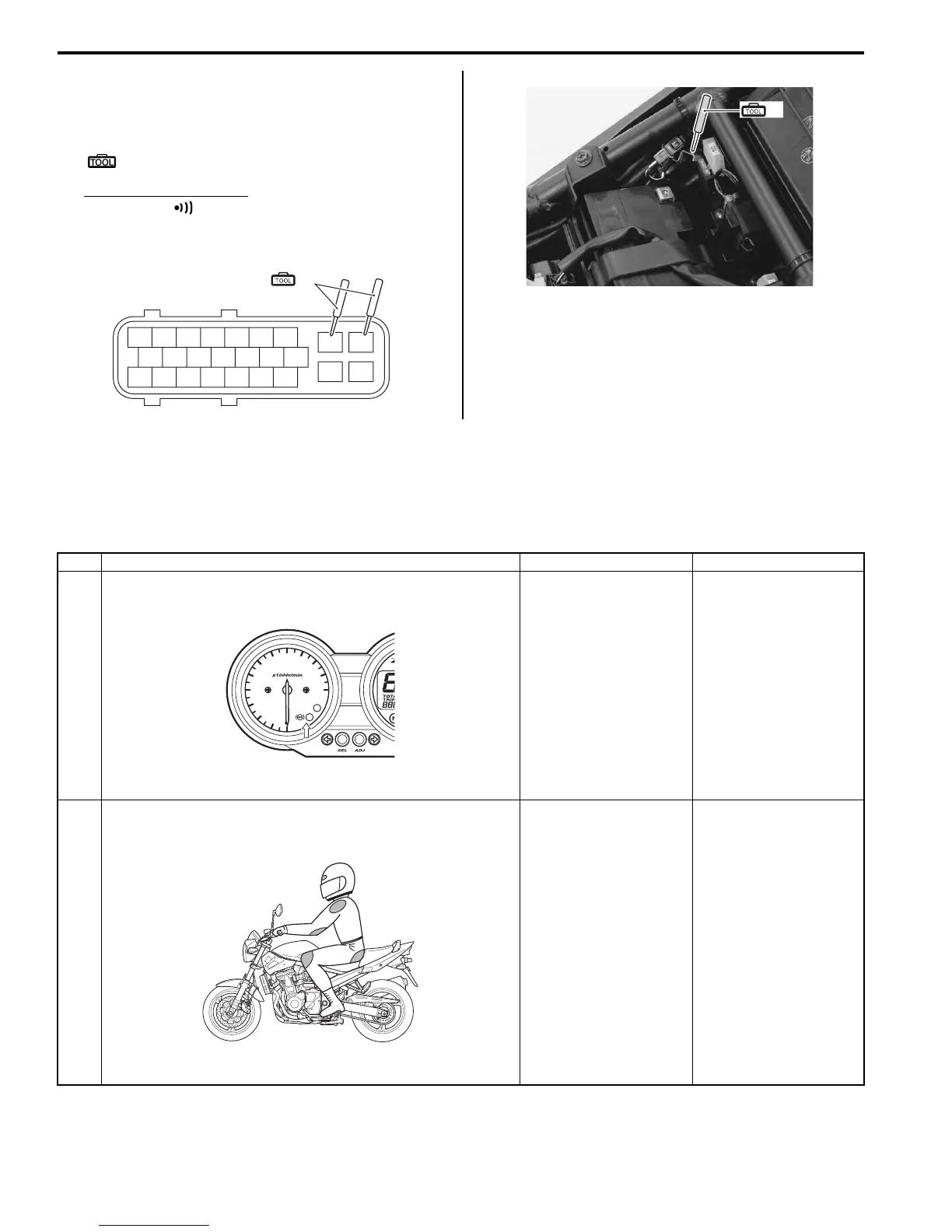

7) Check for continuity between “24” (B/W) at the
coupler and the battery (–) terminal, also “25” (B/W)
at the coupler and the battery (–) terminal.
Special tool
(A): 09900–25008 (Multi-circuit tester set)
Tester knob indication
Continuity ( )
ABS control unit coupler (Harness end)
ABS Indicator Light Inspection
B718H14504020
Wiring Diagram
Refer to “ABS Unit Diagram (Page 4E-8)”.
Troubleshooting
24 25
18
10
12 13
16
2
3
4
21
89
(A)
I718H1450030-03
(A)
I718H1450125-01
Step Action Yes No
1 1) Check if the ABS indicator light lights up when turning
the ignition switch ON.
Does the ABS indicator light up?
Go to Step 2. Go to Step 3.
2 (The ABS indicator light lights up)
1) Ride the motorcycle at more than 10 km/h (6.2 mile/h).
Does the ABS indicator light go off?
Normal (No DTC exists) • DTC output (Refer to
“DTC (Diagnostic
Trouble Code) Output
(Page 4E-23)”)
• If DTC can not be
output (the ABS
indicator light does
not flash), go to Step
7.
FI
I718H1450122-04
I718H1450033-02

Suzuki GSF1250 Specifications

General

Displacement	1255 cc
Bore x Stroke	79.0 mm x 64.0 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Transmission	6-speed, constant mesh
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	180/55ZR17M/C (73W), tubeless
Overall Length	2130 mm
Overall Width	790 mm
Seat Height	805 mm
Wheelbase	1485 mm
Fuel Tank Capacity	19.0 L
Starter	Electric
Final Drive	Chain
Ignition	Electronic ignition (transistorized)
Engine Type	4-stroke, liquid-cooled, DOHC
Ground Clearance	135 mm
