Suzuki GSF1250 Service Manual

1D-86 Engine Mechanical:
NOTE
Required service material is also described in the following.
“Throttle Body Components (Page 1D-7)”
Special Tool
B718H11408002
Thread lock cement THREAD LOCK CEMENT SUPER
1303 or equivalent
P/No.: 99000–32030 )(Page 1D-22) /
)(Page 1D-38) /
)(Page 1D-70)
THREAD LOCK CEMENT SUPER
1322 or equivalent
P/No.: 99000–32110 )(Page 1D-62) /
)(Page 1D-62) /
)(Page 1D-65) /
)(Page 1D-68) /
)(Page 1D-70)

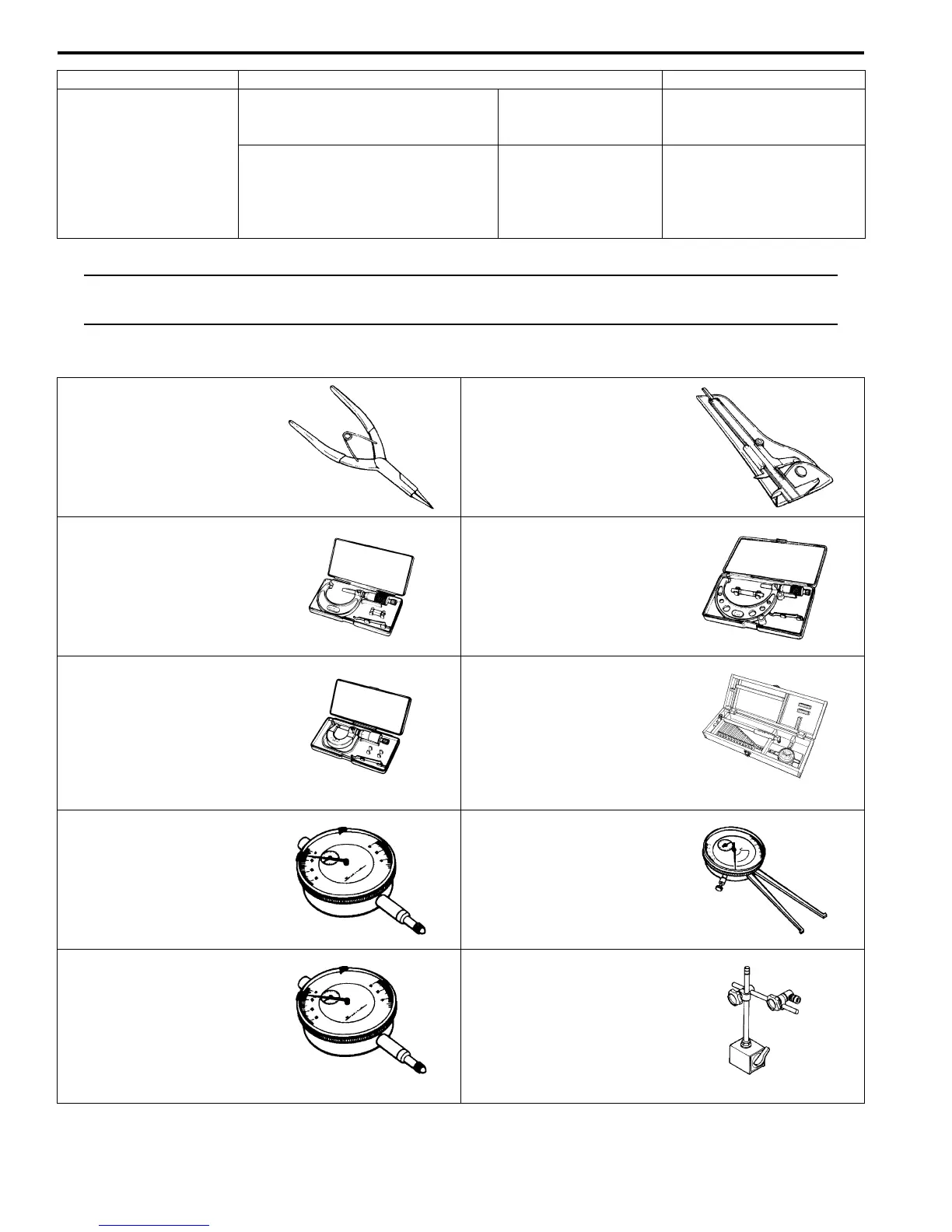

Material SUZUKI recommended product or Specification Note
09900–06107 09900–20102
Snap ring pliers Vernier calipers (1/20 mm,
200 mm)
)(Page 1D-54) /
)(Page 1D-55) /
)(Page 1D-71)
)(Page 1D-44) /
)(Page 1D-45) /
)(Page 1D-53)
09900–20202 09900–20204
Micrometer (1/100 mm, 25 –
50 mm)
Micrometer (75 – 100 mm)
)(Page 1D-36) /
)(Page 1D-77) /
)(Page 1D-80)
)(Page 1D-52)
09900–20205 09900–20530
Micrometer (0 – 25 mm) Cylinder gauge set
)(Page 1D-37) /
)(Page 1D-45) /
)(Page 1D-52) /
)(Page 1D-53) /
)(Page 1D-75) /
)(Page 1D-81)
)(Page 1D-50)
09900–20602 09900–20605
Dial gauge (1/1000 mm, 1
mm)
Dial calipers (1/100 mm, 10
– 34 mm)
)(Page 1D-37) /
)(Page 1D-53) /
)(Page 1D-75)
)(Page 1D-75)
09900–20607 09900–20701
Dial gauge (1/100 mm, 10
mm)
Magnetic stand
)(Page 1D-36) /
)(Page 1D-44) /
)(Page 1D-44) /
)(Page 1D-45) /
)(Page 1D-76)
)(Page 1D-36) /
)(Page 1D-44) /
)(Page 1D-44) /
)(Page 1D-45) /
)(Page 1D-76)

Suzuki GSF1250 Specifications

General

Displacement	1255 cc
Bore x Stroke	79.0 mm x 64.0 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Transmission	6-speed, constant mesh
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	180/55ZR17M/C (73W), tubeless
Overall Length	2130 mm
Overall Width	790 mm
Seat Height	805 mm
Wheelbase	1485 mm
Fuel Tank Capacity	19.0 L
Starter	Electric
Final Drive	Chain
Ignition	Electronic ignition (transistorized)
Engine Type	4-stroke, liquid-cooled, DOHC
Ground Clearance	135 mm
