Suzuki GSF1250 Service Manual

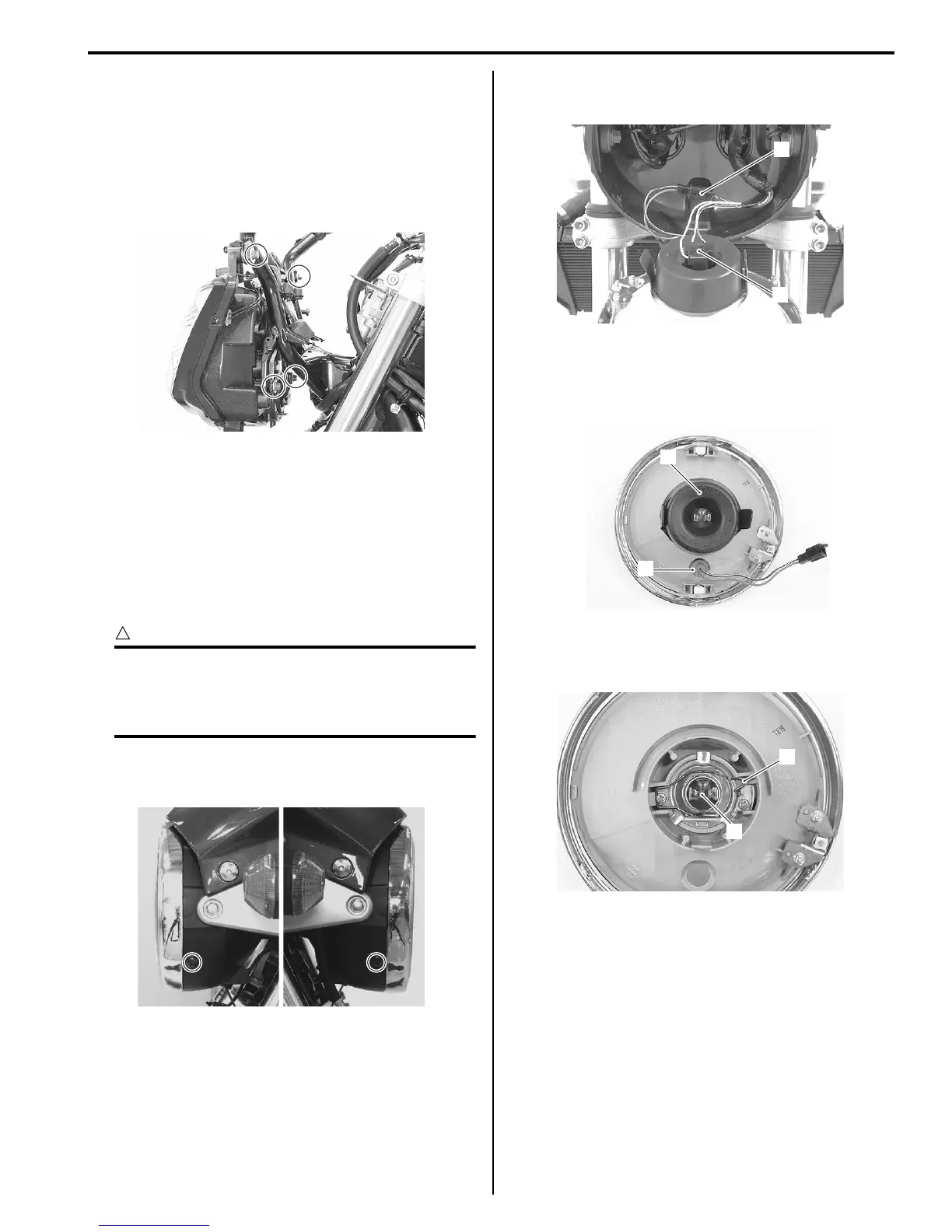

Lighting Systems: 9B-3
GSF1250S/SA
Removal
1) Remove the cowling. Refer to “Exterior Parts
Removal and Installation in Section 9D (Page 9D-
6)”.
2) Disconnect the headlight and position light couplers.
3) Remove the headlight assembly.
Installation
Installation is in the reverse order of removal. Pay
attention to the following point:
• After installing, be sure to inspect the headlight beam.
Refer to “Headlight Beam Adjustment (Page 9B-5)”.
Headlight Bulb Replacement
B718H19206025
CAUTION
!
When you touch the bulb with your bare
hands, clean the bulb with a cloth moistened
with alcohol or soap water to prevent
premature bulb failure.
GSF1250/A
1) Remove the headlight mounting screws.
2) Disconnect the headlight coupler (1) and position
light coupler (2).
3) Remove the position light socket (3) and replace the
position light bulb.
4) Remove the bulb socket rubber cap (4).
5) Replace the headlight bulb (6) by unhooking the bulb
holder spring (5).
I718H1920002-01
I718H1920006-01
1
2
I718H1920014-01
4
3
I718H1920015-01
6
5
I718H1920016-01

Suzuki GSF1250 Specifications

General

Displacement	1255 cc
Bore x Stroke	79.0 mm x 64.0 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Transmission	6-speed, constant mesh
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	180/55ZR17M/C (73W), tubeless
Overall Length	2130 mm
Overall Width	790 mm
Seat Height	805 mm
Wheelbase	1485 mm
Fuel Tank Capacity	19.0 L
Starter	Electric
Final Drive	Chain
Ignition	Electronic ignition (transistorized)
Engine Type	4-stroke, liquid-cooled, DOHC
Ground Clearance	135 mm
