9E-4 Body Structure:
Side-stand Removal and Installation
B718H19506007
Removal
1) Support the motorcycle with the center stand.
2) Remove the side-stand as shown in the side-stand construction. Refer to “Side-stand Construction (Page 9E-3)”.
Installation
Install the side-stand as shown in the side-stand construction. Refer to “Side-stand Construction (Page 9E-3)”.
Center Stand Construction
B718H19506008
Center Stand Removal and Installation
B718H19506009
Removal
1) Support the motorcycle using a jack.
CAUTION
!
Make sure that the motorcycle is supported securely.
2) Remove the center stand as shown in the center stand construction. Refer to “Center Stand Construction
(Page 9E-4)”.
Installation
Install the center stand as shown in the center stand construction. Refer to “Center Stand Construction (Page 9E-4)”.

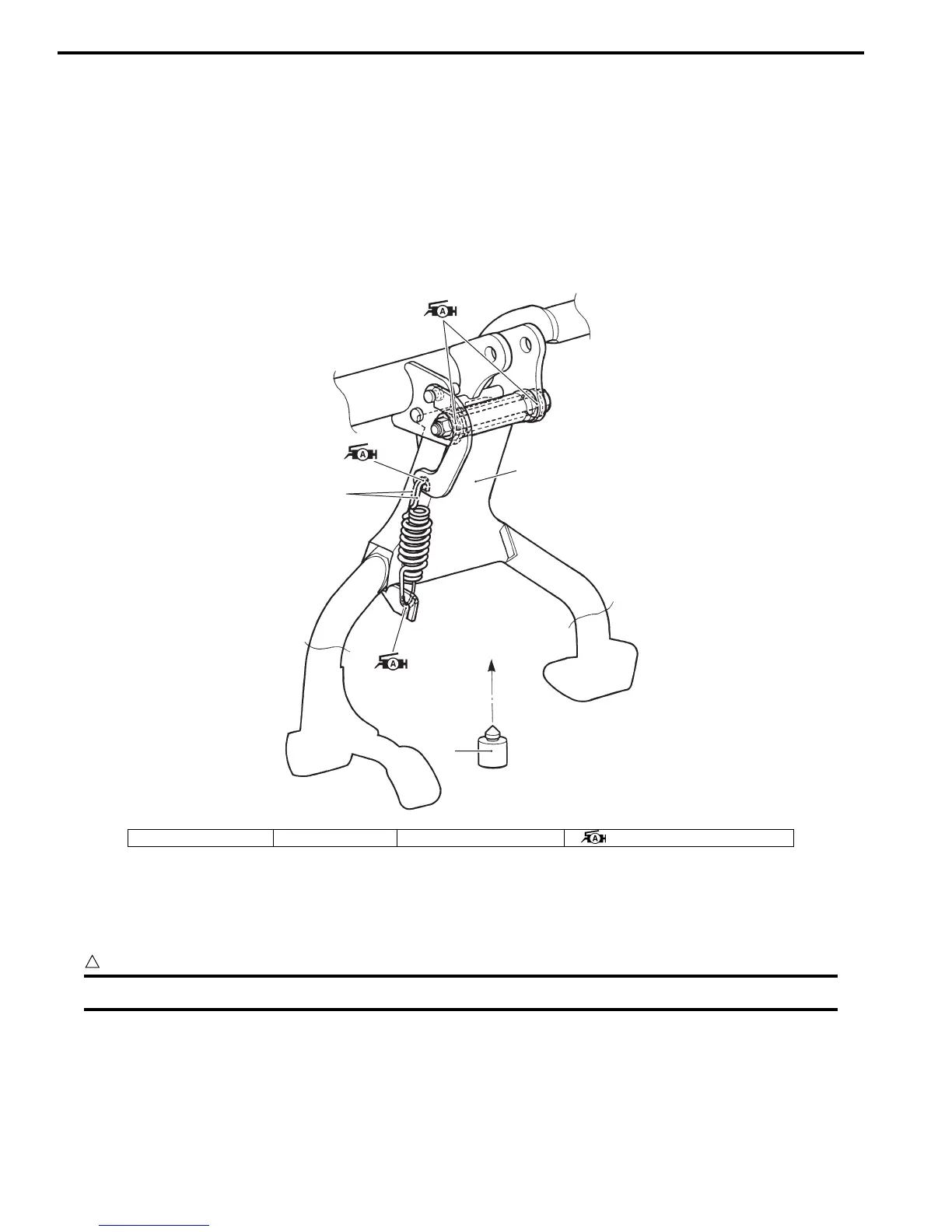

1. Center stand 2. Spring 3. Center stand cushion : Apply grease to sliding surface.
2
1
3
I718H1950002-02
