Suzuki GSF1250 Service Manual

Lighting Systems: 9B-9

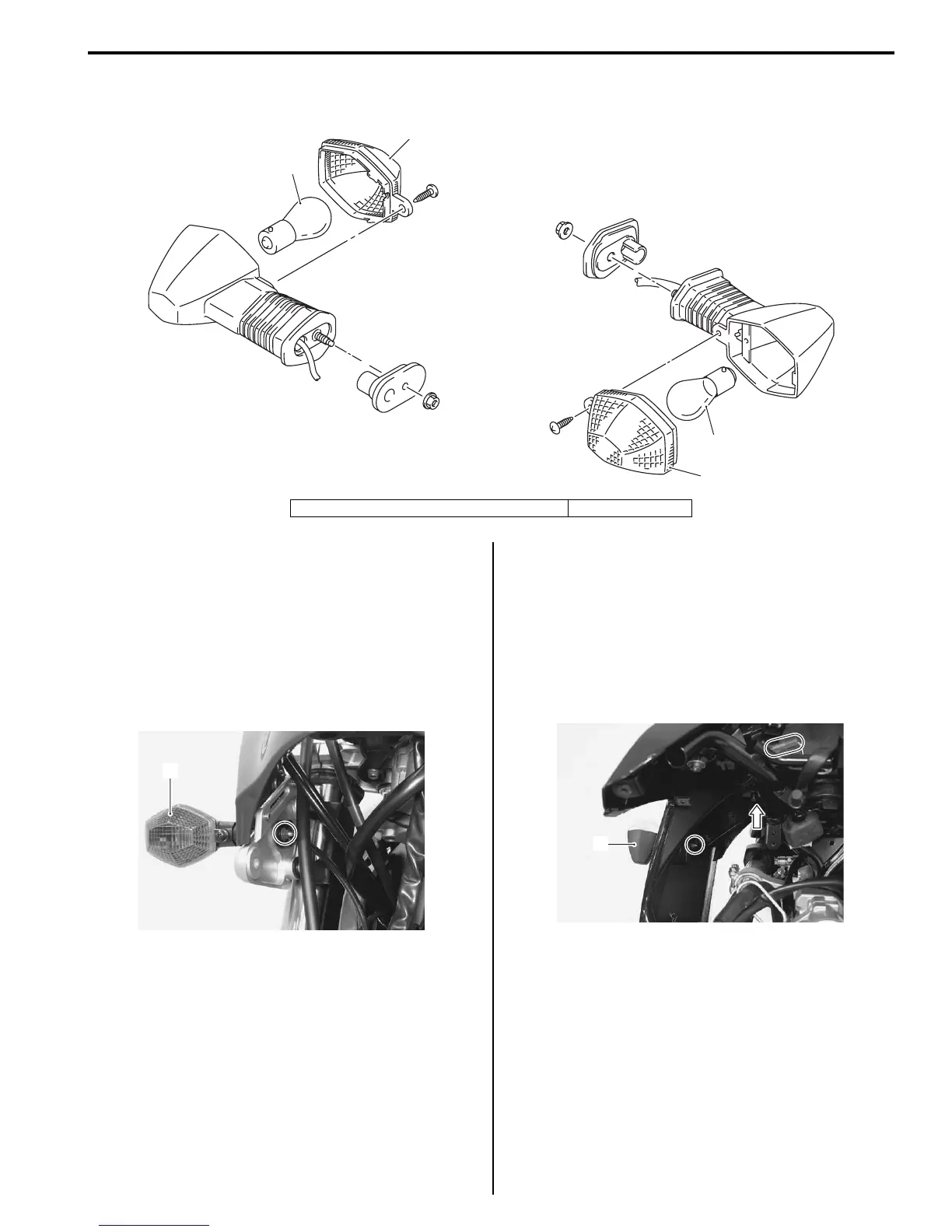

Turn Signal Light Components
B718H19206012
Front Turn Signal Light Removal and
Installation
B718H19206013
GSF1250/A
Removal
1) Remove the headlight housing. Refer to “Headlight
Removal and Installation (Page 9B-2)”.
2) Remove the front turn signal light (1) by removing
the nut.
Installation
Install the front turn signal light in the reverse order of
removal.
GSF1250S/SA
Removal
1) Remove the wind screen and upper panel. Refer to
“Exterior Parts Removal and Installation in Section
9D (Page 9D-6)”.
2) Disconnect the turn signal light coupler and clamp.
3) Remove the front turn signal light (1) by removing
the nut.
Installation
Install the front turn signal light in the reverse order of
removal.
2
2
1
1
I649G1920028-04
1. Turn signal light bulb (12 V 21 W x 4) 2. Lens
1
I718H1920027-01
1
I718H1920050-02

Suzuki GSF1250 Specifications

General

Displacement	1255 cc
Bore x Stroke	79.0 mm x 64.0 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Transmission	6-speed, constant mesh
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	180/55ZR17M/C (73W), tubeless
Overall Length	2130 mm
Overall Width	790 mm
Seat Height	805 mm
Wheelbase	1485 mm
Fuel Tank Capacity	19.0 L
Starter	Electric
Final Drive	Chain
Ignition	Electronic ignition (transistorized)
Engine Type	4-stroke, liquid-cooled, DOHC
Ground Clearance	135 mm
