Suzuki GSF1250 Service Manual

1G-9 Fuel System:

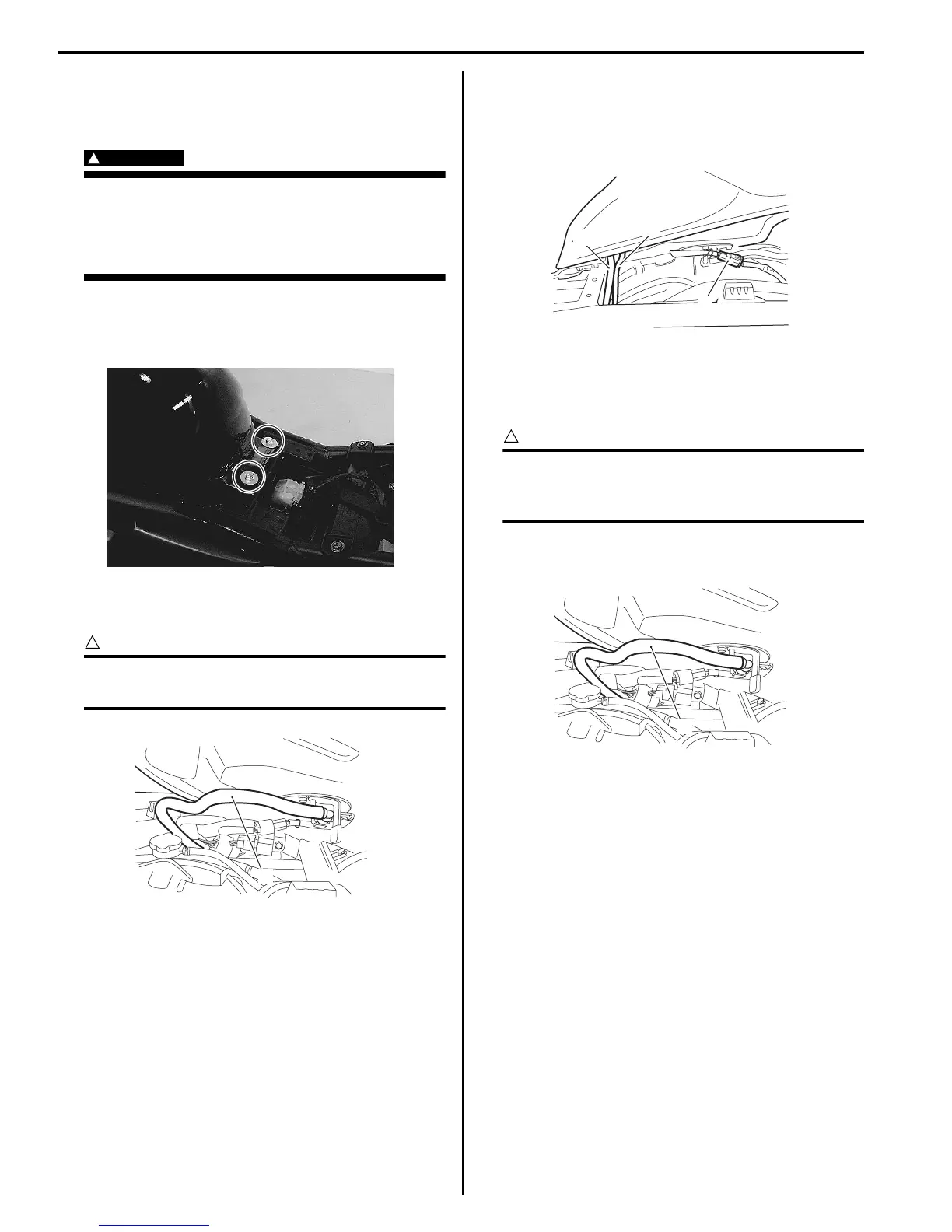

Fuel Tank Removal and Installation
B718H11706002
Removal
WARNING
!
• Keep away from fire or spark.
• Spilled gasoline should be wiped off
immediately.
• Work in a well-ventilated area.
1) Remove the seat. Refer to “Exterior Parts Removal
and Installation in Section 9D (Page 9D-6)”.
2) Remove the fuel tank mounting bolts.
3) Place a rag under the fuel feed hose and disconnect
the fuel feed hose (1).
CAUTION
!
When removing the fuel tank, do not leave
the fuel feed hose (1) on the fuel pump side.
4) Disconnect the fuel tank breather hose (2) and drain
hose (3).
5) Disconnect the fuel pump lead wire coupler (4).
6) Remove the fuel tank.
Installation
Install the fuel tank in the reverse order of removal. Pay
attention to the following points:
CAUTION
!
Be careful not to bend the hoses. Refer to
“Fuel Tank Drain Hose and Breather Hose
Routing Diagram (Page 1G-3)”.
• Connect the fuel feed hose (1) until it locks securely (a
click is heard).
I718H1170021-01
1
I718H1170017-04
3
2
4
I718H1170042-01
1
I718H1170017-04

Suzuki GSF1250 Specifications

General

Displacement	1255 cc
Bore x Stroke	79.0 mm x 64.0 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Transmission	6-speed, constant mesh
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	180/55ZR17M/C (73W), tubeless
Overall Length	2130 mm
Overall Width	790 mm
Seat Height	805 mm
Wheelbase	1485 mm
Fuel Tank Capacity	19.0 L
Starter	Electric
Final Drive	Chain
Ignition	Electronic ignition (transistorized)
Engine Type	4-stroke, liquid-cooled, DOHC
Ground Clearance	135 mm
