Suzuki GSF1250 Service Manual

Wheels and Tires: 2D-12

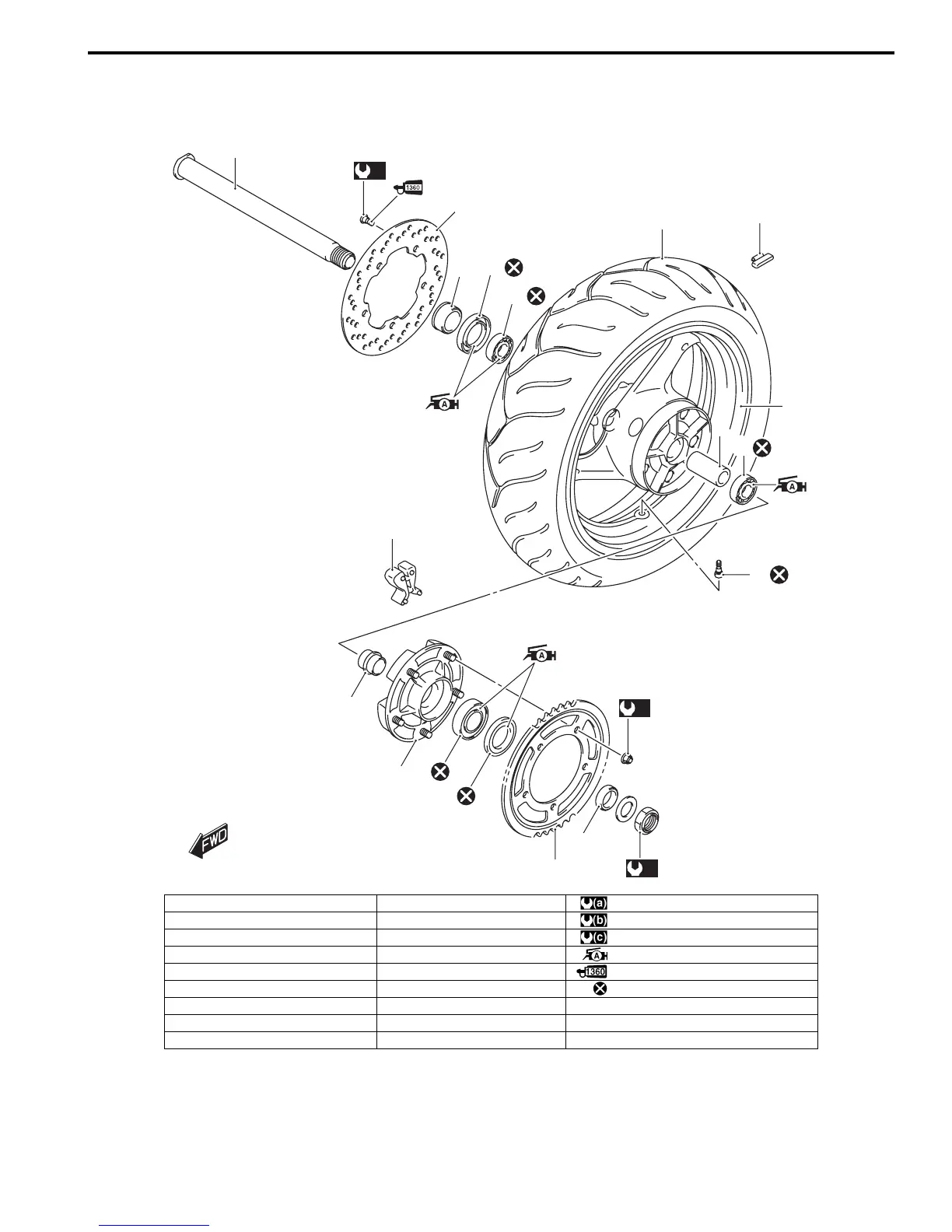

Rear Wheel Components
B718H12406006
GSF1250/S
14
(c)
13
17
18
15
8
9
16
7
6
5
(b)
2
(a)
1
4
3
12
11
10
I718H1240024-03
1. Spacer 10. Bearing : 100 N⋅m (10.0 kgf-m, 72.5 lb-ft)
2. Rear sprocket 11. Dust seal : 60 N⋅m (6.0 kgf-m, 43.5 lb-ft)
3. Dust seal 12. Collar : 23 N⋅m (2.3 kgf-m, 16.5 lb-ft)
4. Bearing 13. Rear brake disc : Apply grease.
5. Sprocket mounting drum 14. Rear axle : Apply thread lock to thread part.
6. Retainer 15. Rear wheel : Do not reuse.
7. Wheel damper 16. Air valve
8. Bearing 17. Tire
9. Spacer 18. Wheel balancer

Suzuki GSF1250 Specifications

General

Displacement	1255 cc
Bore x Stroke	79.0 mm x 64.0 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Transmission	6-speed, constant mesh
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	180/55ZR17M/C (73W), tubeless
Overall Length	2130 mm
Overall Width	790 mm
Seat Height	805 mm
Wheelbase	1485 mm
Fuel Tank Capacity	19.0 L
Starter	Electric
Final Drive	Chain
Ignition	Electronic ignition (transistorized)
Engine Type	4-stroke, liquid-cooled, DOHC
Ground Clearance	135 mm
