Suzuki GSF1250 Service Manual

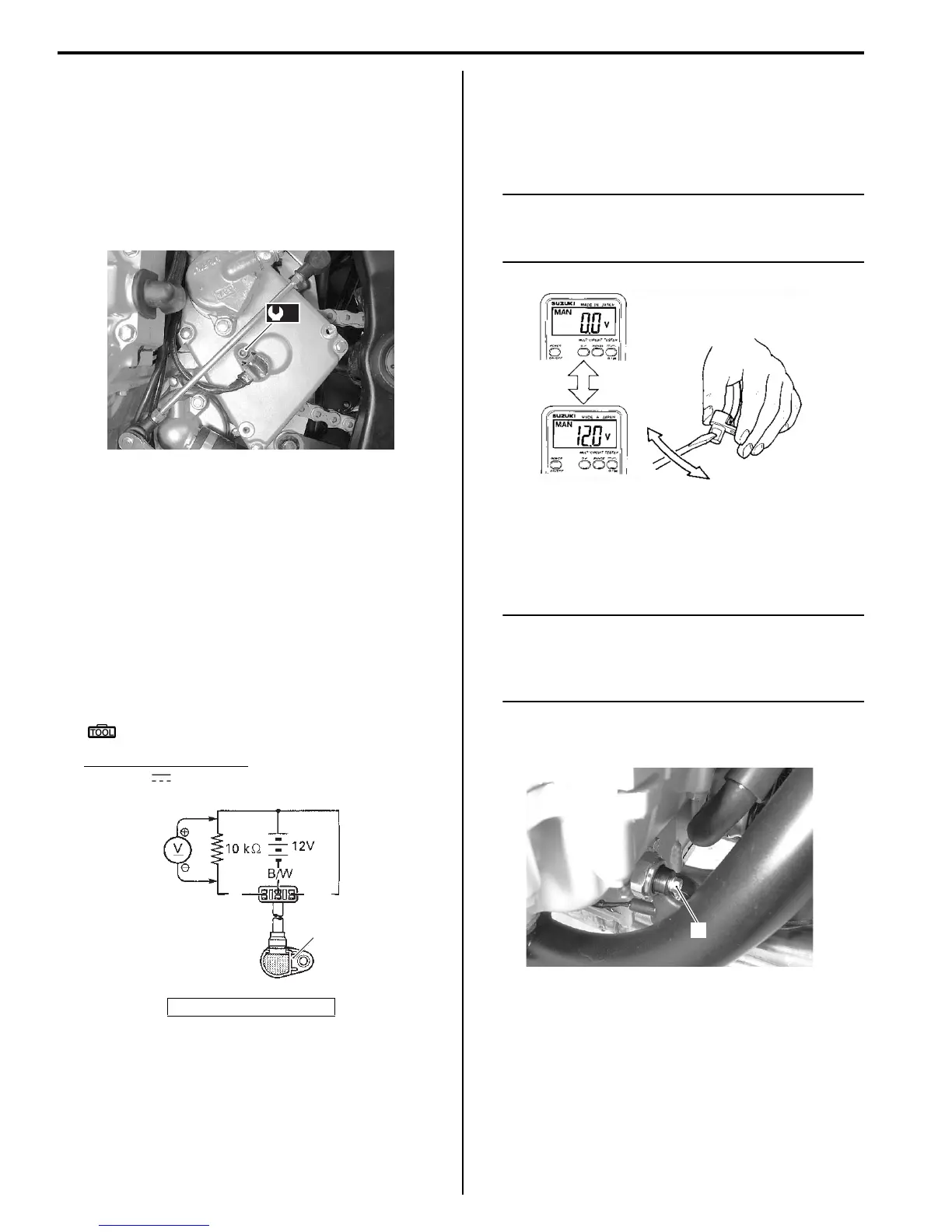

9C-9 Combination Meter / Fuel Meter / Horn:
Installation
Install the speed sensor in the reverse order of removal.
Pay attention to the following points:
• Tighten the speed sensor mounting bolt to the
specified torque.
Tightening torque
Speed sensor bolt (a): 6.5 N·m (0.65 kgf-m, 4.7 lb-
ft)
• Route the speed sensor lead wire. Refer to “Wiring
Harness Routing Diagram in Section 9A (Page 9A-8)”.
Speed Sensor Inspection
B718H19306022
Inspect the speed sensor in the following procedures:
1) Remove the speed sensor. Refer to “Speed Sensor
Removal and Installation (Page 9C-8)”.
2) Connect a 12 V battery (between B and B/W), 10 kΩ
resistor (between B/R and B) and multi-circuit tester
(tester (+) probe to B and tester (–) probe to B/R) as
shown.
Special tool
: 09900–25008 (Multi-circuit tester set)
Tester knob indication
Voltage ( )
3) Move a screwdriver back and forth across the pick-
up surface of the speed sensor. The voltage
readings should cycle as follows (0 V → 12 V or 12 V
→ 0 V). If the voltage reading does not change,
replace the speed sensor with a new one.
NOTE
While testing, the highest voltage reading
should be the same as the battery voltage (12
V).
Oil Pressure Indicator Inspection
B718H19306023
Inspect the oil pressure indicator in the following
procedures:
NOTE
Before inspecting the oil pressure switch,
check if the engine oil level is correct. Refer
to “Engine Oil and Filter Replacement in
Section 0B (Page 0B-10)”.
1) Disconnect the oil pressure switch lead wire (1) from
the oil pressure switch.
1. Speed sensor
(a)
I718H1930044-03
B
1
B/R
I649G1930016-02
I649G1930017-02
1
I718H1930039-01

Suzuki GSF1250 Specifications

General

Displacement	1255 cc
Bore x Stroke	79.0 mm x 64.0 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Transmission	6-speed, constant mesh
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	180/55ZR17M/C (73W), tubeless
Overall Length	2130 mm
Overall Width	790 mm
Seat Height	805 mm
Wheelbase	1485 mm
Fuel Tank Capacity	19.0 L
Starter	Electric
Final Drive	Chain
Ignition	Electronic ignition (transistorized)
Engine Type	4-stroke, liquid-cooled, DOHC
Ground Clearance	135 mm
