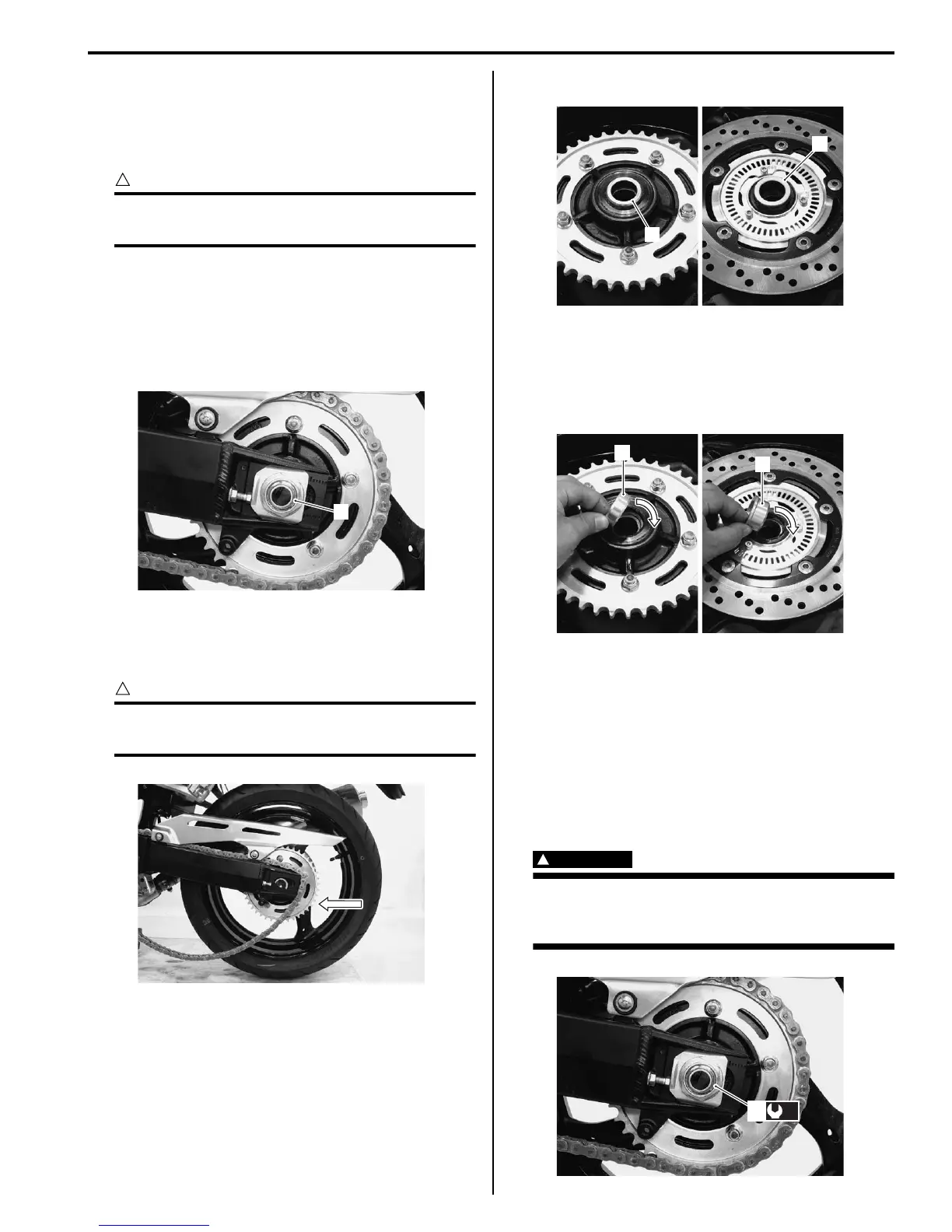

Suzuki GSF1250 Service Manual

Wheels and Tires: 2D-16
Rear Wheel Assembly Removal and Installation
B718H12406008
Removal
1) Support the motorcycle with the center stand.
CAUTION
!
Make sure that the motorcycle is supported
securely.
2) Remove the rear wheel speed sensor by removing
the mounting bolts. (GSF1250A/SA) Refer to “Rear
Wheel Speed Sensor Removal and Installation in
Section 4E (Page 4E-71)”.
3) Remove the rear axle nut (1) and draw out the rear
axle.
4) Remove the rear axle and disengage the drive chain
from the rear sprocket.
5) Remove the rear wheel assembly.
CAUTION
!
Do not operate the rear brake pedal with the
rear wheel removed.
6) Remove the spacer (2) and collar (3).
Installation
Refer to “Wheel Speed Sensor and Sensor Rotor
Inspection in Section 4E (Page 4E-74)”.
1) Install the spacer (1) and collar (2).
2) Install the rear wheel with the rear axle and tighten
the rear axle nut temporarily.
3) Adjust the drive chain slack after installing the rear
wheel. Refer to “Drive Chain Inspection and
Adjustment in Section 0B (Page 0B-15)”.
4) Tighten the rear axle nut (3) to the specified torque.
Tightening torque
Rear axle nut (a): 100 N·m (10.0 kgf-m, 72.5 lb-
ft)
WARNING
!
After remounting the rear wheel, pump the
brake pedal several times to check for proper
brake operation.
1
I718H1240029-01
I718H1240030-02
2
3
I718H1240031-01
1
2
I718H1240033-01
(a)
3
I718H1240034-01
