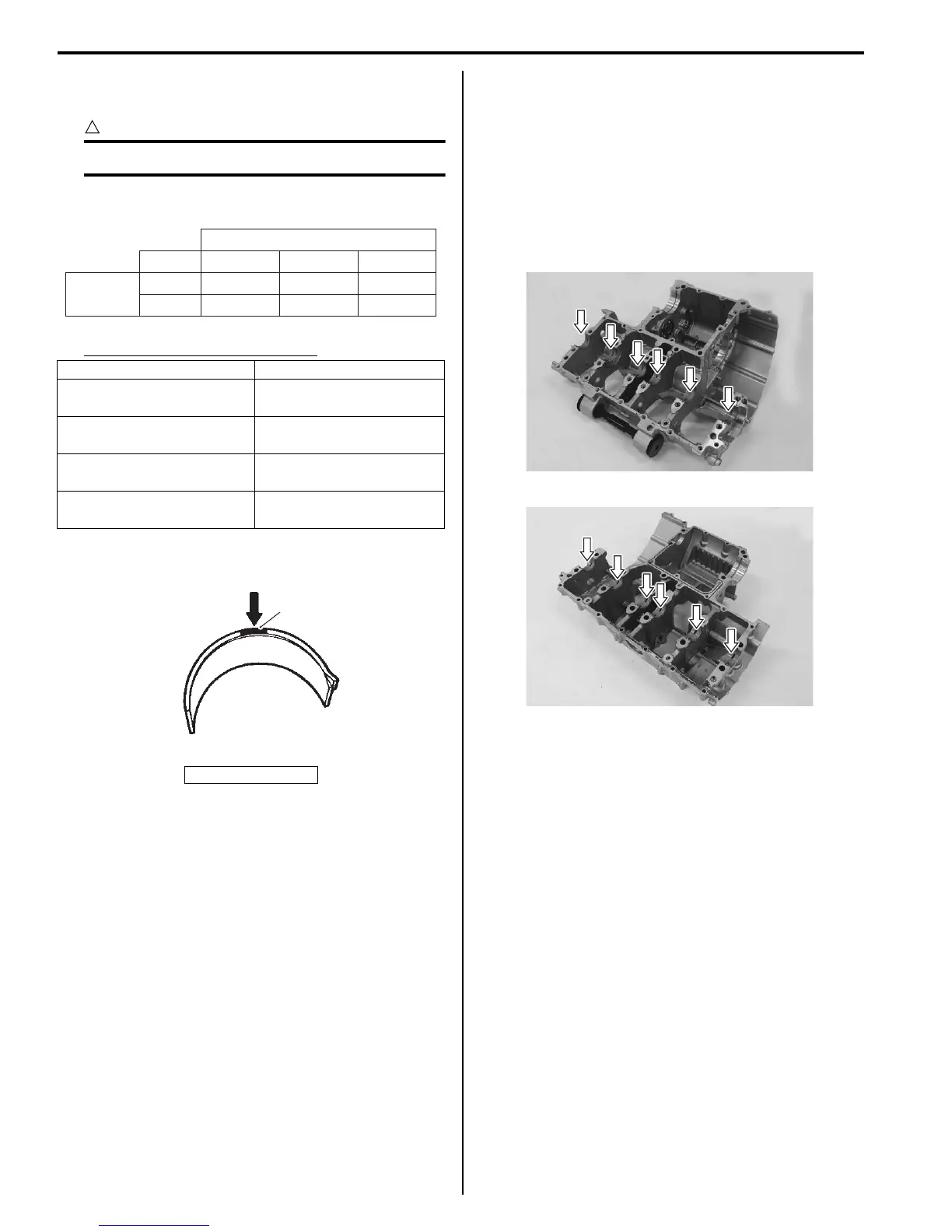

1D-78 Engine Mechanical:
4) Select the specified bearings from the bearing
selection table.
CAUTION
!
The bearings should be replaced as a set.
Bearing selection table
Bearing thickness specification
Crankshaft Journal Bearing Inspection and
Selection
B718H11406029
Refer to “Engine Bottom Side Disassembly (Page 1D-
53)”.
Refer to “Engine Bottom Side Assembly (Page 1D-61)”.
Inspection
1) Inspect each upper and lower crankcase bearing for
any damage.
Color “C” (Part No.) Thickness
Green
(12164-46E01-0A0)
1.480 – 1.484 mm
(0.0583 – 0.0584 in)
Black
(12164-46E01-0B0)
1.484 – 1.488 mm
(0.0584 – 0.0586 in)
Brown
(12164-46E01-0C0)
1.488 – 1.492 mm
(0.0586 – 0.0587 in)
Yellow
(12164-46E01-0D0)
1.492 – 1.496 mm
(0.0587 – 0.0589 in)
“C”: Color code
Conrod
I.D. “A”
Code
1
2
1
Green
Black
2
Black
Brown
3
Brown
Yellow
Crank pin O.D. “B
I718H1140293-01
“C”
I649G1140336-02
I718H1140294-01
I718H1140295-01
