4A-13 Brake Control System and Diagnosis:
Rear Brake Hose Removal and Installation
B718H14106019
GSF1250/S
Removal
1) Remove the right frame cover. Refer to “Exterior
Parts Removal and Installation in Section 9D
(Page 9D-6)”.
2) Drain brake fluid. Refer to “Brake Fluid Replacement
(Page 4A-10)”.
3) Remove the rear brake hoses as shown in the rear
brake hose routing diagram. Refer to “Rear Brake
Hose Routing Diagram (Page 4A-5)”.
Installation
CAUTION
!
The seal washers should be replaced with the
new ones to prevent fluid leakage.
1) Install the front brake hose as shown in the rear
brake hose routing diagram. Refer to “Rear Brake
Hose Routing Diagram (Page 4A-5)”.
2) Bleed air from the rear brake system. Refer to “Air
Bleeding from Brake Fluid Circuit (Page 4A-8)”.
3) Reinstall the removed parts.
GSF1250A/SA
Removal
1) Remove the right frame cover. Refer to “Exterior
Parts Removal and Installation in Section 9D
(Page 9D-6)”.
2) Remove the seat, battery and battery case. Refer to
“ABS Control Unit/HU Removal and Installation in
Section 4E (Page 4E-74)”.
3) Drain brake fluid. Refer to “Brake Fluid Replacement
(Page 4A-10)”.

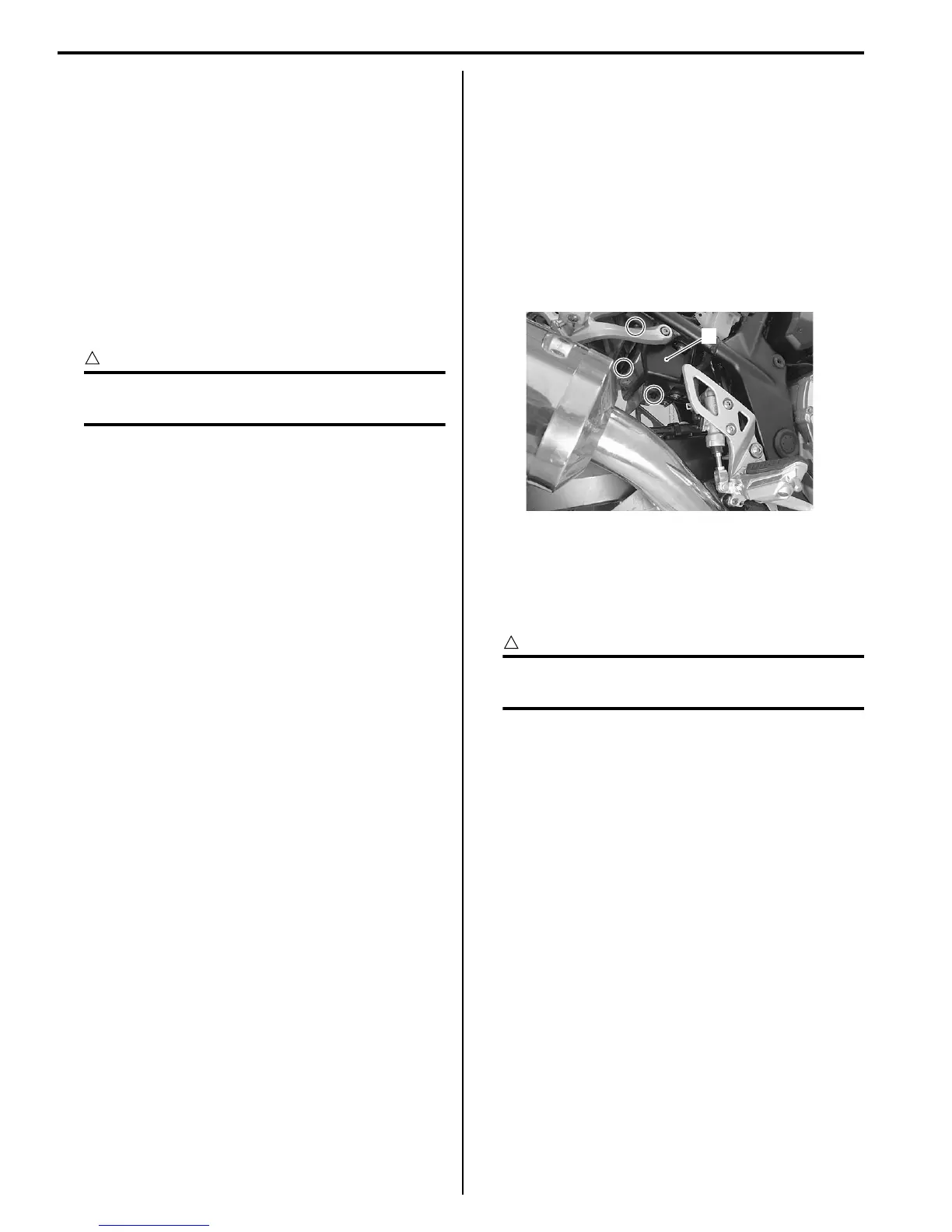

4) Remove the fender lower cover (1).
5) Remove the rear brake hose as shown in the rear
brake hose routing diagram. Refer to “Rear Brake
Hose Routing Diagram (Page 4A-5)”.
Installation
CAUTION
!
The seal washers should be replaced with the
new ones to prevent fluid leakage.
1) Install the rear brake hose as shown in the rear
brake hose routing diagram. Refer to “Rear Brake
Hose Routing Diagram (Page 4A-5)”.
2) Bleed air from the rear brake system. Refer to “Air
Bleeding from Brake Fluid Circuit (Page 4A-8)”.
3) Reinstall the removed parts.
