Suzuki GSF1250 Service Manual

Front Brakes: 4B-2
Front Brake Pad Inspection
B718H14206002

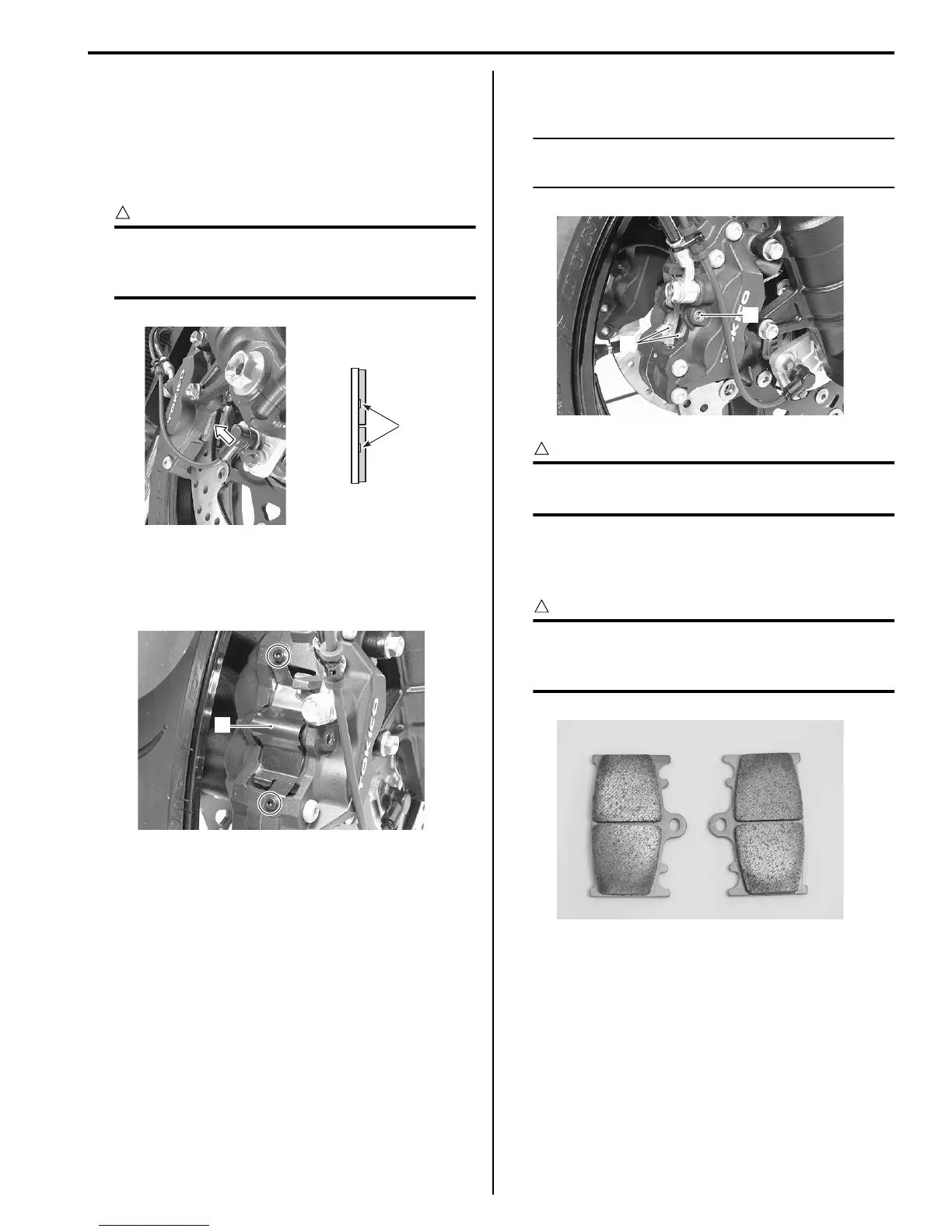

The extent of brake pads wear can be checked by
observing the grooved limit line “A” on the pads. When
the wear exceeds the grooved limit line, replace the
pads with new ones. Refer to “Front Brake Pad
Replacement (Page 4B-2)”.
CAUTION
!
Replace the brake pad as a set, otherwise
braking performance will be adversely
affected.
Front Brake Pad Replacement
B718H14206003
1) Remove the spring (1).
2) Remove the brake pads (2) by removing the pad
mounting pin (3).
NOTE
When removing the pads, push the piston all
the way into the brake caliper.
CAUTION
!
Do not operate the brake lever while
dismounting the pads.
3) Clean up the caliper especially around the caliper
piston.
4) Install the new brake pads.
CAUTION
!
Replace the brake pads as a set, otherwise
braking performance will be adversely
affected.
“A”
I718H1420001-03
1
I718H1420011-01
3
2
I718H1420012-03
I718H1420003-01

Suzuki GSF1250 Specifications

General

Displacement	1255 cc
Bore x Stroke	79.0 mm x 64.0 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Transmission	6-speed, constant mesh
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	180/55ZR17M/C (73W), tubeless
Overall Length	2130 mm
Overall Width	790 mm
Seat Height	805 mm
Wheelbase	1485 mm
Fuel Tank Capacity	19.0 L
Starter	Electric
Final Drive	Chain
Ignition	Electronic ignition (transistorized)
Engine Type	4-stroke, liquid-cooled, DOHC
Ground Clearance	135 mm
