Suzuki GSF1250 Service Manual

Body Structure: 9E-1
Body and Acc essories
Body Structure
Repair Instructions
Body Frame Construction
B718H19506001
Engine Mounting Bracket Bushing Replacement
B718H19506002

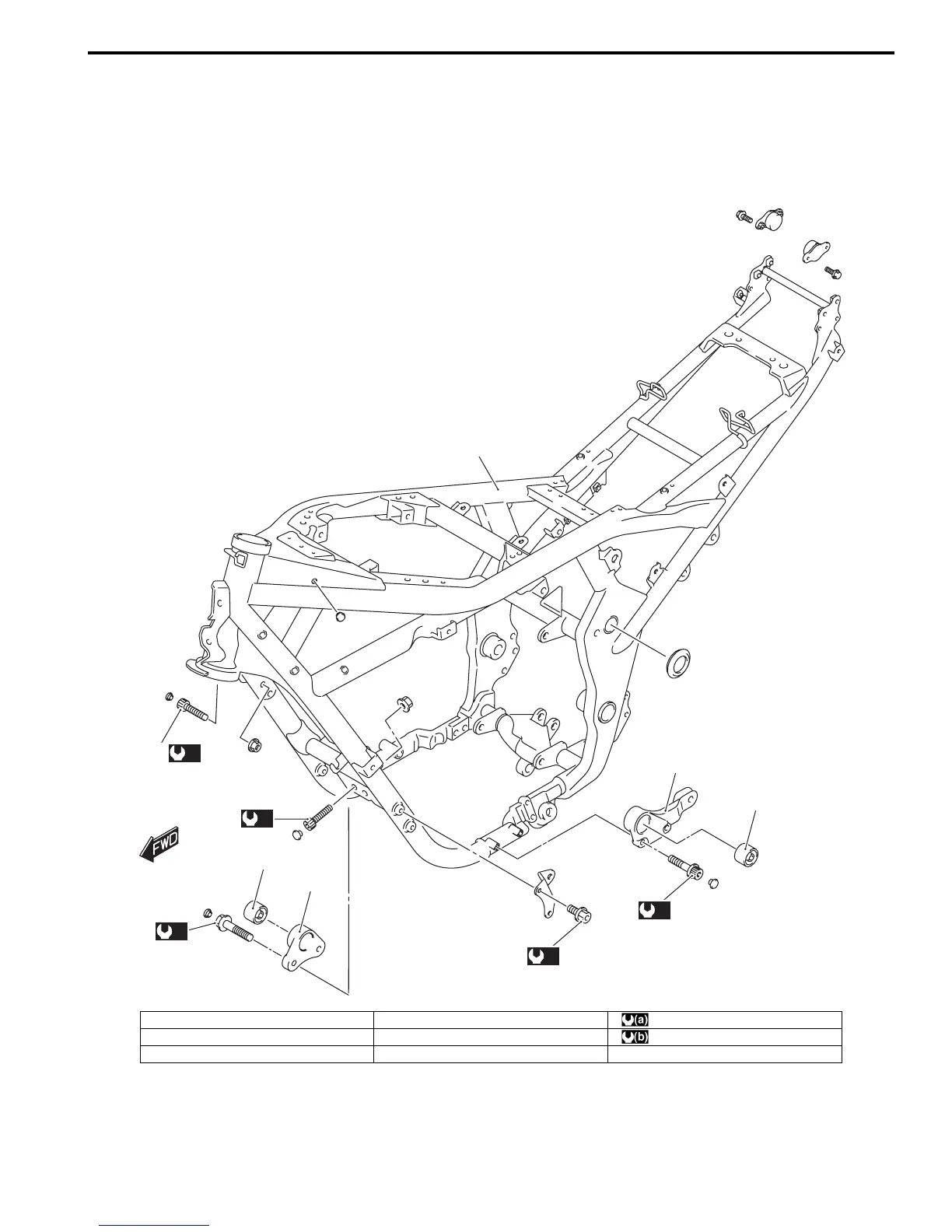

Replace the engine mounting bracket bushing if necessary, as shown in the body frame construction. Refer to “Body
Frame Construction (Page 9E-1)”.
1
(a)
2
(a)
2
6
(c)
4
(b)
3
(b)
4
6
5
5
I718H1950003-08
1. Frame 4. Bracket mounting bolt : 50 N⋅m (5.0 kgf-m, 36.0 lb-ft)
2. Frame down tube bolt 5. Engine mounting bracket bushing : 23 N⋅m (2.3 kgf-m, 16.5 lb-ft)
3. Engine mount No.1 bracket bolt 6. Engine mounting No.2 bracket

Suzuki GSF1250 Specifications

General

Displacement	1255 cc
Bore x Stroke	79.0 mm x 64.0 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Transmission	6-speed, constant mesh
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	180/55ZR17M/C (73W), tubeless
Overall Length	2130 mm
Overall Width	790 mm
Seat Height	805 mm
Wheelbase	1485 mm
Fuel Tank Capacity	19.0 L
Starter	Electric
Final Drive	Chain
Ignition	Electronic ignition (transistorized)
Engine Type	4-stroke, liquid-cooled, DOHC
Ground Clearance	135 mm
