Suzuki GSF1250 Service Manual

4C-2 Rear Brakes:
Rear Brake Pad Inspection
B718H14306002

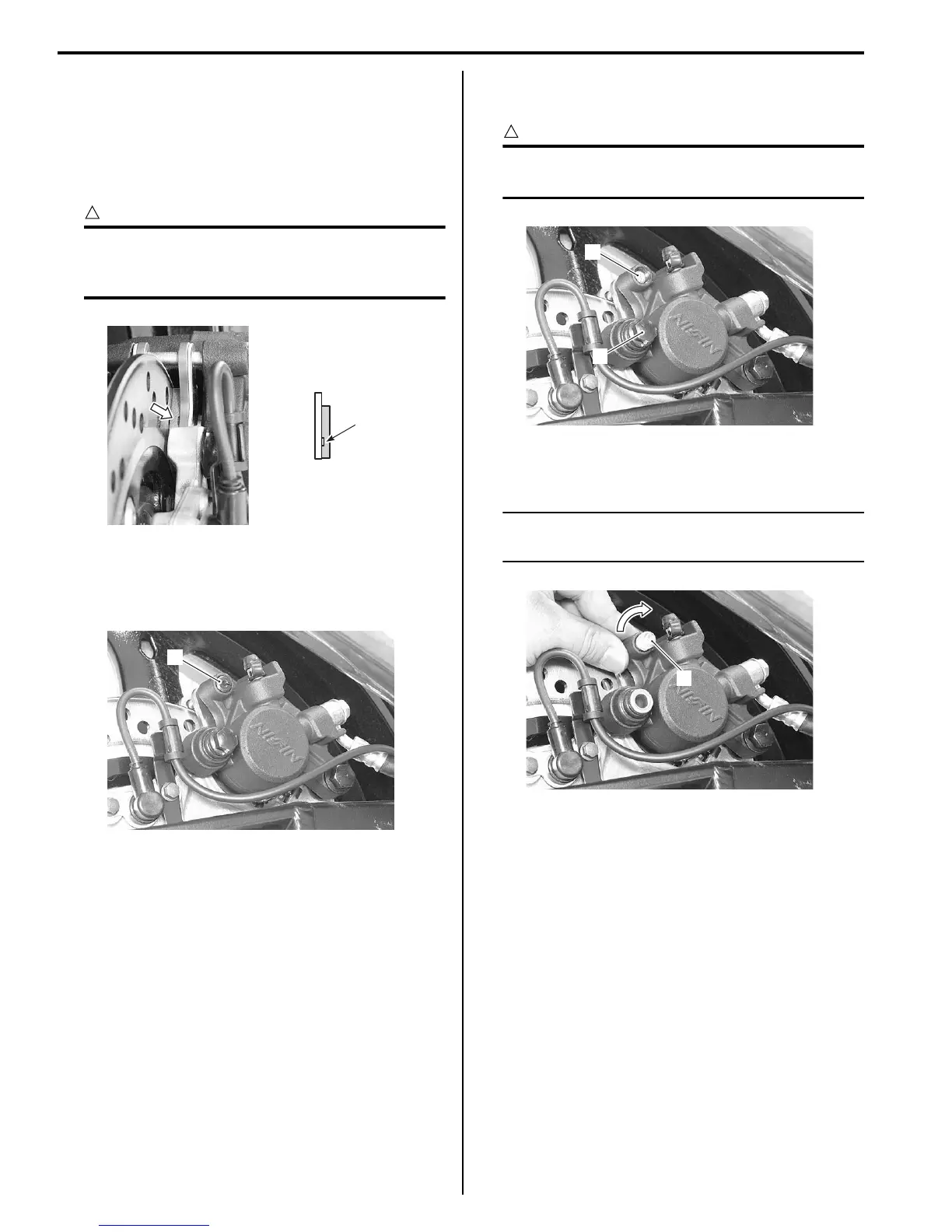

The extent of brake pads wear can be checked by
observing the grooved limit line “A” on the pads. When
the wear exceeds the grooved limit line, replace the
pads with new ones. Refer to “Rear Brake Pad
Replacement (Page 4C-2)”.
CAUTION
!
Replace the brake pad as a set, otherwise
braking performance will be adversely
affected.
Rear Brake Pad Replacement
B718H14306003
1) Remove the plug (1).
2) Loosen the pad mounting pin (2).
3) Remove the caliper mounting bolt (3).
CAUTION
!
Do not operate the brake pedal while
dismounting the pads.
4) Remove the pad mounting pin (2) and brake pads
with the rear caliper pivoted up.
NOTE
When removing the pads, push the piston all
the way into brake caliper.
“A”
I718H1430001-02
1
I718H1430016-01
2
3
I718H1430018-02
2
I718H1430017-02

Suzuki GSF1250 Specifications

General

Displacement	1255 cc
Bore x Stroke	79.0 mm x 64.0 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Transmission	6-speed, constant mesh
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	180/55ZR17M/C (73W), tubeless
Overall Length	2130 mm
Overall Width	790 mm
Seat Height	805 mm
Wheelbase	1485 mm
Fuel Tank Capacity	19.0 L
Starter	Electric
Final Drive	Chain
Ignition	Electronic ignition (transistorized)
Engine Type	4-stroke, liquid-cooled, DOHC
Ground Clearance	135 mm
