Suzuki GSF1250 Service Manual

2B-1 Front Suspension:
Suspension
Front Suspension
Repair Instructions

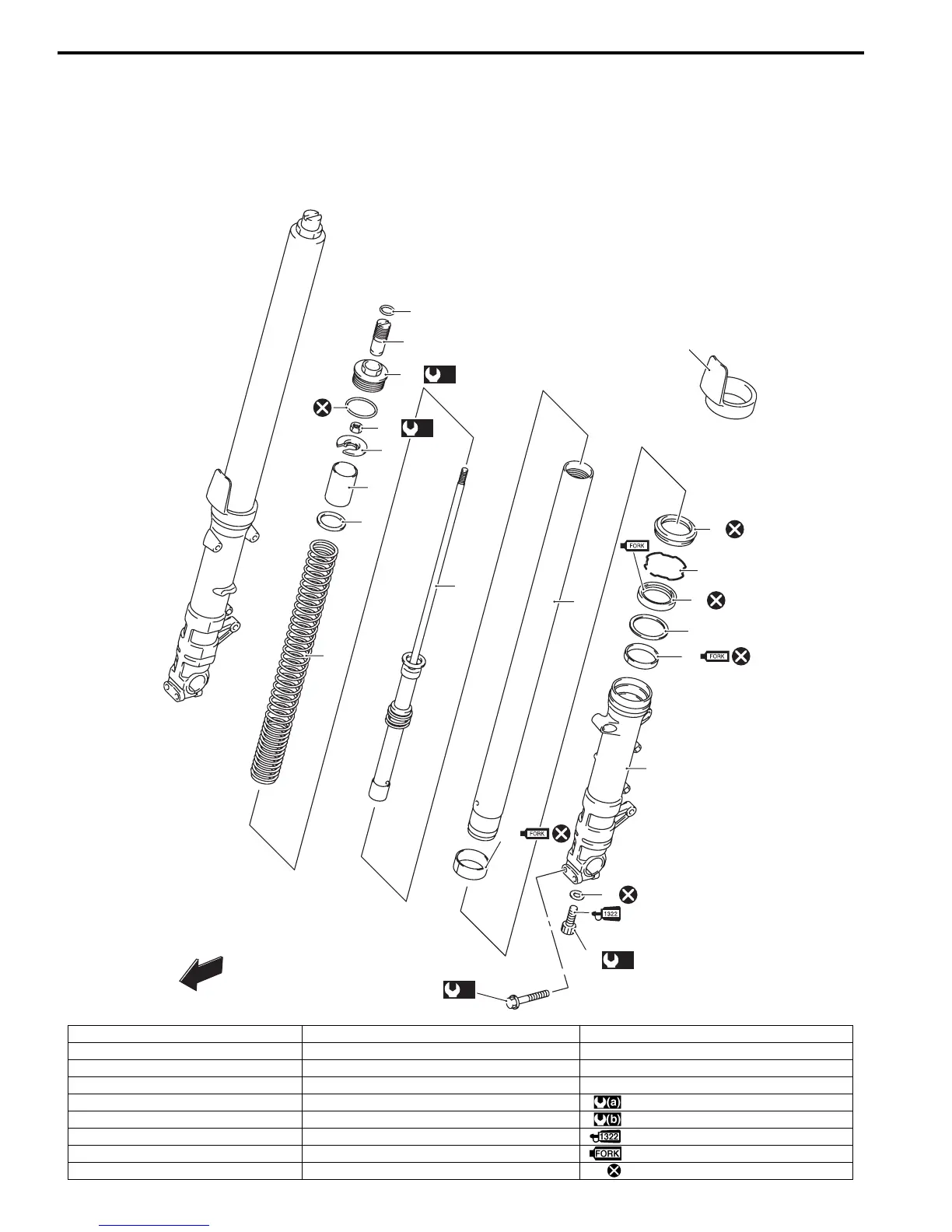

Front Fork Components
B718H12206001
1
3
5
7
8
(a)
9
11
13
14
15
19
20
22
21
(b)
16
(a)
18
6
12
4
2
17
FWD
(b)
10
I718H1220001-04
1. Front fork protector 10. Front axle pinch bolt 19. Spring seat
2. Dust seal 11. Inner tube 20. Spacer
3. Oil seal stopper ring 12. Inner tube slide metal 21. Washer
4. Oil seal 13. Damper rod (Inner rod cylinder) 22. Spring
5. Oil seal retainer 14. O-ring : 20 N⋅m (2.0 kgf-m, 14.5 lb-ft)
6. Outer tube slide metal 15. Spring adjuster : 23 N⋅m (2.3 kgf-m, 16.5 lb-ft)
7. Outer tube 16. Front fork cap bolt : Apply thread lock to thread part.
8. Gasket 17. O-ring : Apply fork oil.
9. Damper rod bolt 18. Inner rod lock-nut : Do not reuse.

Suzuki GSF1250 Specifications

General

Displacement	1255 cc
Bore x Stroke	79.0 mm x 64.0 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Transmission	6-speed, constant mesh
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	180/55ZR17M/C (73W), tubeless
Overall Length	2130 mm
Overall Width	790 mm
Seat Height	805 mm
Wheelbase	1485 mm
Fuel Tank Capacity	19.0 L
Starter	Electric
Final Drive	Chain
Ignition	Electronic ignition (transistorized)
Engine Type	4-stroke, liquid-cooled, DOHC
Ground Clearance	135 mm
