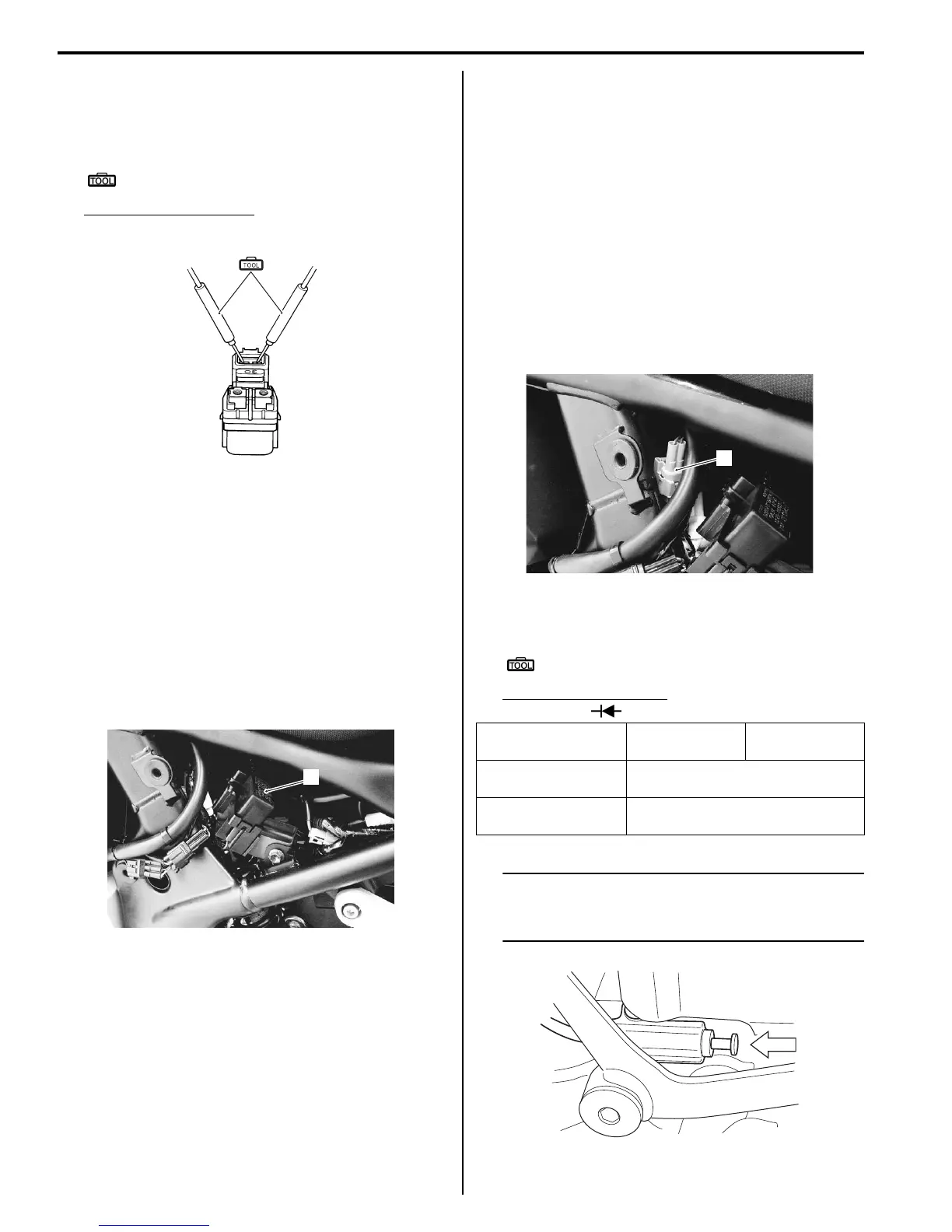

1I-8 Starting System:
3) Measure the relay coil resistance between the
terminals using the multi-circuit tester. If the
resistance is not within the specified value, replace
the starter relay with a new one.
Special tool
(A): 09900–25008 (Multi-circuit tester set)
Starter relay resistance
3 – 6 Ω
4) Install the starter relay. Refer to “Starter Relay
Removal and Installation (Page 1I-7)”.
Turn Signal / Side-stand Relay Removal and
Installation
B718H11906007
Removal
1) Turn the ignition switch OFF.
2) Remove the left frame cover. Refer to “Exterior Parts
Removal and Installation in Section 9D (Page 9D-
6)”.
3) Remove the turn signal/side-stand relay (1).
Installation
Install the turn signal/side-stand relay in the reverse
order of removal.
Side-stand / Ignition Interlock System Parts
Inspection
B718H11906008
Check the interlock system for proper operation. If the
interlock system does not operate properly, check each
component for damage or abnormalities. If any
abnormality is found, replace the component with a new
one.
Side-stand Switch
1) Turn the ignition switch OFF.
2) Remove the left frame cover. Refer to “Exterior Parts
Removal and Installation in Section 9D (Page 9D-
6)”.
3) Disconnect the side-stand switch coupler (1).
4) Measure the voltage between Green and Black/
White lead wires.
Special tool
: 09900–25008 (Multi-circuit tester set)
Tester knob indication
Diode test ( )
NOTE
If the tester reads 1.4 V and below when the
tester probes are not connected, replace its
battery.
(A)
I649G1190023-03
1
I718H1190022-01
G
((+) probe)
B/W
((–) probe)
ON
(Side-stand up)
0.4 – 0.6 V
OFF
(Side-stand down)
1.4 V and more
(Tester’s battery voltage)
1
I718H1190020-01
I718H1190023-01
