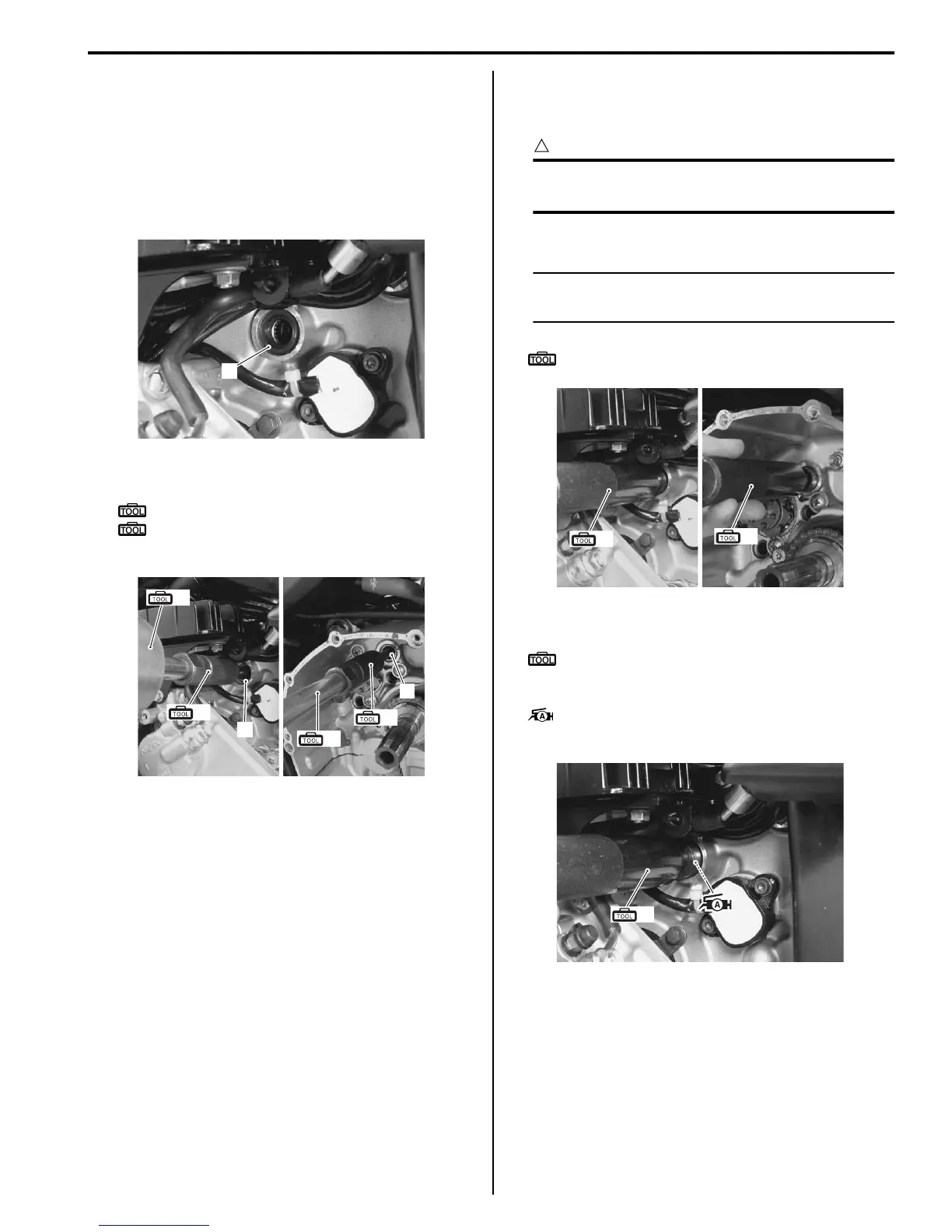

Suzuki GSF1250 Service Manual

Manual Transmission: 5B-19
Gearshift Shaft Oil Seal / Bearing Removal and
Installation
B718H15206013
Removal
1) Remove the gearshift shaft. Refer to “Gearshift Shaft
/ Gearshift Cam Plate Removal and Installation
(Page 5B-15)”.
2) Remove the gearshift shaft oil seal (1).
3) Remove the bearings (2), (3) with the special tools.
Special tool
(A): 09921–20210 (Bearing remover)
(B): 09930–30104 (Rotor remover slide
shaft)
Installation
Install the oil seal and bearing in the reverse order of
removal. Pay attention to the following points:
CAUTION
!
The removed oil seal and bearings must be
replaced with new ones.
• Install the bearings with the special tool.
NOTE
The stamped mark side of gearshift shaft
bearing faces outside.
Special tool
(A): 09913–70210 (Bearing installer set)
• Install the oil seal with the special tool.
Special tool
(A): 09913–70210 (Bearing installer set)
• Apply grease to the oil seal lip.
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
1
I718H1520064-01
(B)
(B)
(A)
(A)
2
3
I718H1520065-01
(A)
(A)
I718H1520066-01
(A)
I718H1520067-01
