Suzuki GSF1250 Service Manual

Clutch: 5C-14

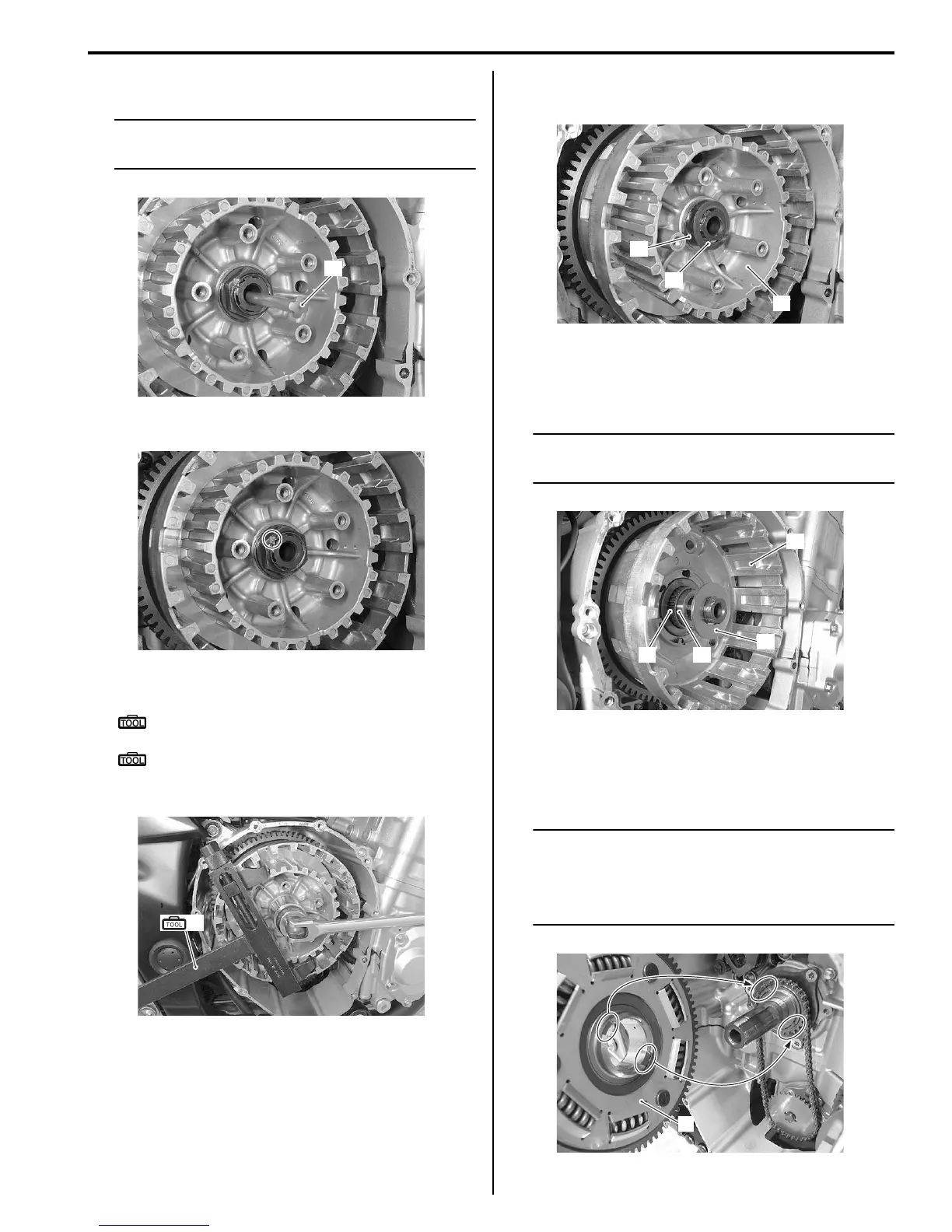

8) Remove the clutch push rod (11).
NOTE
If it is difficult to pull out the push rod (11),
use a magnetic hand or a wire.
9) Unlock the clutch sleeve hub nut.
10) Hold the clutch sleeve hub with the special tools.
Special tool
(A): 09920–53740 (Clutch sleeve hub
holder)
: 09920–31020 (Extension handle)
11) Remove the clutch sleeve hub nut.
12) Remove the conical spring washer (12), washer (13)
and clutch sleeve hub (14).
13) Remove the thrust washer (15), spacer (16) and
bearing (17).
14) Remove the primary driven gear assembly (18).
NOTE
If it is difficult to remove the primary driven
gear, rotate the crankshaft.
Clutch Installation
B718H15306017
1) Install the primary driven gear assembly (1).
NOTE
• If it is difficult to install the primary driven
gear, rotate the crankshaft.
• Be sure to engage the oil pump drive
sprocket with the primary driven gear.
11
I718H1530036-01
I718H1530037-01
(A)
I718H1530039-01
13
12
14
I718H1530040-01
18
15
1617
I718H1530041-01
1
I718H1530043-01
