Suzuki GSF1250 Service Manual

9D-9 Exterior Parts:
Seat Height Adjustment
B718H19406005

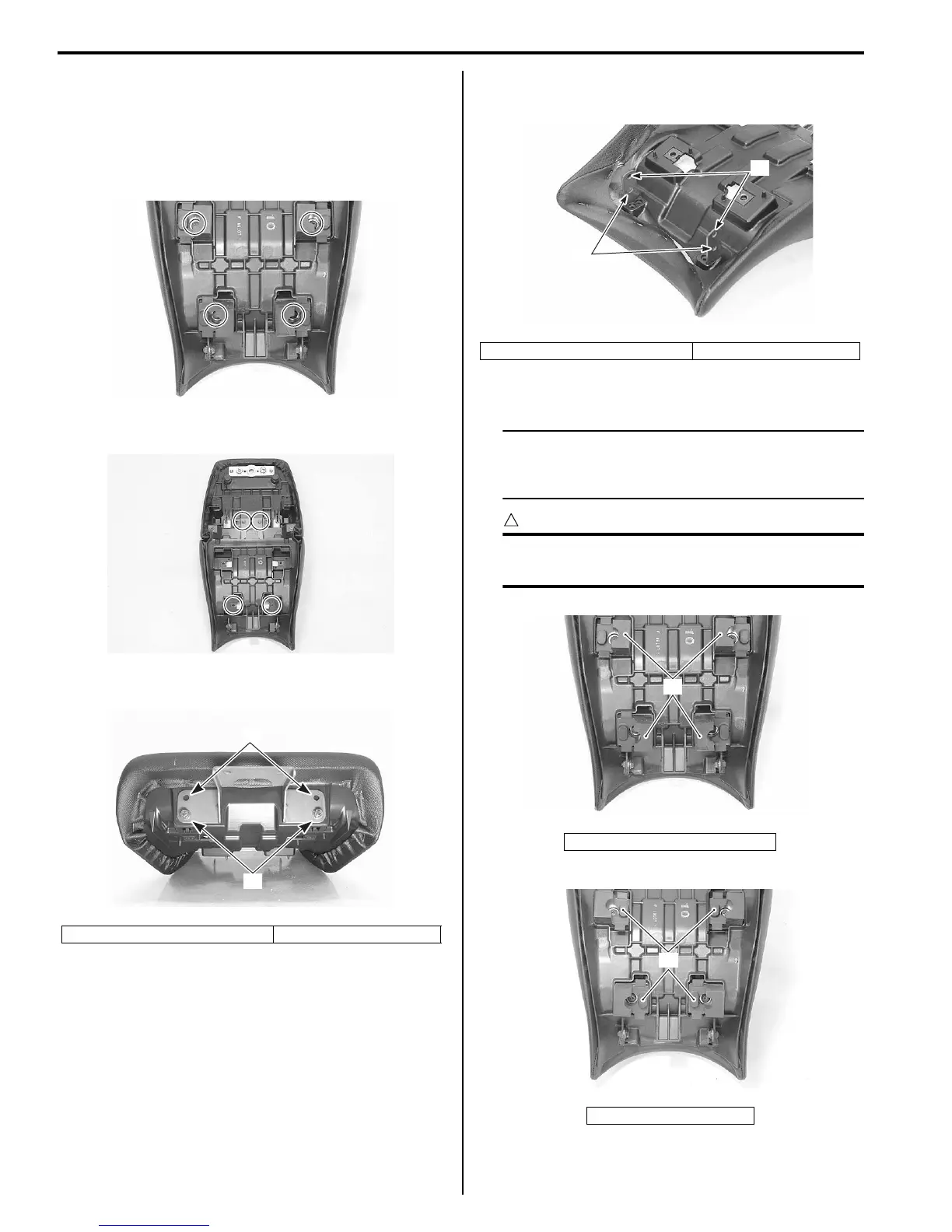

Adjust the seat height in the following procedures:
1) Remove the seat assembly. Refer to “Exterior Parts
Removal and Installation (Page 9D-6)”.
2) Remove the seat height adjusting dampers.
3) Remove the front seat from the rear seat.
4) Adjust the seat height adjuster position “A” or “B”.
5) Reinstall the front seat and adjust the seat height
adjuster position “A” or “B”.
6) Install the seat height adjusting dampers.
NOTE
Dampers are used in two ways “A” or “B”.
Pay attention to the direction of dampers
when installing them.
CAUTION
!
Position of adjuster and direction of dampers
must be unified either “A” or “B”.
7) Reinstall the seat assembly. Refer to “Exterior Parts
Removal and Installation (Page 9D-6)”.
“A”: For low (Normal) position “B”: For high position
I718H1940020-01
I718H1940021-02
“A”
“B”
I718H1940022-01
“A”: For low (Normal) position “B”: For high position
“A”: For low (Normal) position
“B”: For high position
“B”
“A”
I718H1940023-01
“A”
I718H1940024-01
“B”
I718H1940025-01

Suzuki GSF1250 Specifications

General

Displacement	1255 cc
Bore x Stroke	79.0 mm x 64.0 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Transmission	6-speed, constant mesh
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	180/55ZR17M/C (73W), tubeless
Overall Length	2130 mm
Overall Width	790 mm
Seat Height	805 mm
Wheelbase	1485 mm
Fuel Tank Capacity	19.0 L
Starter	Electric
Final Drive	Chain
Ignition	Electronic ignition (transistorized)
Engine Type	4-stroke, liquid-cooled, DOHC
Ground Clearance	135 mm
