Suzuki GSF1250 Service Manual

9B-6 Lighting Systems:
Rear Combination Light Construction
B718H19206006
Rear Combination Light Removal and
Installation
B718H19206007
Removal
1) Remove the seat tail cover. Refer to “Exterior Parts
Removal and Installation in Section 9D (Page 9D-
6)”.
2) Remove the rear combination light (1) from the seat
tail cover.
Installation
Install the rear combination light in the reverse order of
removal. Pay attention to the following point:
• Tighten the rear combination light mounting bolts to
the specified torque.
Tightening torque
Rear combination light mounting bolt: 2.0 N·m (0.2
kgf-m, 1.5 lb-ft)

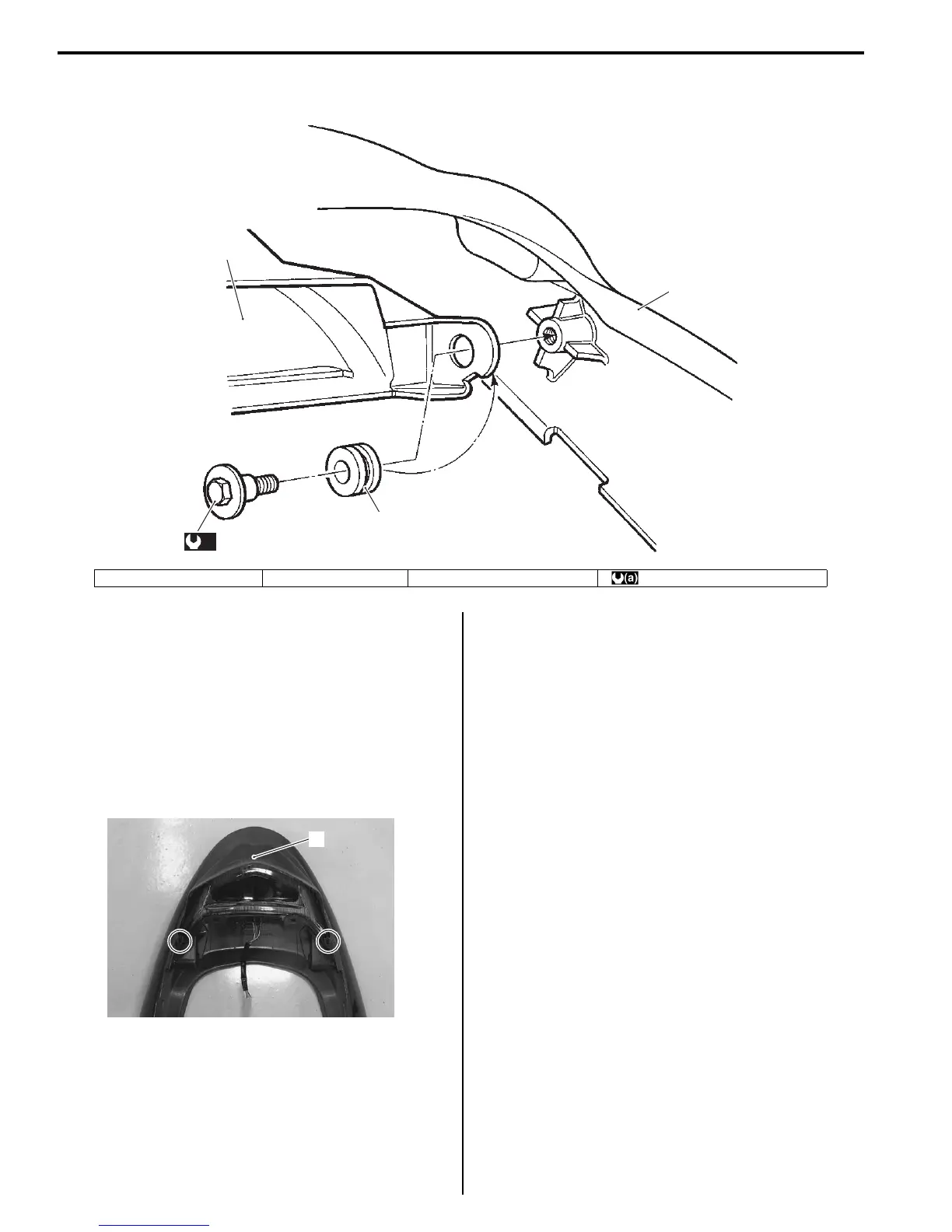

(a)
2
3
1
I649G1920018-02
1. Seat tail cover 2. Cushion 3. Rear combination light : 2.0 N⋅m (0.2 kgf-m, 1.5 lb-ft)
1
I718H1920018-01

Suzuki GSF1250 Specifications

General

Displacement	1255 cc
Bore x Stroke	79.0 mm x 64.0 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Transmission	6-speed, constant mesh
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	180/55ZR17M/C (73W), tubeless
Overall Length	2130 mm
Overall Width	790 mm
Seat Height	805 mm
Wheelbase	1485 mm
Fuel Tank Capacity	19.0 L
Starter	Electric
Final Drive	Chain
Ignition	Electronic ignition (transistorized)
Engine Type	4-stroke, liquid-cooled, DOHC
Ground Clearance	135 mm
