Suzuki GSF1250 Service Manual

Steering / Handlebar: 6B-4

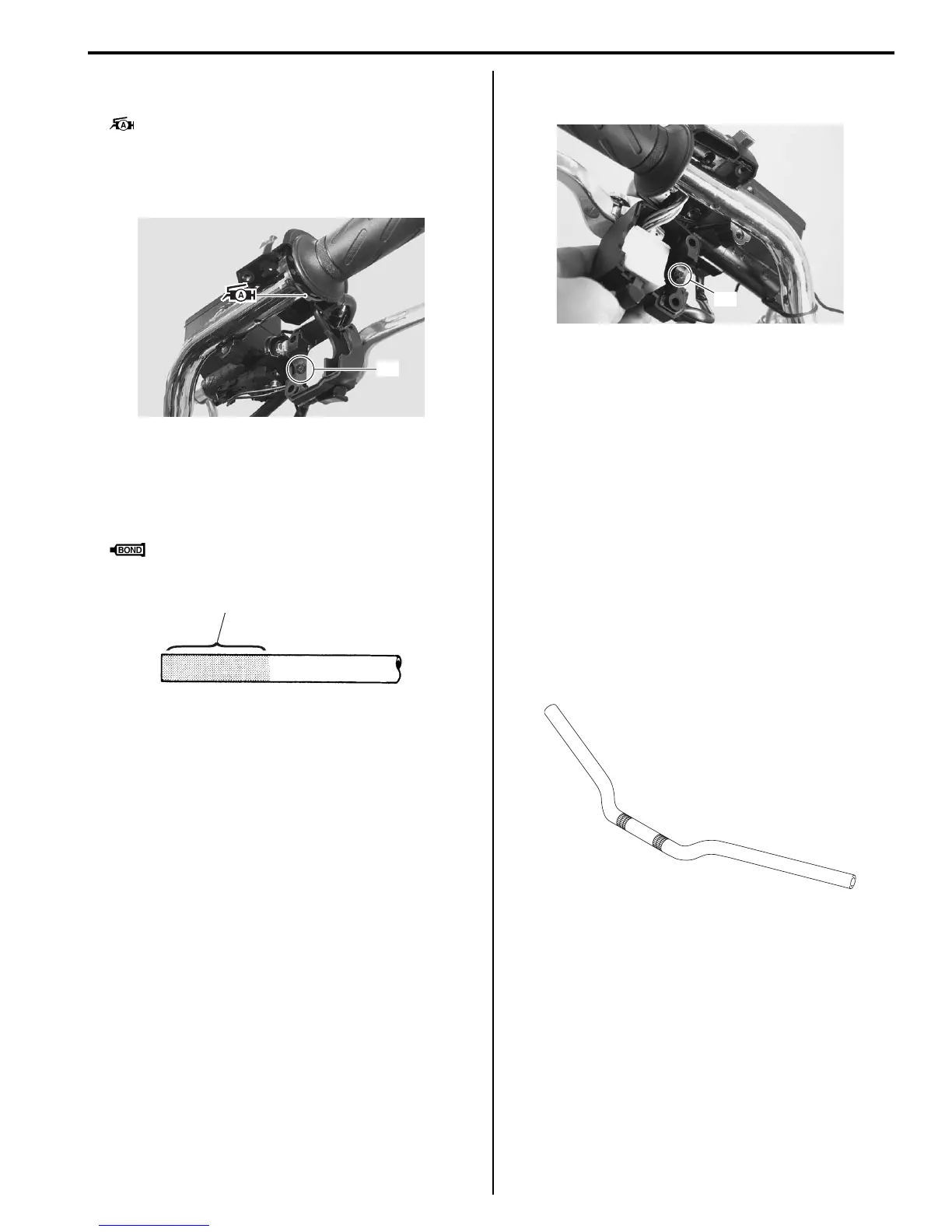

• Apply SUZUKI SUPER GREASE to the end of the
throttle cables and cable pulley.
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
• Insert the projection “C” of the right handlebar switch
box into the hole of the handlebars.
• Install the front brake master cylinder. Refer to “Front
Brake Master Cylinder Assembly Removal and
Installation in Section 4A (Page 4A-14)”.
• Apply a handle grip bond “D” onto the left handlebar
before installing the handlebar grip.
: Handle grip bond (Handle Grip Bond
(commercially available))
• Insert the projection “E” of the left handlebar switch
box into the hole of the handlebars.
• Install the clutch master cylinder. Refer to “Clutch
Master Cylinder Assembly Removal and Installation in
Section 5C (Page 5C-7)”.
• After installing the steering, the following adjustments
are required before driving.
– Cable routing (Refer to “Throttle Cable Routing
Diagram in Section 1D (Page 1D-2)”.)
– Throttle cable play (Refer to “Throttle Cable Play
Inspection and Adjustment in Section 0B (Page 0B-
12)”.)
Handlebars Inspection
B718H16206003
Refer to “Handlebar Removal and Installation (Page 6B-
3)”.
Inspect the handlebars for distortion and damage.
If any defect is found, replace the handlebars with a new
one.
“C”
I718H1620006-02
“D”
I649G1620008-03
“E”
I718H1620007-04
I649G1620010-03

Suzuki GSF1250 Specifications

General

Displacement	1255 cc
Bore x Stroke	79.0 mm x 64.0 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Transmission	6-speed, constant mesh
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	180/55ZR17M/C (73W), tubeless
Overall Length	2130 mm
Overall Width	790 mm
Seat Height	805 mm
Wheelbase	1485 mm
Fuel Tank Capacity	19.0 L
Starter	Electric
Final Drive	Chain
Ignition	Electronic ignition (transistorized)
Engine Type	4-stroke, liquid-cooled, DOHC
Ground Clearance	135 mm
