Suzuki GSF1250 Service Manual

4E-23 ABS:
DTC (Diagnostic Trouble Code) Output
B718H14504021
NOTE
• Even through the ABS is operating
correctly, a DTC is memorized in any of the
following conditions.
– If the motorcycle is put on its
centerstand, the engine is started and
only the rear wheel is rotated.
– Previous malfunctions were repaired,
but the DTCs were not deleted.
• After carrying out DTC deleting and ABS
operation check, explain to the customer
that the ABS is operating correctly. Refer
to “DTC (Diagnostic Trouble Code)
Deleting (Page 4E-25)”.

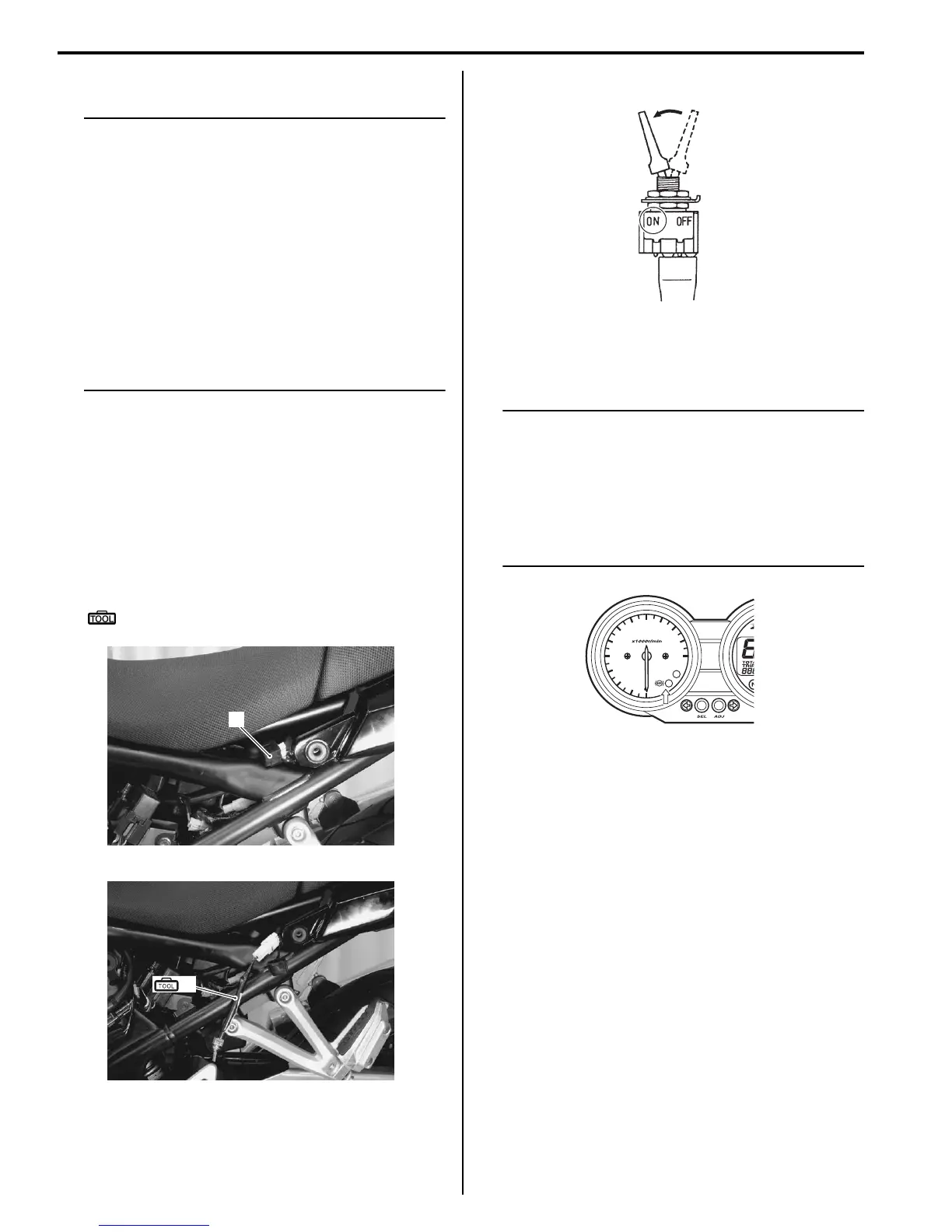

Use of Mode Select Switch
Connect the special tool to the mode select coupler to
output the memorized DTCs on the ABS indicator light.
1) Turn the ignition switch OFF.
2) Remove the left frame cover. Refer to “Exterior Parts
Removal and Installation in Section 9D (Page 9D-
6)”.
3) Connect the special tool to the mode select coupler
(1) (O – B/W).
Special tool
(A): 09930–82710 (Mode select switch)
4) Switch the special tool to ON.
5) Turn the ignition switch ON.
The ABS indicator light starts flashing to indicate the
DTC. Refer to “DTC Table (Page 4E-34)”.
NOTE
• If there is a DTC, the ABS indicator light
keeps flashing cyclically and repeatedly.
• If there is no DTC, the ABS indicator light
keeps lighting on.
• If the DTCs are to be output for a long time,
remove the HEAD-LO fuse in order to
prevent the battery from discharging.
6) Turn the ignition switch OFF and disconnect the
special tool.
1
I718H1450044-02
(A)
I718H1450045-02
I718H1450040-02
FI
I718H1450122-04

Suzuki GSF1250 Specifications

General

Displacement	1255 cc
Bore x Stroke	79.0 mm x 64.0 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Transmission	6-speed, constant mesh
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	180/55ZR17M/C (73W), tubeless
Overall Length	2130 mm
Overall Width	790 mm
Seat Height	805 mm
Wheelbase	1485 mm
Fuel Tank Capacity	19.0 L
Starter	Electric
Final Drive	Chain
Ignition	Electronic ignition (transistorized)
Engine Type	4-stroke, liquid-cooled, DOHC
Ground Clearance	135 mm
