Suzuki GSF1250 Service Manual

Rear Brakes: 4C-1
Brake
Rear Brakes
Repair Instructions

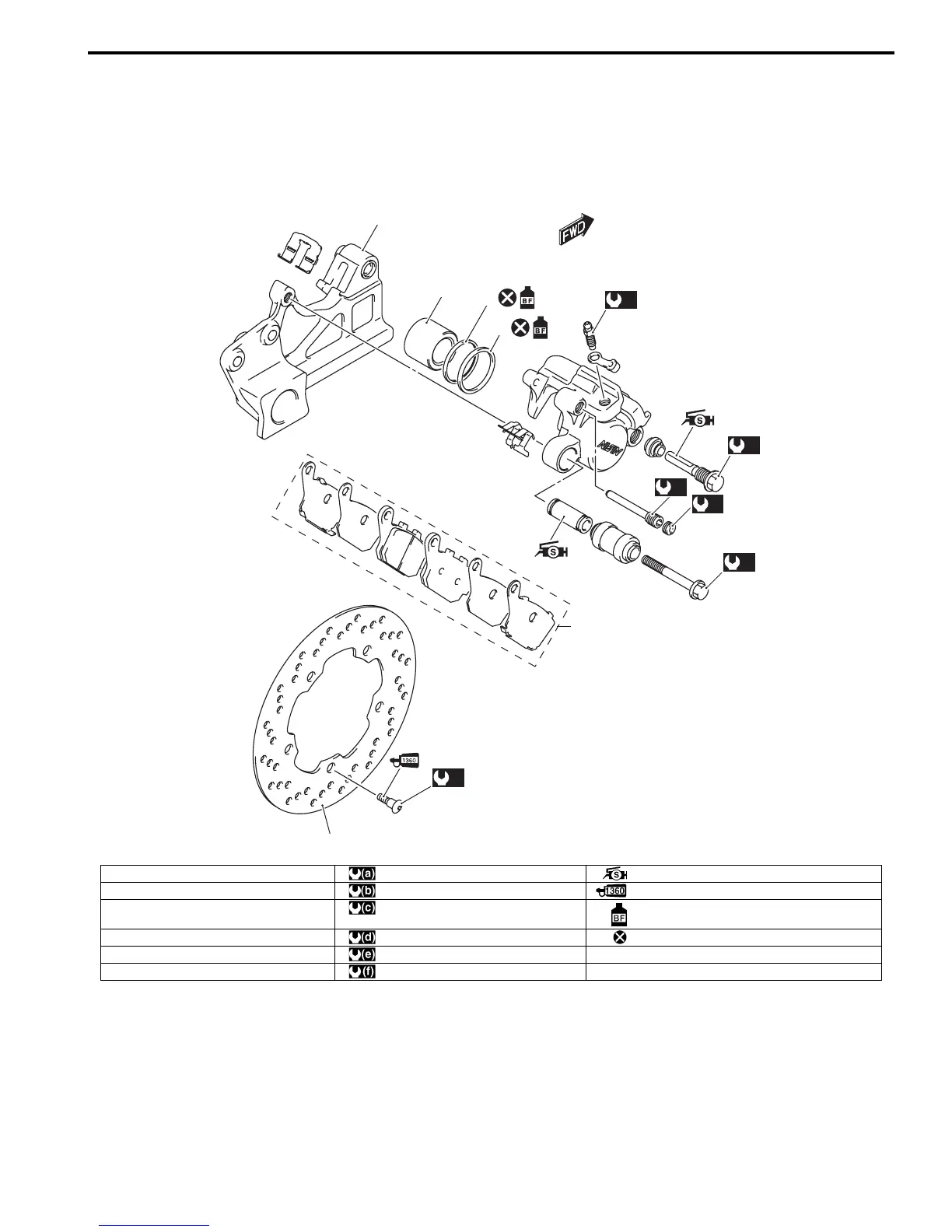

Rear Brake Components
B718H14306001
1
2
4,
3,
(a)
(b)
(c)
(d)
(e)
(f)
6
5
I649G1430001-05
1. Rear caliper bracket : 6.0 N⋅m (0.6 kgf-m, 4.5 lb-ft) : Apply silicone grease to sliding surface.
2. Piston : 27 N⋅m (2.7 kgf-m, 19.5 lb-ft) : Apply thread lock to thread part.
3. Piston seal : 18 N⋅m (1.8 kgf-m, 13.0 lb-ft) : Apply brake fluid.
4. Dust seal : 2.5 N⋅m (0.25 kgf-m, 1.8 lb-ft) : Do not reuse.
5. Rear brake pad/Shim set : 22 N⋅m (2.2 kgf-m, 16.0 lb-ft)
6. Rear brake disc : 23 N⋅m (2.3 kgf-m, 16.5 lb-ft)

Suzuki GSF1250 Specifications

General

Displacement	1255 cc
Bore x Stroke	79.0 mm x 64.0 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Transmission	6-speed, constant mesh
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	180/55ZR17M/C (73W), tubeless
Overall Length	2130 mm
Overall Width	790 mm
Seat Height	805 mm
Wheelbase	1485 mm
Fuel Tank Capacity	19.0 L
Starter	Electric
Final Drive	Chain
Ignition	Electronic ignition (transistorized)
Engine Type	4-stroke, liquid-cooled, DOHC
Ground Clearance	135 mm
