Suzuki GSF1250 Service Manual

1A-97 Engine General Information and Diagnosis:
DTC “C41” (P0230-H/L): FP Relay Circuit Malfunction
B718H11104023
Detected Condition and Possible Cause

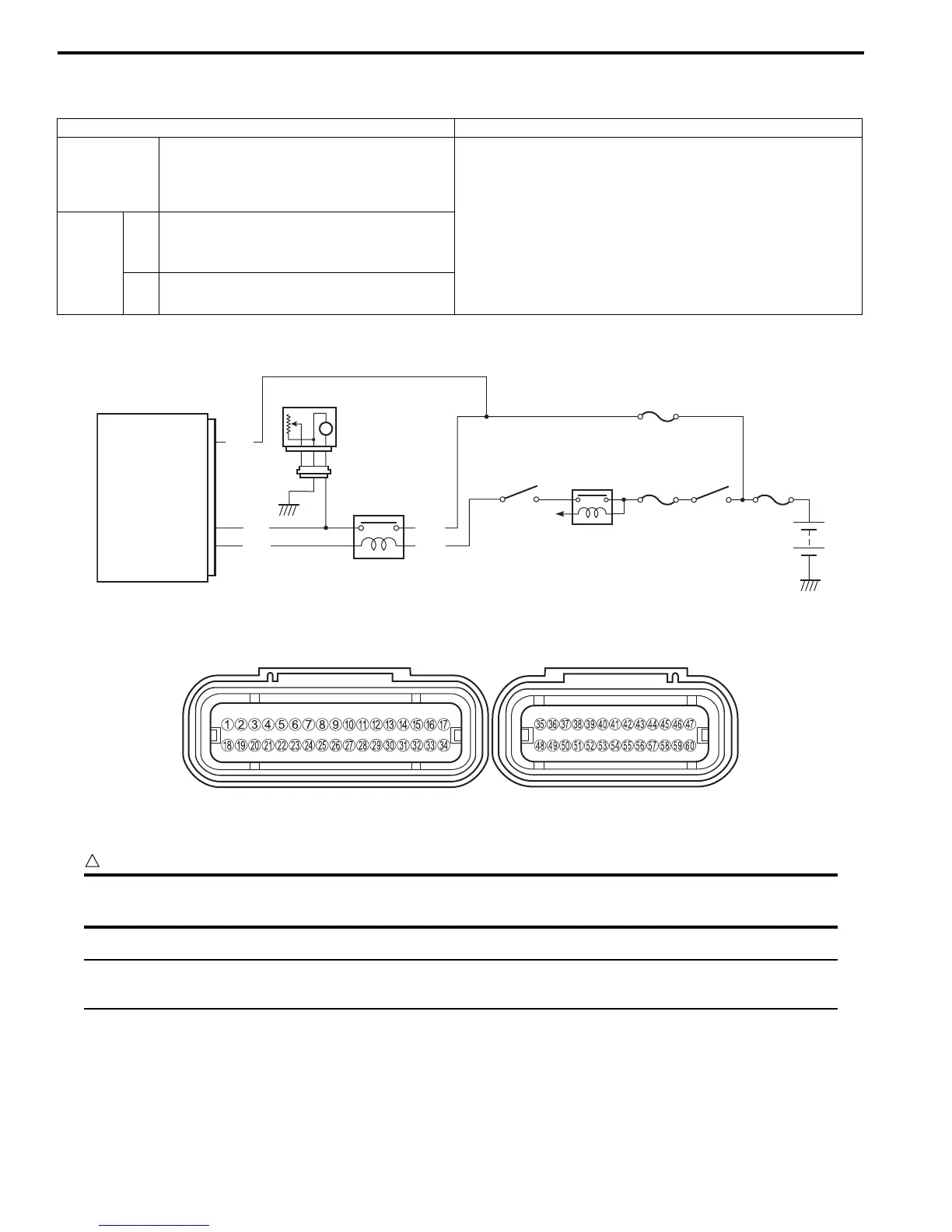

Wiring Diagram
ECM coupler (Harness side)
Troubleshooting
CAUTION
!
When using the multi-circuit tester, do not strongly touch the terminal of the ECM coupler with a
needle pointed tester probe to prevent the terminal damage or terminal bend.
NOTE
After repairing the trouble, clear the DTC using SDS tool. Refer to “Use of SDS Diagnosis Reset
Procedures (Page 1A-13)”.
Detected Condition Possible Cause
C41
No voltage is applied to fuel pump
although fuel pump relay is turned ON, or
voltage is applied to fuel pump, although
fuel pump relay is turned OFF.
• Fuel pump relay circuit open or short.
• Fuel pump relay malfunction.
• ECM malfunction.
P0230
H
Voltage is applied to fuel pump although
fuel pump relay is turned OFF.
• Fuel pump relay switch circuit is shorted to power
source.
• Faulty pump relay (switch side).
L
No voltage is applied to fuel pump
although fuel pump relay is turned ON.
• Fuel pump relay coil circuit open or short.
• Faulty pump relay (coil side).
ECM
Side-stand
relay
Engine stop
switch
Fuel pump
relay
Fuel pump
Ignition
switch
M
Y/R
VM
FP relay
R/BI
B/R
Y/B
To side-stand
switch
33
BATT
16
38
R/Bl
I718H1110263-01
I718H1110240-01

Suzuki GSF1250 Specifications

General

Displacement	1255 cc
Bore x Stroke	79.0 mm x 64.0 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Transmission	6-speed, constant mesh
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	180/55ZR17M/C (73W), tubeless
Overall Length	2130 mm
Overall Width	790 mm
Seat Height	805 mm
Wheelbase	1485 mm
Fuel Tank Capacity	19.0 L
Starter	Electric
Final Drive	Chain
Ignition	Electronic ignition (transistorized)
Engine Type	4-stroke, liquid-cooled, DOHC
Ground Clearance	135 mm
