Suzuki GSF1250 Service Manual

Engine General Information and Diagnosis: 1A-14
Show Data When Trouble (Displaying Data at the Time of DTC)
B718H11104008
Use of SDS
ECM stores the engine and driving conditions (in the form of data as shown in the figure) at the moment of the
detection of a malfunction in its memory. This data is called “Show data when trouble”.
Therefore, it is possible to know engine and driving conditions (e.g., whether the engine was warm or not, where the
motorcycle was running or stopped) when a malfunction was detected by checking the show data when trouble. This
show data when trouble function can record the maximum of two Diagnostic Trouble Codes in the ECM.
Also, ECM has a function to store each show data when trouble for two different malfunctions in the order of
occurrence as the malfunction is detected. Utilizing this function, it is possible to know the order of malfunctions that
have been detected. Its use is helpful when rechecking or diagnosing a trouble.

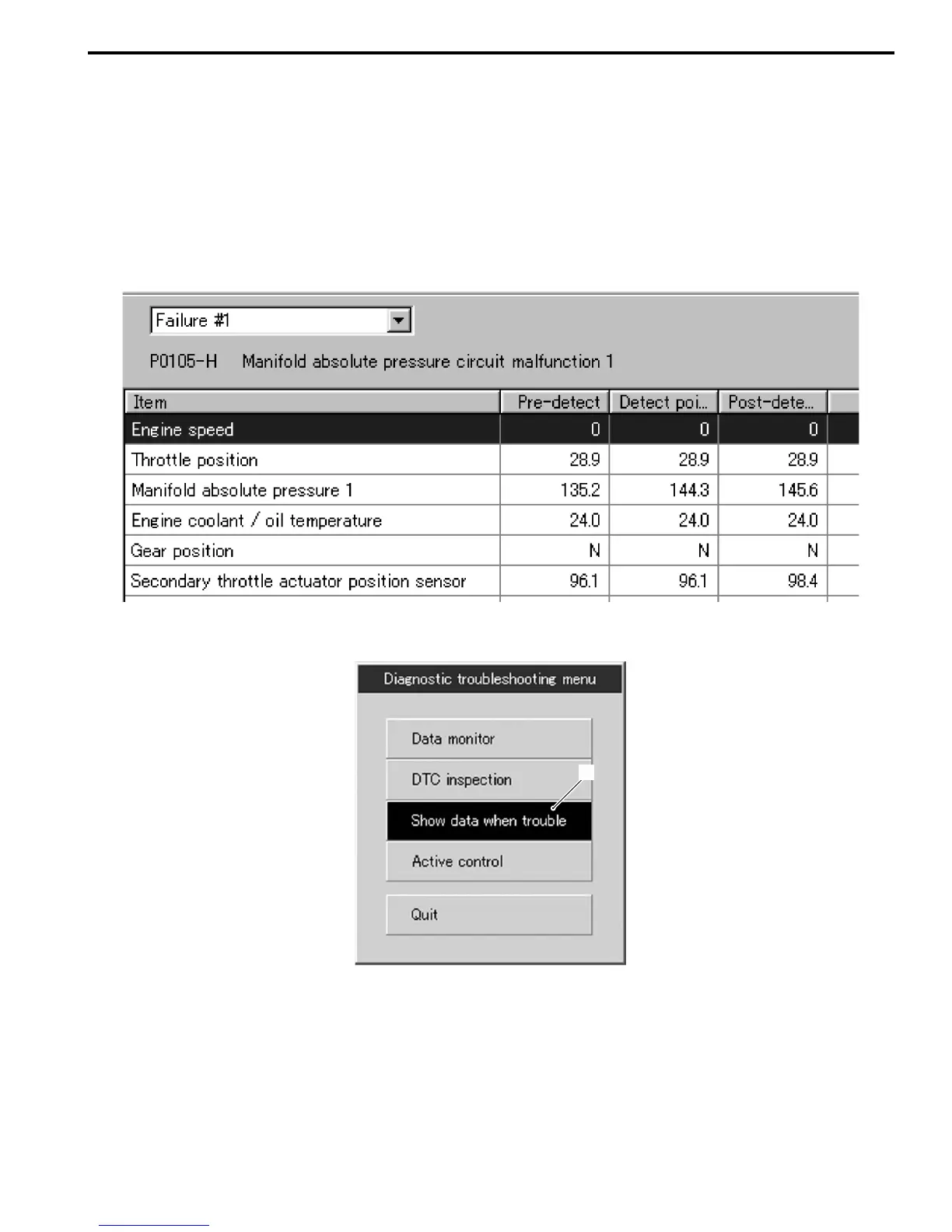

1) Click “Show data when trouble” (1) to display the data.
I705H1110010-01
1
I718H1110269-02

Suzuki GSF1250 Specifications

General

Displacement	1255 cc
Bore x Stroke	79.0 mm x 64.0 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Transmission	6-speed, constant mesh
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	180/55ZR17M/C (73W), tubeless
Overall Length	2130 mm
Overall Width	790 mm
Seat Height	805 mm
Wheelbase	1485 mm
Fuel Tank Capacity	19.0 L
Starter	Electric
Final Drive	Chain
Ignition	Electronic ignition (transistorized)
Engine Type	4-stroke, liquid-cooled, DOHC
Ground Clearance	135 mm
