Suzuki GSF1250 Service Manual

Manual Transmission: 5B-5
Transmission Installation
B718H15206003

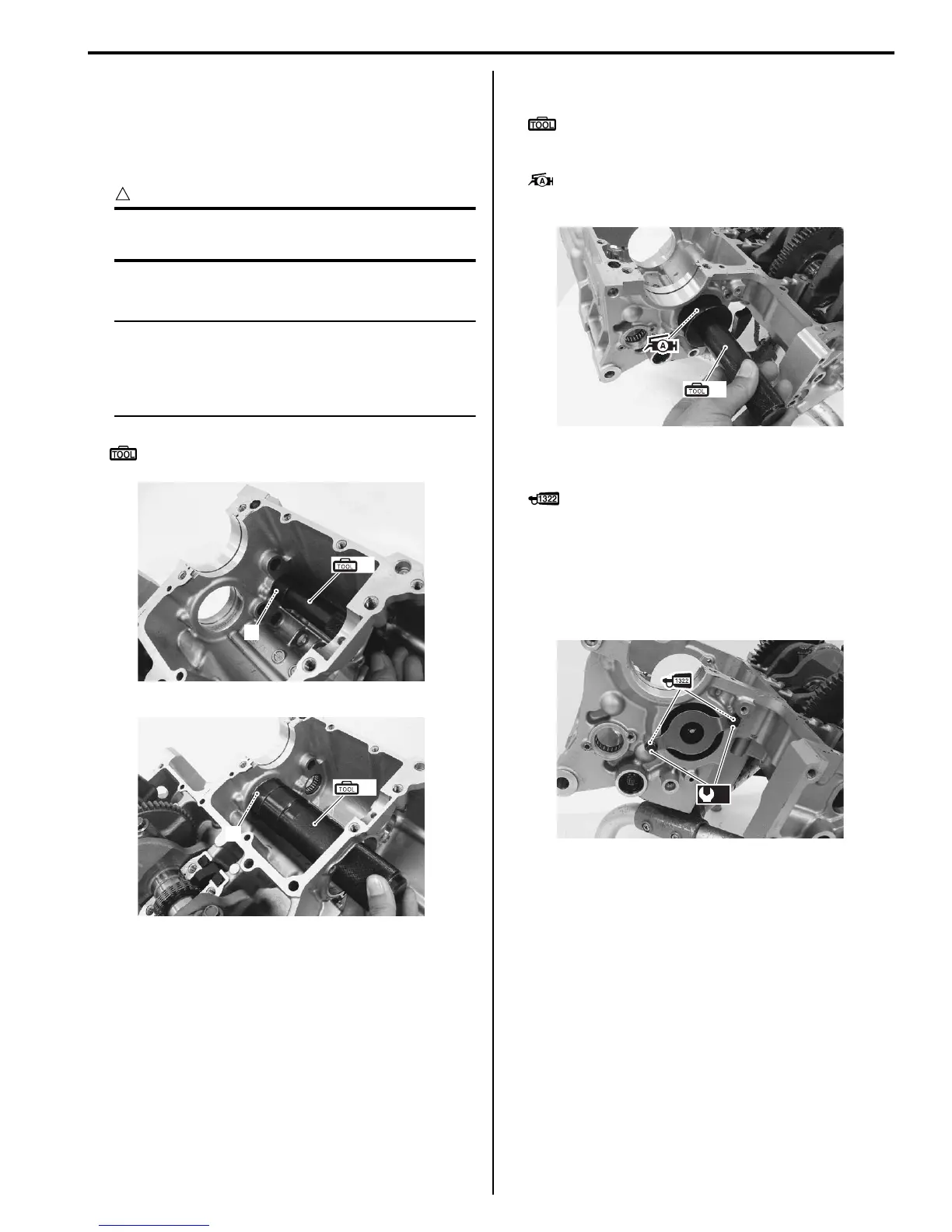

Install the transmission in the reverse order of removal.
Pay attention to the following points:
Bearing / Oil Seal
CAUTION
!
Replace the removed oil seal, bearings and
snap ring with new ones.
• Install the bearings (1), (2) with the special tool.
NOTE
• The stamped mark side of gearshift cam
bearing (1) faces inside.
• The sealed side of countershaft bearing (2)
faces outside.
Special tool
(A): 09913–70210 (Bearing installer set)
• Install the oil seal with the special tool.
Special tool
(A): 09913–70210 (Bearing installer set)
• Apply grease to the oil seal lip.
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
• Apply a small quantity of thread lock to the oil seal
bolts and tighten them to the specified torque.
: Thread lock cement 99000–32110
(THREAD LOCK CEMENT SUPER 1322 or
equivalent)
Tightening torque
Push rod oil seal bolt (a): 12 N·m (1.2 kgf-m, 8.5
lb-ft)
(A)
1
I718H1520016-02
(A)
2
I718H1520017-02
(A)
I718H1520018-02
(a)
I718H1520019-03
