Suzuki GSF1250 Service Manual

Starting System: 1I-7

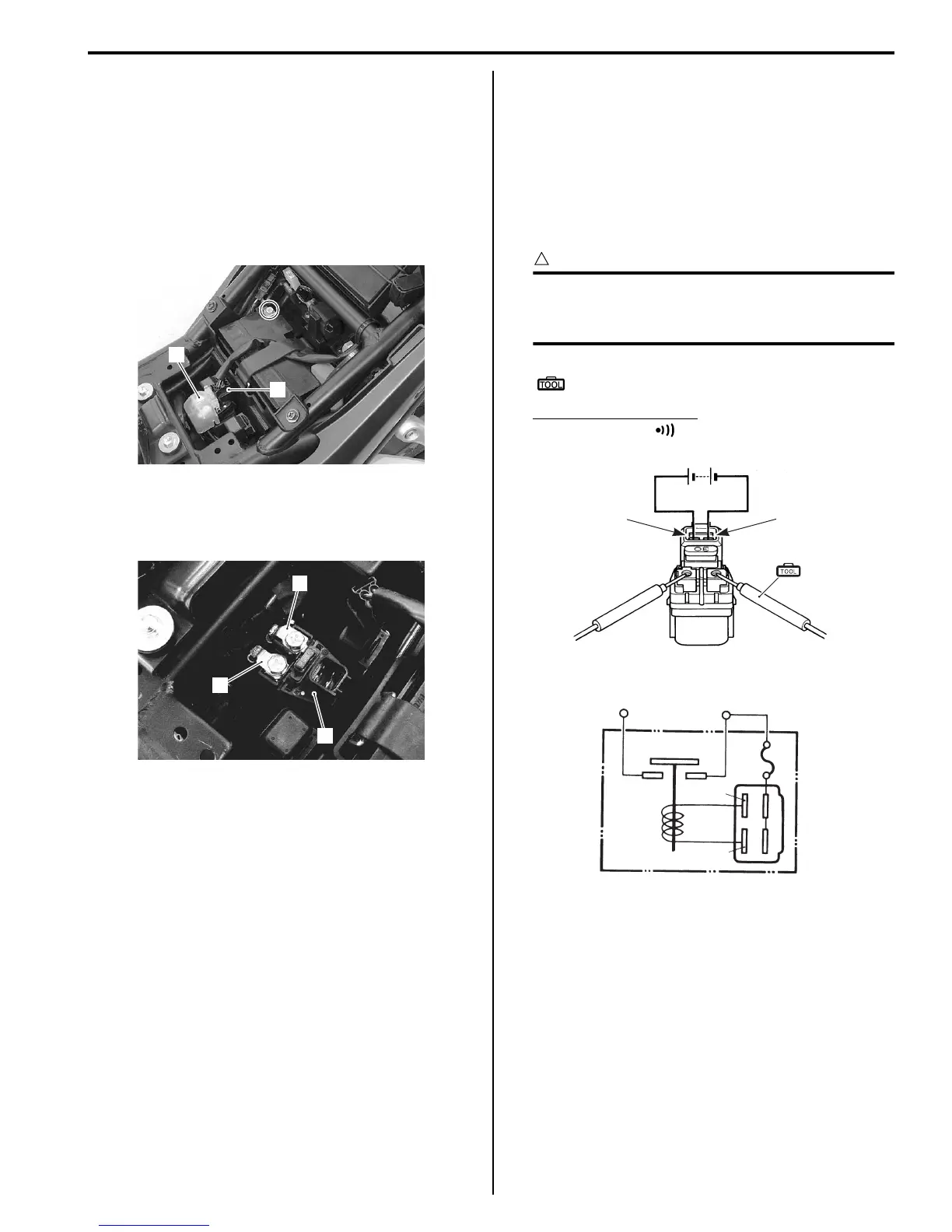

Starter Relay Removal and Installation
B718H11906005
Removal
1) Turn the ignition switch OFF.
2) Remove the seat. Refer to “Exterior Parts Removal
and Installation in Section 9D (Page 9D-6)”.
3) Disconnect the battery (–) lead wire from the battery.
4) Disconnect the starter relay coupler (1) and remove
the starter relay cover (2).
5) Disconnect the starter motor lead wire (3) and
battery (+) lead wire (4).
6) Remove the starter relay (5).
Installation
Install the starter relay in the reverse order of removal.
Starter Relay Inspection
B718H11906006
Inspect the starter relay in the following procedures:
1) Remove the starter relay. Refer to “Starter Relay
Removal and Installation (Page 1I-7)”.
2) Apply 12 V to “A” and “B” terminals and check for
continuity between the positive and negative
terminals using the multi-circuit tester. If the starter
relay clicks and continuity is found, the relay is ok.
CAUTION
!
Do not apply battery voltage to the starter
relay for five seconds and more, since the
relay coil may overheat and get damaged.
Special tool
(A): 09900–25008 (Multi-circuit tester set)
Tester knob indication
Continuity test ( )
1
2
I718H1190039-01
3
5
4
I718H1190019-01
“A” “B”
(A)
I649G1190021-04
“A”
“B”
-+
To batteryTo starter motor
I649G1190022-02

Suzuki GSF1250 Specifications

General

Displacement	1255 cc
Bore x Stroke	79.0 mm x 64.0 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Transmission	6-speed, constant mesh
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	180/55ZR17M/C (73W), tubeless
Overall Length	2130 mm
Overall Width	790 mm
Seat Height	805 mm
Wheelbase	1485 mm
Fuel Tank Capacity	19.0 L
Starter	Electric
Final Drive	Chain
Ignition	Electronic ignition (transistorized)
Engine Type	4-stroke, liquid-cooled, DOHC
Ground Clearance	135 mm
