Fuel System: 1G-14
• Connect all wiring couplers securely so as not to
cause contact failure.

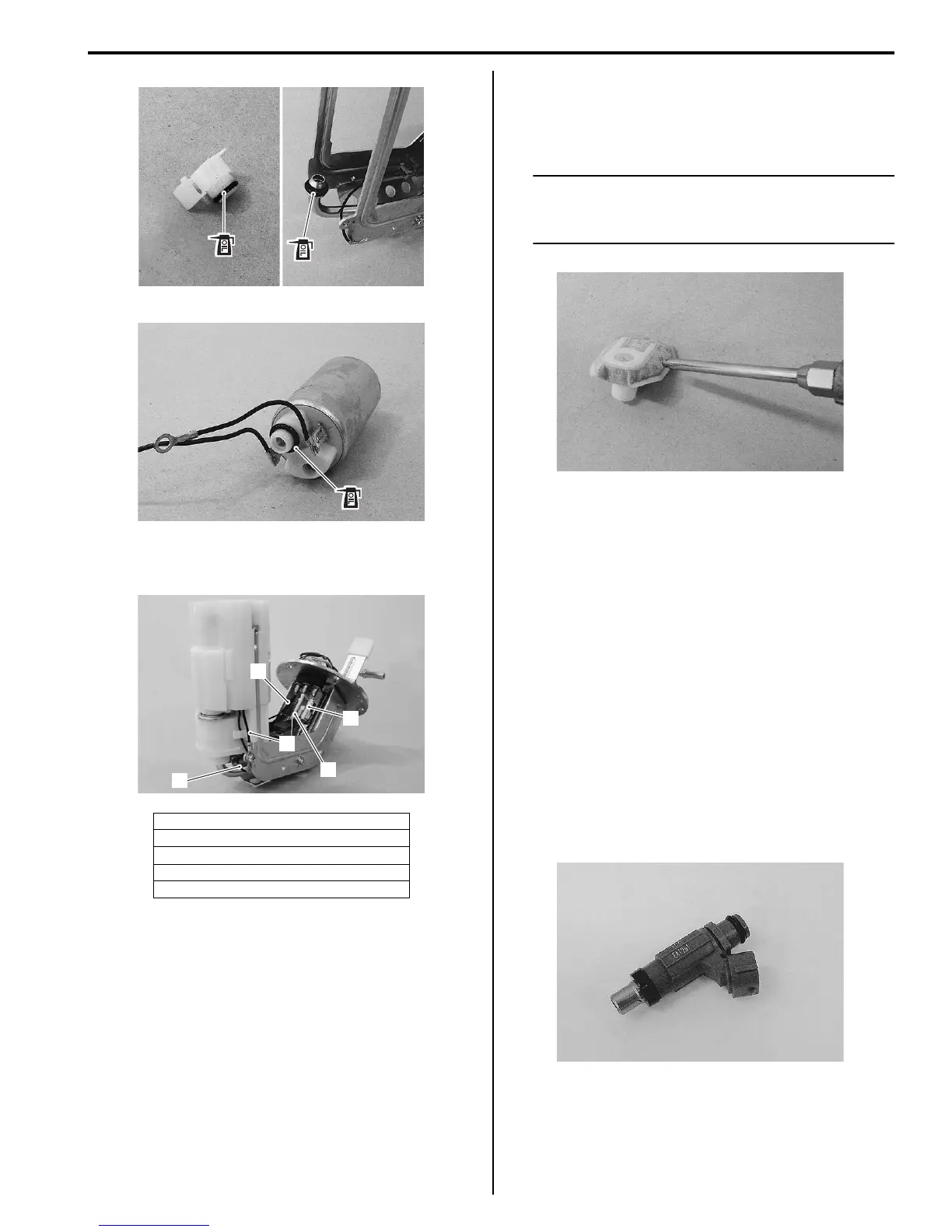

Fuel Mesh Filter Inspection and Cleaning
B718H11706036
Inspect the fuel mesh filter in the following procedures:
1) Remove the fuel mesh filter. Refer to “Fuel Pump
Disassembly and Assembly (Page 1G-12)”.
2) If the fuel mesh filter is clogged with foreign particles,
it hinders smooth gasoline flow resulting in loss of
engine power. Such a filter should be cleaned by
blowing with compressed air.
NOTE
When the fuel mesh filter is dirtied
excessively, replace the fuel filter cartridge
with a new one.
3) After finishing the fuel mesh filter inspection, reinstall
the fuel mesh filter. Refer to “Fuel Pump
Disassembly and Assembly (Page 1G-12)”.
Fuel Injector / Fuel Delivery Pipe / T-joint
Removal and Installation
B718H11706038
Refer to “Throttle Body Disassembly and Assembly in
Section 1D (Page 1D-10)”.
Fuel Injector Inspection and Cleaning
B718H11706039
Inspect the fuel injector in the following procedures:
1) Remove the fuel injector. Refer to “Throttle Body
Disassembly and Assembly in Section 1D (Page 1D-
10)”.
2) Check the fuel injector filter for evidence of dirt and
contamination. If present, clean and check for
presence of dirt in the fuel lines and fuel tank.
3) Install the fuel injector. Refer to “Throttle Body
Disassembly and Assembly in Section 1D (Page 1D-
10)”.
1. Fuel pump (+) lead wire (BI)
2. Fuel level thermistor lead wire (W)
3. Fuel level gauge (+) lead wire (BI)
4. Fuel pump (–) lead wire (B)
5. Fuel level gauge (–) lead wire (B)
I718H1170038-02
I718H1170039-01
1
2
3
4
5
I718H1170037-01
I718H1170003-01
I718H1170012-01

Suzuki GSF1250 Specifications

General

Displacement	1255 cc
Bore x Stroke	79.0 mm x 64.0 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Transmission	6-speed, constant mesh
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	180/55ZR17M/C (73W), tubeless
Overall Length	2130 mm
Overall Width	790 mm
Seat Height	805 mm
Wheelbase	1485 mm
Fuel Tank Capacity	19.0 L
Starter	Electric
Final Drive	Chain
Ignition	Electronic ignition (transistorized)
Engine Type	4-stroke, liquid-cooled, DOHC
Ground Clearance	135 mm
