Brother PR655 Service Manual

3 - 5
Operation panel
Main unit

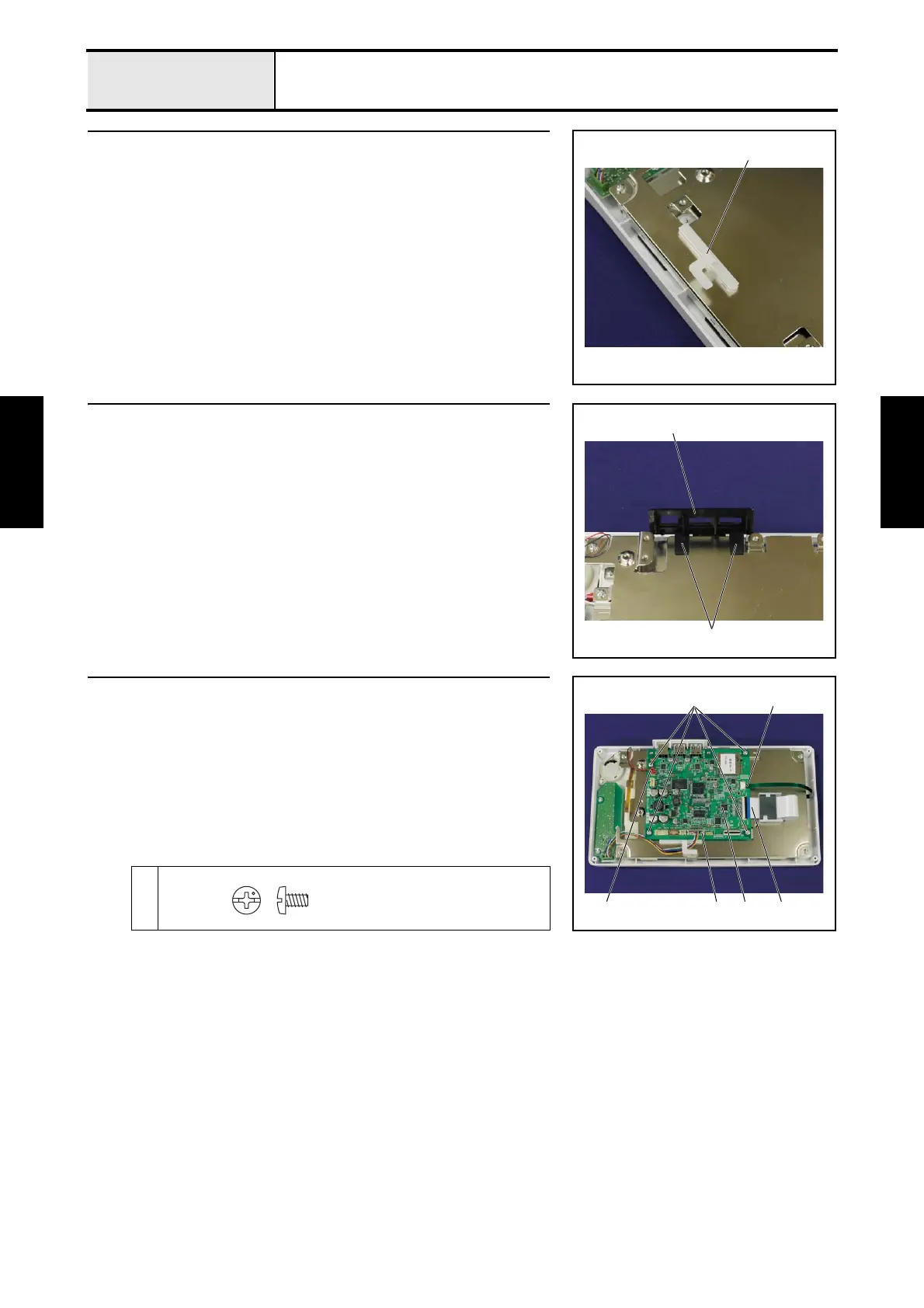

Assembly Assembly
5 Board supporter attachment
1. Attach the board supporter 1 to the positioning part of the PCB base plate.
1
6 USB cover attachment
1. Attach the USB cover 1 to the positioning part of the PCB base plate, and
then hang the 2 hooks 2.
1
2
7 Panel PCB assy attachment
1. Attach the panel PCB assy 1 to the PCB base plate with the 4 screws 1.
2. Connect the connector 2 and the connector 3 to the panel PCB assy 1.
3. Attach the FFC 4 and the FFC 5 to the panel PCB assy 1.
*Key point
• Refer to “Special Instructions of Wiring”.
1
1 5
3 412
Screw, Bind
M3X5
