Brother PR655 Service Manual

3 - 33

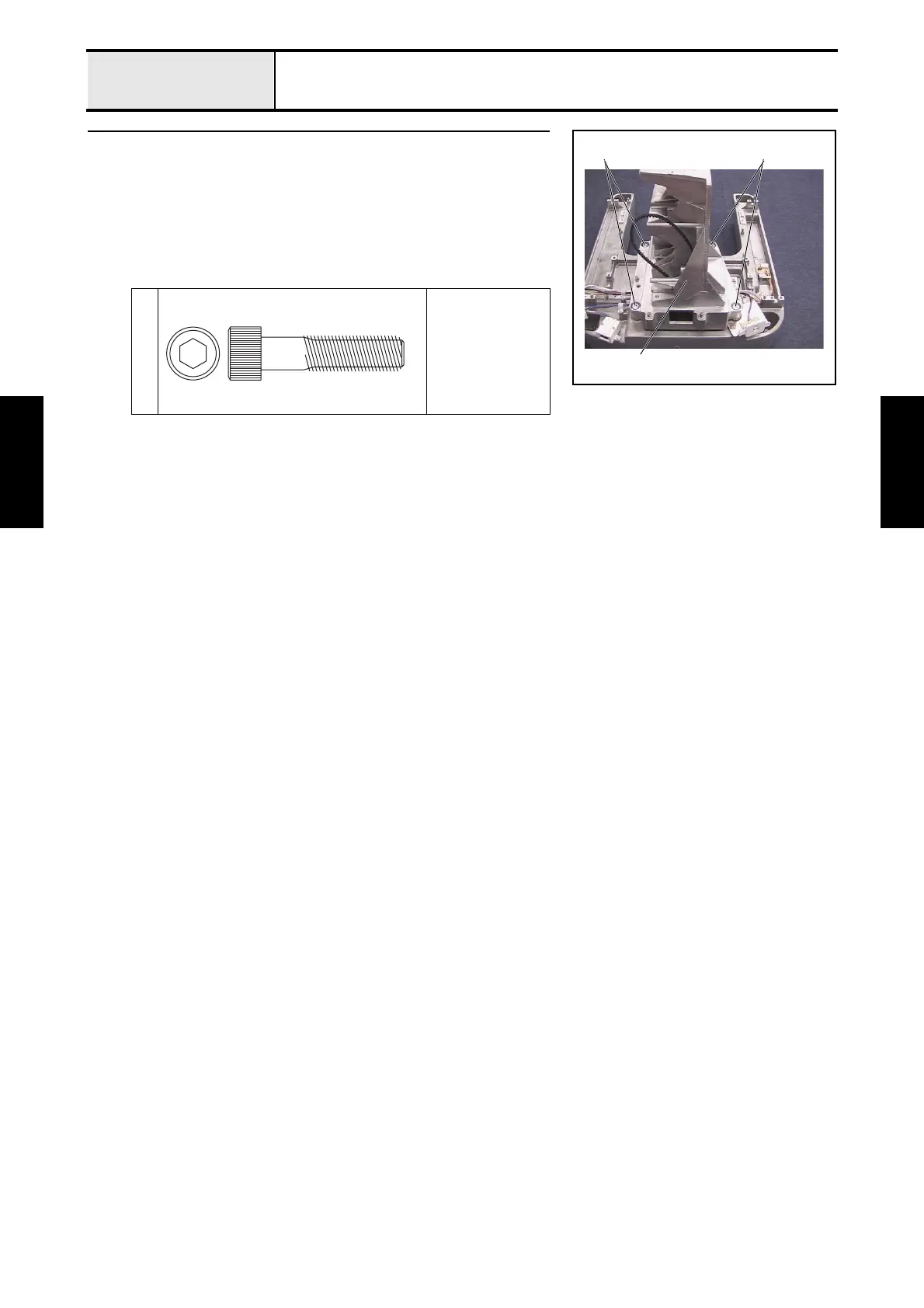

Main unit
Lower shaft unit
Assembly Assembly
4 Connection of arm bed and base frame
1. Attach the arm bed 1 to the base frame, and temporarily tighten the 4
screws 1 and 4 plain washers M8.
2. Align the arm bed 1 with the marking on the base frame, and firmly
tighten the 4 screws 1.
*Key point
• Attach the arm bed so that it is parallel to the base frame.
1
Torque
5.88 N-m
1
1 1
Bolt, Socket M8X35

Brother PR655 Specifications

General

Number of Needles	6
Built-in Designs	25
USB Port	Yes
LCD Display	Yes
Type	Embroidery Machine
Built-in Fonts	28
Maximum Speed	1000 stitches per minute
Embroidery Area	300mm x 200mm
