Brother PR655 Service Manual

3 - 52
Needle bar unit
Main unit
Assembly Assembly

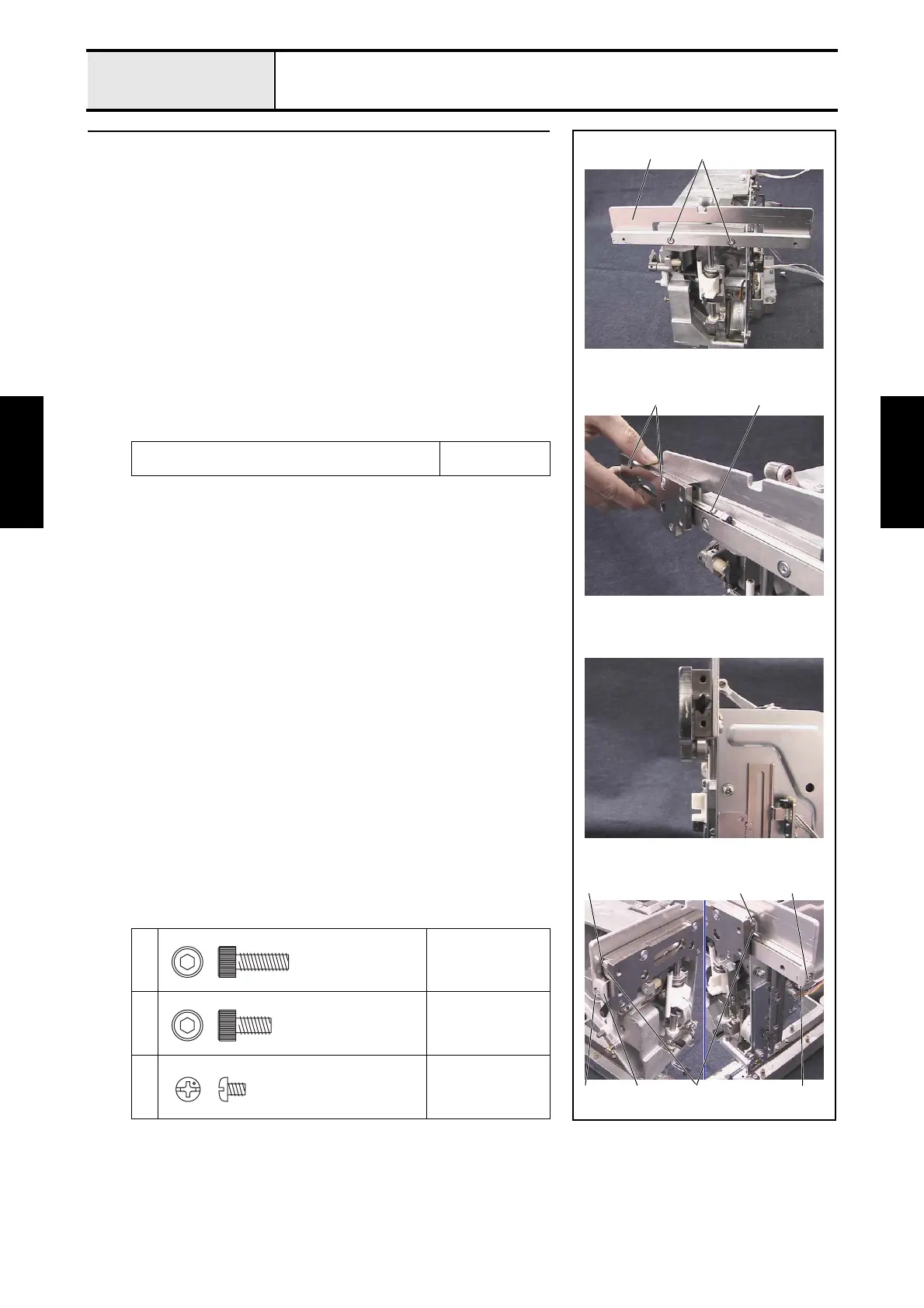

3 Case bracket assembly attachment
1. Attach the case guide UL assembly 1 to the arm bed with the 2 screws 1.
2. Apply MOLYKOTE EM - 30L to the slide roller 2 (4 locations).
3. Place the slide roller 2 in the V groove on the case bracket assembly, slide
the case bracket assembly horizontally to attach it to the case guide UL
assembly 1, and then firmly tighten the 2 screws 2 of the case bracket
assembly.
*Key point
• Adjust the attachment position of the case bracket assembly
vertically so that the clearance between the 2 ball bearings
694 of the case bracket assembly and the case guide UL
assembly is zero.
4. Attach the 2 slide roller stoppers 3 to both ends of case guide US with the
2 screws 3.
5. Attach the 2 case guide UL lids 4 to both ends of the case guide UL
assembly with the 2 screws 4.
Apply MOLYKOTE EM-30L to the 4 slide rollers.
Size of a grain of
rice
1
Torque
1.18 — 1.57 N-m
2
Torque
1.18 — 1.57 N-m
3
4
Torque
0.59 — 0.78 N-m
1
3
4 3
1
2 2
44
43
Bolt, Socket
M4X12
Bolt, Socket
M4X8
Screw, Pan
M3X4

Brother PR655 Specifications

General

Number of Needles	6
Built-in Designs	25
USB Port	Yes
LCD Display	Yes
Type	Embroidery Machine
Built-in Fonts	28
Maximum Speed	1000 stitches per minute
Embroidery Area	300mm x 200mm
