Brother PR655 Service Manual

2 - 66
Thread cut unit
Main unit
Disassembly Disassembly

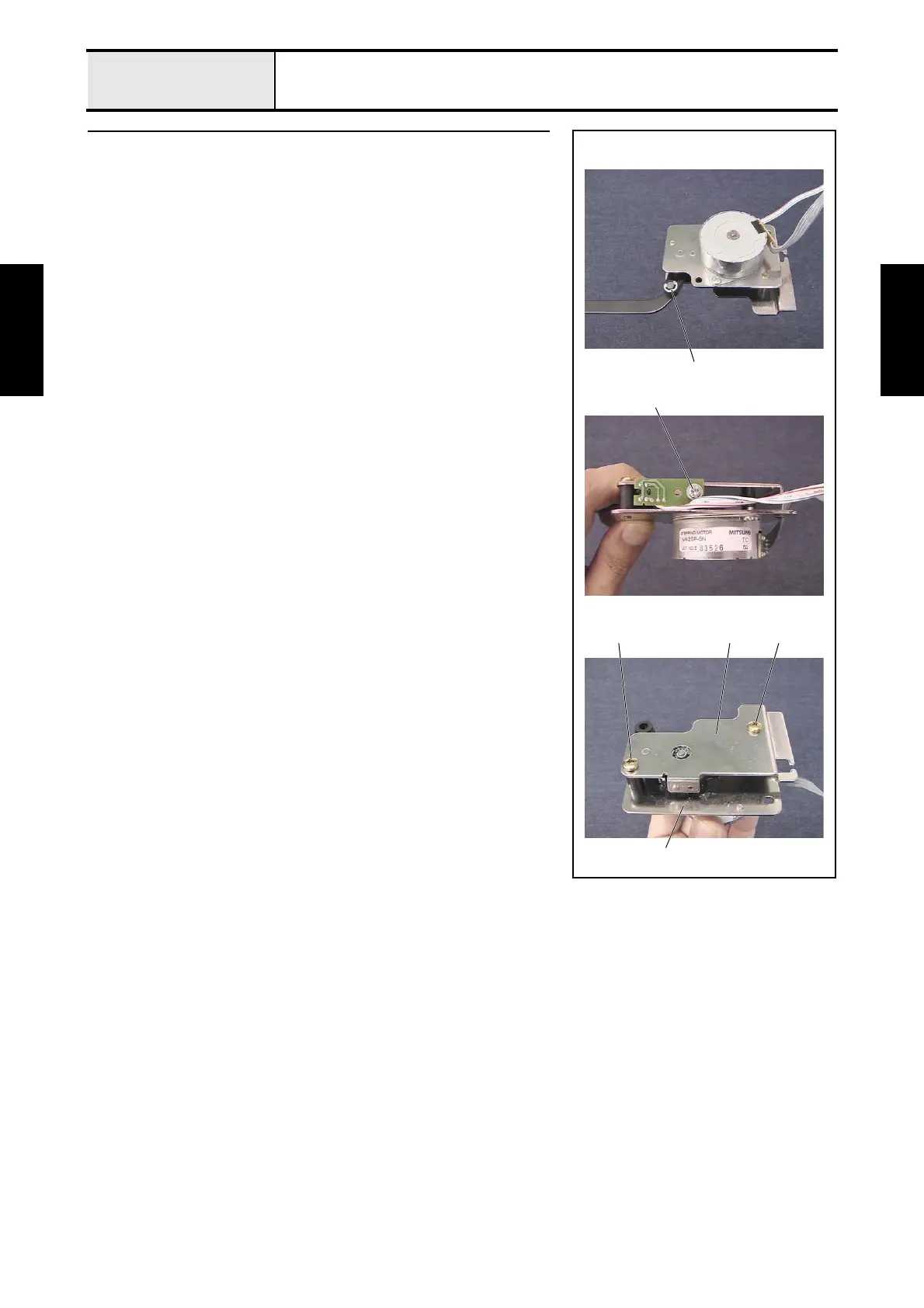

2 Cutter unit disassembly (Step 1)
1. Remove the retaining ring E2, and then remove the lever link assembly.
2. Remove the screw 1, and then remove the thread cutter sensor assembly
(white).
3. Remove the 2 screws 2, separate the cutter bracket 1 from the CT motor
bracket assembly 2, and then remove the 2 collars.
1
Retaining ring E2
1
2 2
2
