Brother PR655 - Case Bracket Disassembly

2 - 47
Needle bar unit
Main unit
Disassembly Disassembly

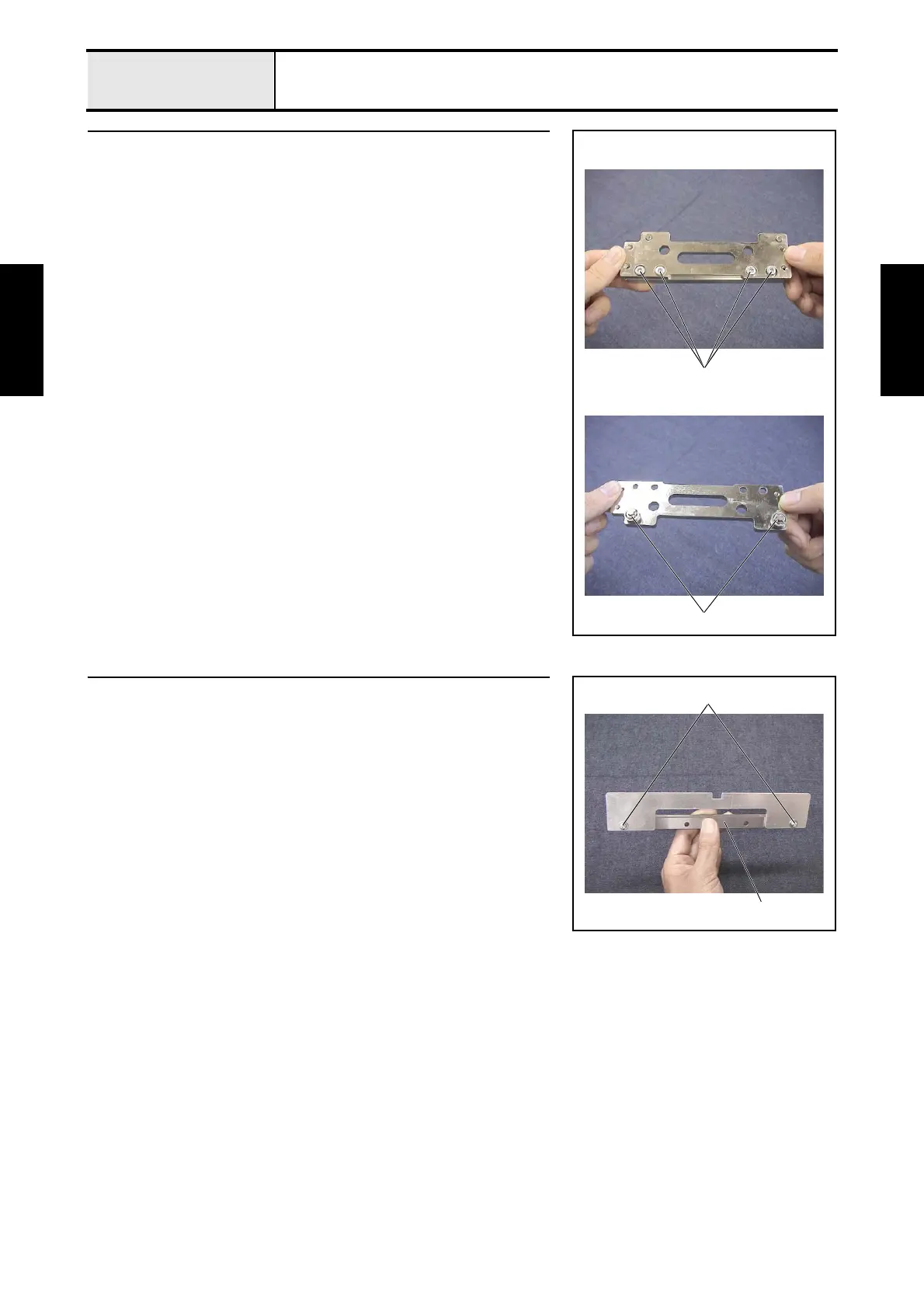

14 Case bracket disassembly
1. Remove the 4 screws 1, and then remove the case guide US and the case
bracket assembly.
2. Remove the 2 retaining rings E3, and then remove the 2 ball bearings (694)
from the case bracket assembly.
1
Retaining ring E3
15 Case guide UL disassembly
1. Remove the 2 screws 1, and then remove the case guide UL 1 and the
thread take-up guide.
1
1
